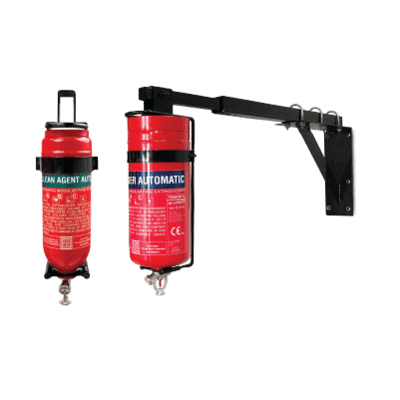

The Ceasefire Automatic M Series 1kg wall mounted extinguisher (CF-001411C) is a self-actuating fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12). It is fitted with a sprinkler-type discharge head with a 79°C quartzoid glass bulb and a non-return valve, so it detects a fire and discharges automatically with no power supply or human intervention.
It is designed to give 24/7 automatic protection to spaces where people are rarely present and manual fire detection and firefighting is a challenge, such as engine areas and boats. The wall mounting bracket means it takes up no floor space, and FK leaves no residue, so it is safe on electronic equipment.
Key features
- Automatic thermal actuation via a 79°C quartzoid bulb
- Clean agent Fluoroketone (FK-5-1-12): no residue, safe on electronics
- Global Warming Potential of less than 1 and zero Ozone Depletion Potential; outside the scope of the F-Gas Regulations
- Built-in pressure port: can be made monitorable with an optional pressure switch connected to a fire alarm panel, BMS or standalone sounder/beacon
- Can be electrically actuated with optional Metron actuators and linked to detectors and a control panel as part of a total flooding system
- Pressure gauge that can be tested on site with a special magnet
- Secure wall mounting bracket; retrofittable with minimal structural changes
- 5 year manufacturer's warranty
Technical specifications
-
Product code: CF-001411C
-
Agent: Fluoroketone (FK-5-1-12), stored pressure
-
Net contents: Approx. 1kg
-
Gross weight: Approx. 1.85kg
-
Height: Approx. 370mm
-
Shell diameter: 86mm
-
Actuation temperature: 79°C (+/-4°C)
-
Single volume coverage: 0.79m³ minimum to 1.4m³ maximum
-
Working pressure: 10 bar
-
Test pressure: 30 bar
-
Body thickness: 1.4mm mild steel
-
Operating temperature: -30°C to +60°C
-
Certification: PED, UKCA-PED, CE
