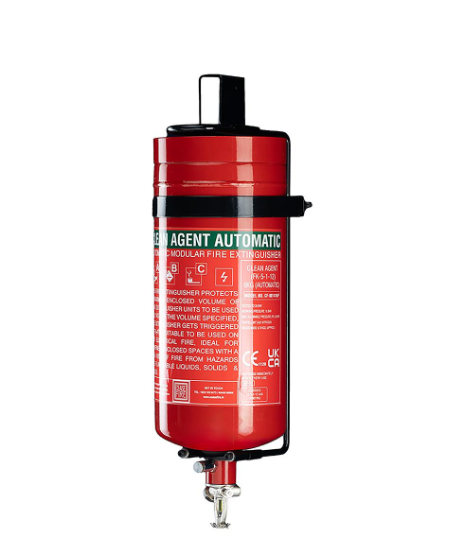

Ceasefire Automatic Clean Agent Fire Extinguisher, Wall Mounted, 6kg (CF-001416C)

The Ceasefire CF-001416C is a 6kg wall mounted automatic extinguisher from the M-Series range, filled with the clean agent Fluoroketone (FK-5-1-12) in a red mild steel cylinder. It is fitted with a sprinkler-style discharge head with a 79°C quartzoid bulb and a non-return valve (NRV). When the bulb reaches its rated temperature it breaks and the agent discharges automatically, with no power supply or human intervention needed.

M-Series units can also be actuated electrically by adding a Metron actuator and connecting them to detectors via a control panel, so several units can work together as a total flooding system. A pressure port allows the unit to be made monitorable with an optional pressure switch.

Key features

• Automatic thermal actuation via a 79°C quartzoid bulb
• Optional electrical actuation with a Metron actuator
• Pressure port for optional pressure switch monitoring
• Clean agent: no residue, safe on electronic equipment
• Fluoroketone has a GWP of less than 1, zero ODP, and is outside the scope of the F-Gas Regulations
• Supplied with a mounting bracket for direct wall installation
• 5 year warranty

Technical specifications

• Product code: CF-001416C
• Agent: Fluoroketone (FK-5-1-12), stored pressure
• Net contents: 6kg
• Gross weight: Approx. 8.75kg
• Height: Approx. 538mm
• Shell diameter: 160mm
• Actuation temperature: 79°C ±4°C
• Discharge fitting: Sprinkler with quartzoid bulb head
• Minimum discharge time: 3 seconds
• Single volume coverage: 4.74m³ minimum, 8.5m³ maximum
• Concentration at maximum volume: 4.5% (v/kg)
• Working pressure: 10 bar
• Hydrostatic test pressure: 30 bar
• Body thickness: 1.4mm
• Operating temperature: -30°C to +60°C
• Certification: PED, UKCA-PED, CE marked
