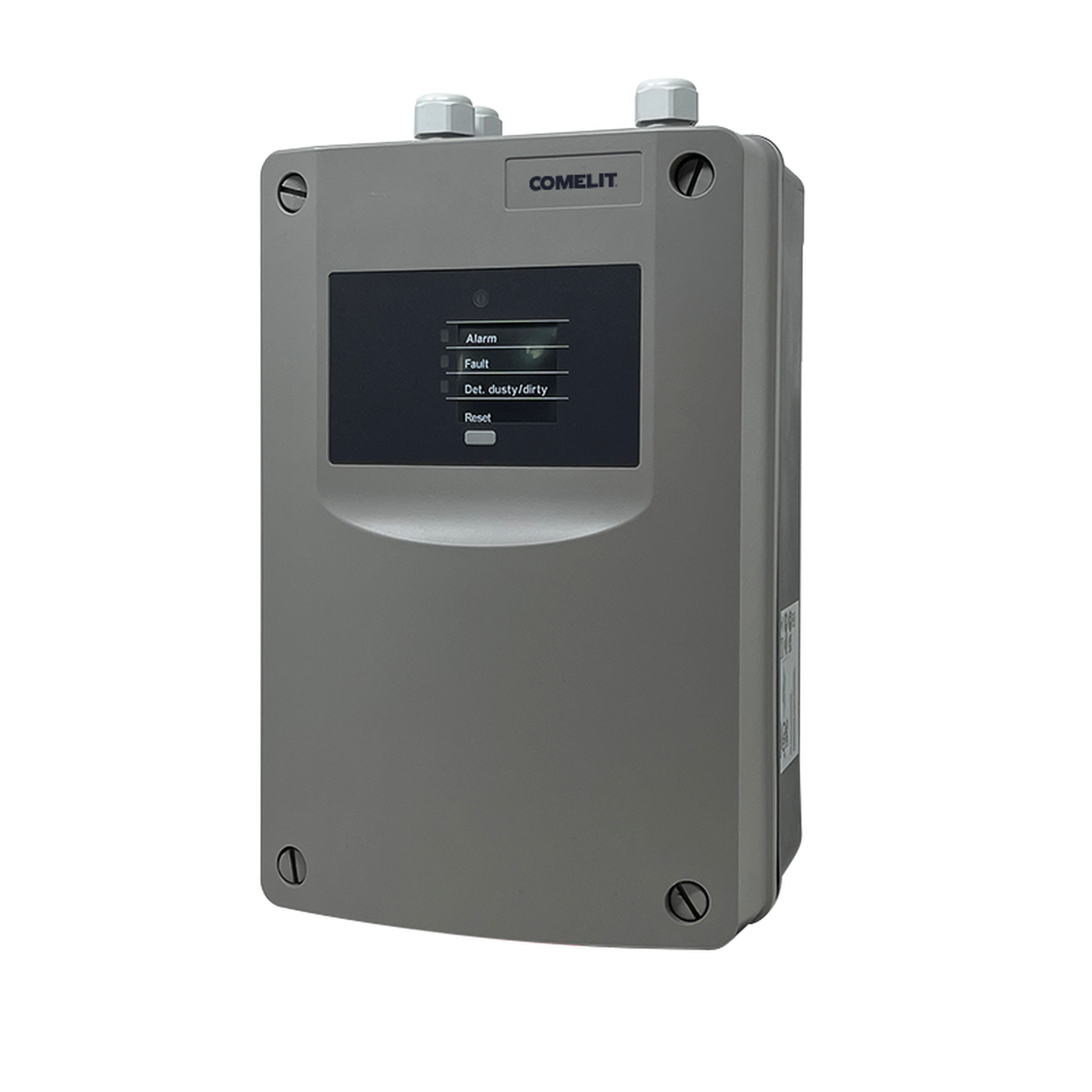

1-channel aspirating system equipped with a detector, designed for small-sized applications with sensitivity, configuration and very early alarm detection requirements, such as: DPCs, storage rooms, sterile environments, areas with dual flooring, lift / goods lift shafts, electrical and distribution panels, etc. Complete with high sensitivity smoke detector, filter, suction device and flow monitoring system. Commissioning and configuration are carried out on the device itself, without the use of additional software, using rotary selectors and DIP switches. For pipework planning, the PipeFlow software offers optimised design for any type of installation. LED interface for instant status indication. 2 relay outputs (Alarm, Fault). 2 OC outputs (Alarm, Fault). Internal log memory capacity up to 1000 events. Capacity of the internal log memory up to 1000 events. Memory card housing included (SD Card not provided) to record up to 640,000 events. Rapid installation with the option of inverting the position of the machine (straight up/upside-down). Power supply 24 Vdc, with the option of a second redundant power supply. Absorption in alarm status 80 mA (@24VDC). Maximum permitted length of the pipe network 75 m with branches. Class A (6 holes), class B (8 holes), class C (12 holes). IP54 protection rating. Operating temperature -10 +55°C. Certified according to EN54-20. Vds, UL and FM certification.
