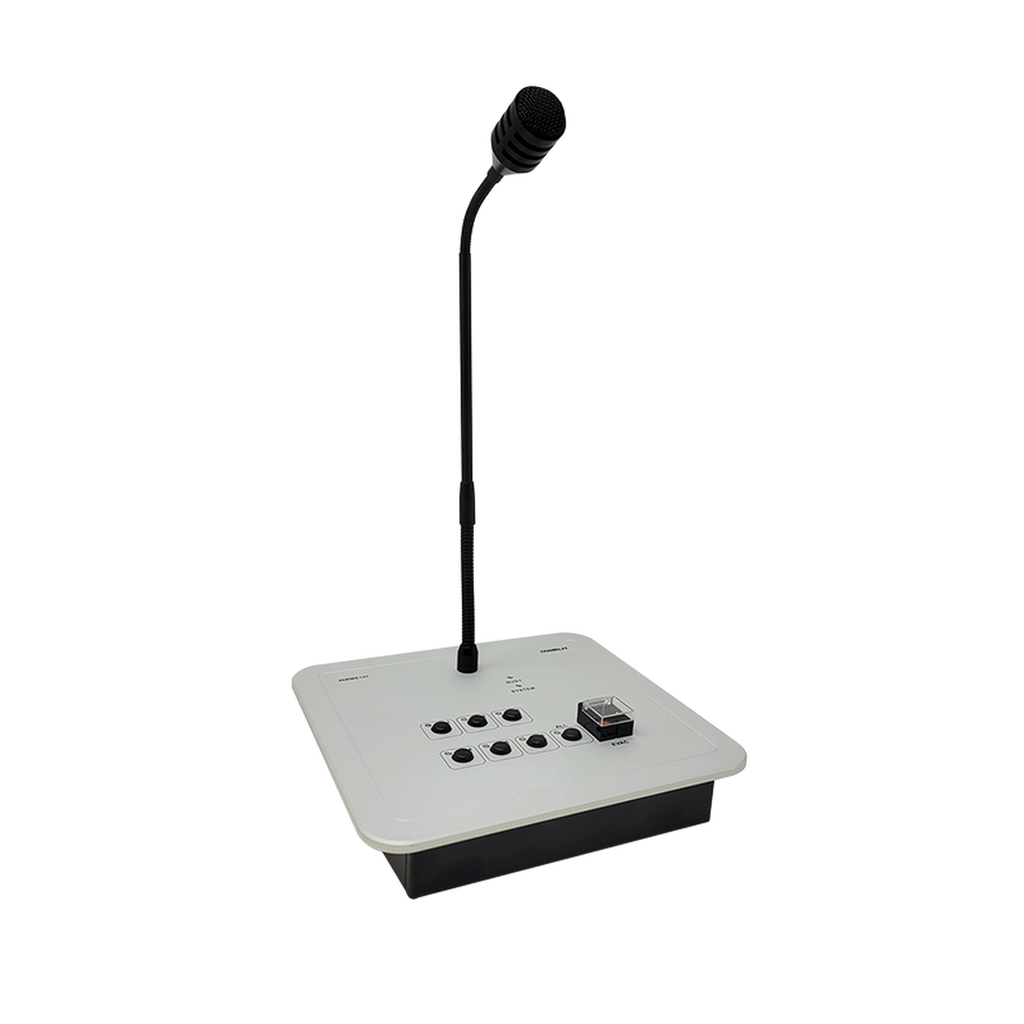

Emergency microphone base station with 7 keys (1 to 6 + ALL) plus red "TALK" key for "live" emergency communications and the transmission of prerecorded messages (Evac, Alert). It can work over the entire control panel/system or over specific zones selected through control panel programming on the LogiVox panel display. For connection to the BUS EMG (emergency) on the control panel, base 49BME107 has 2 RJ45 ports on the rear for cascade connection (in/out) to other service stations, even if they are different models. Up to 2 stations can be connected to the BUS EMG. Extremely durable base with matt black painted steel bottom panel and anodised aluminium top, equipped with a gooseneck microphone and 2 “BUSY” and “SYSTEM” LEDs positioned at the front for line status viewing purposes; the “Talk” button is protected by a plastic door to prevent unwanted activations, as with all stations used for this purpose. Volume and tone control for each individual base can be programmed via the control panel. Addressing takes place through programming via DIP-SWITCH; access to the switches is protected by a metal door. The base is powered by the system and does not require an external power supply, as specified by the reference standard. RJ45 patch cable, length 3 m, supplied. Certification in accordance with standard EN54-16.
