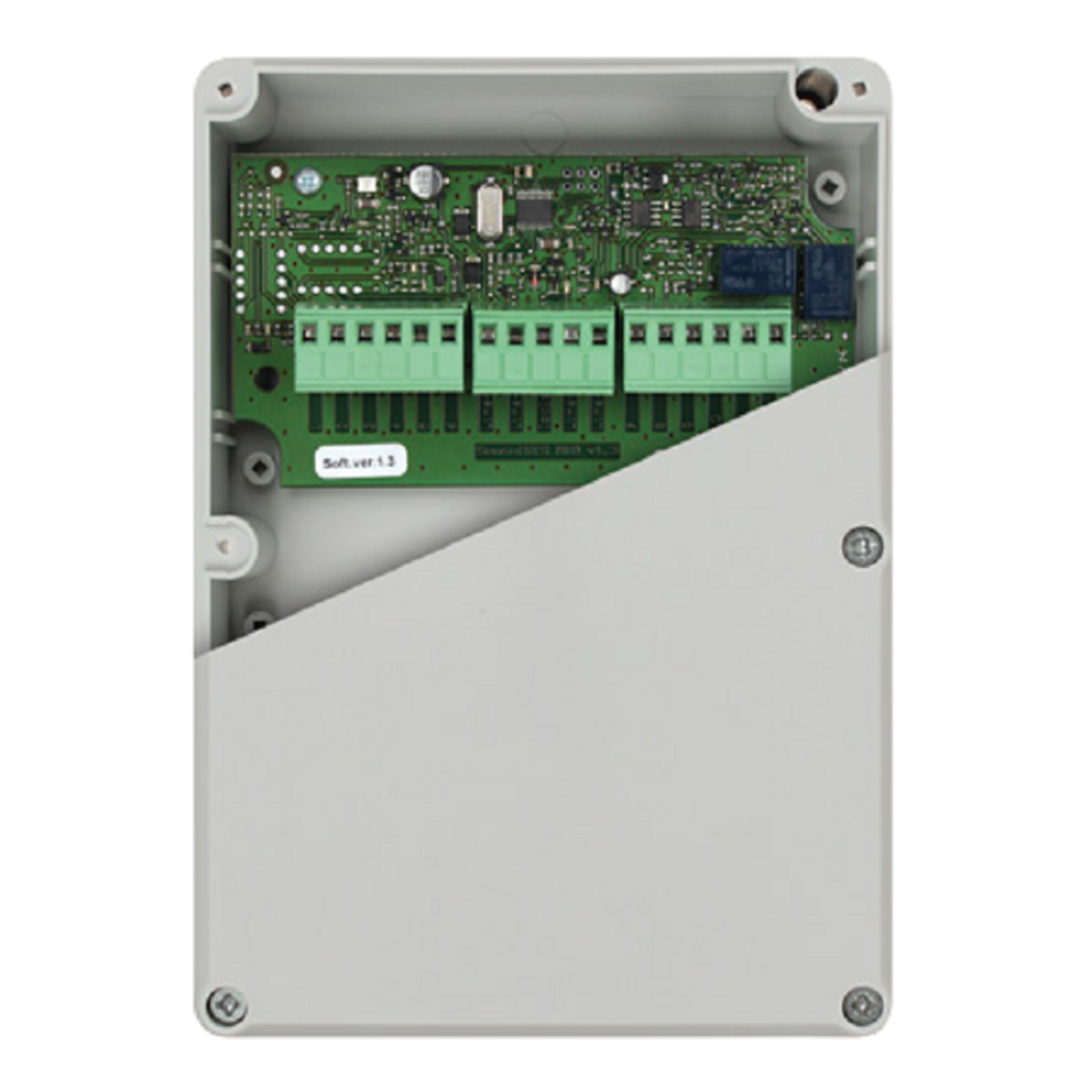

Addressed module 41IOM004XL, with integrated on-board isolator, controls four relay outputs. It is powered from the loop and is controlled by the control panel by means of the communication protocol. This module is supplied in a plastic container suitable for surface mounting, with increased dimensions to make input and output wiring easier. Box dimensions (mm) 178 x 128 x 58. IP55 protection rating. Approved to EN 54-17 and EN 54-18
