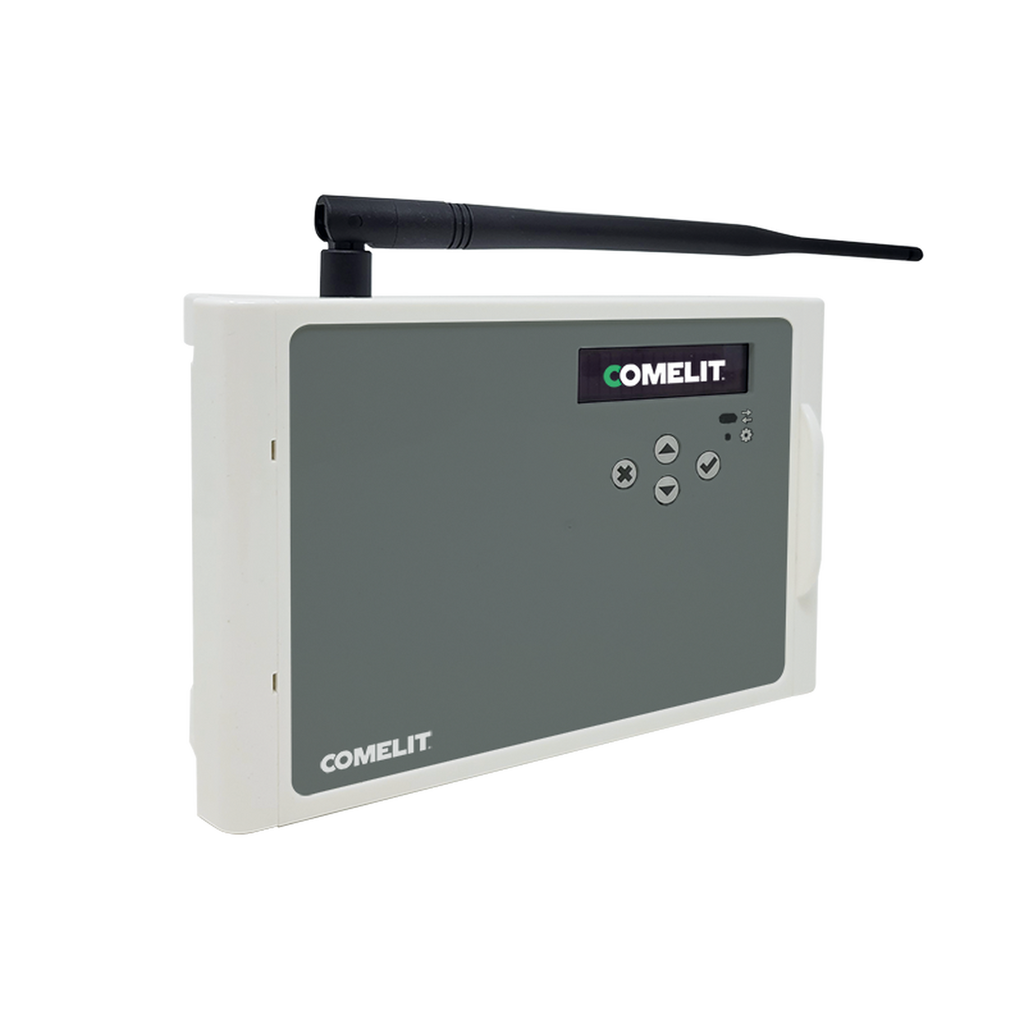

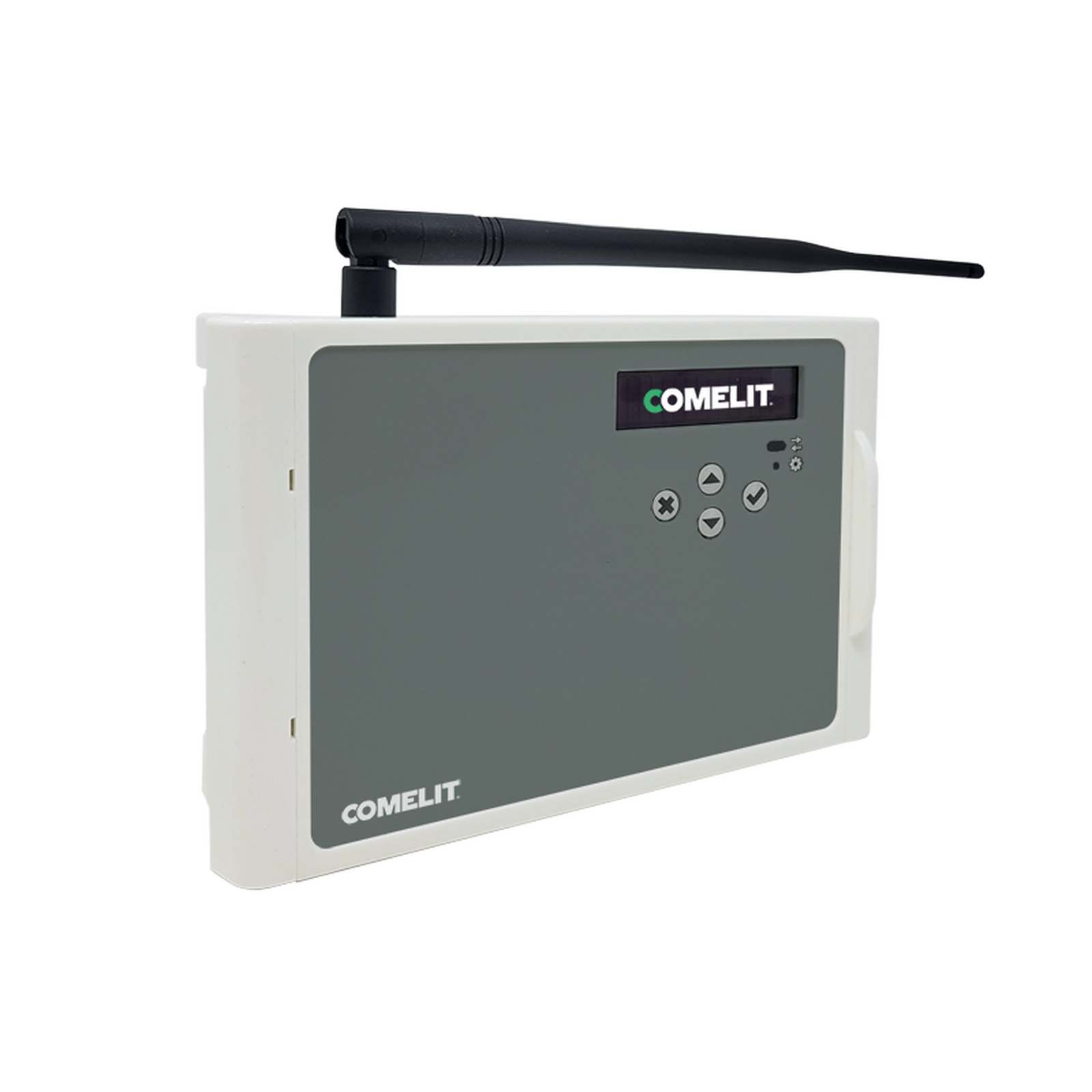

Addressable wireless expansion module designed for operation with Comelit addressable wireless fire panel 41CPE118. The module is powered directly by the Loop line without the need for additional power supplies and is monitored using proprietary protocol. Two-way radio communication with connected wireless devices, which are automatically recognised by the fire panel. Up to 32 devices can be enrolled on a specific module to form a linear network. Up to 5 45TRA100 expansion modules can be connected to a single Logifire 41CPE118 panel. Information on the status of enrolled wireless devices is shown on its LCD display and also reported in the addressable panel menu. Communication distance between expander and devices (in open space) over 1000 m. Equipped with dipole omnidirectional antenna with SMA connector which guarantees broad coverage and stable communication with enrolled wireless devices. 45TRA100 is housed in a plastic container suitable for wall mounting, and has a built-in isolator. It has 6 different frequency channel pairings and AFA (automatic frequency adaptation) option for automatically searching for the best radio channel for each situation. Power supply 17-30 Vdc. Operating temperature -10°C / +55°C. Dimensions (LxHxD) 191x125x60 mm. Material: ABS. IP40 protection rating. Approved to EN 54-17, EN54-18 and EN 54-25.
