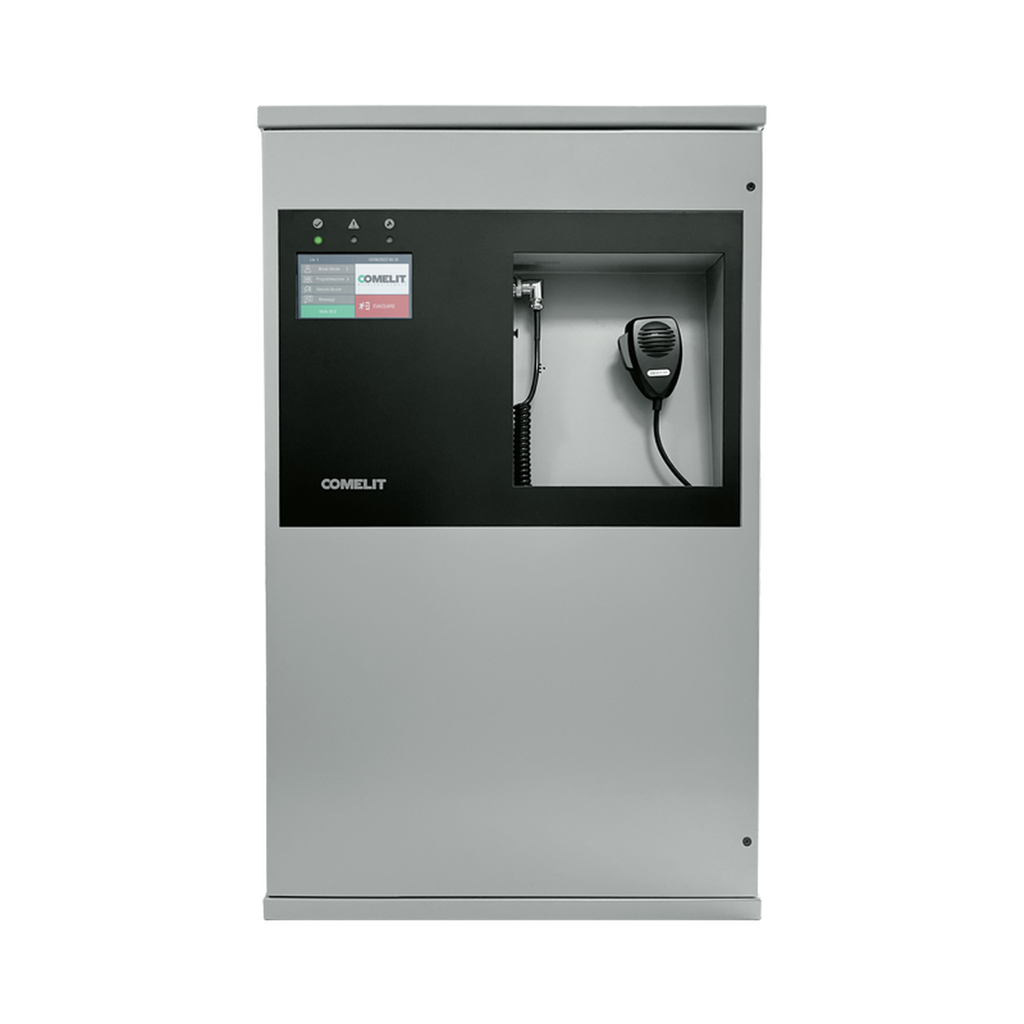

LogiVox series compact voice evacuation system model 49CCO106, capable of managing 6 voice alarm zones with a maximum total power of 500 W over a dual A/B line, which can be distributed freely across the different zones. Option of connecting up to 6 control panels together in link mode, or 6 LogiVox panels plus 1 Comelit LogiFire addressable control panel. On the front, the control panel has a 4.3” touchscreen display which recreates the same user interface as used in LogiFire systems, hand-held PTT microphone included for on-site transmission of messages, plus 2 USB ports located inside the recess for music playback. 8 freely configurable supervised input contacts for playback of messages such as evacuation, alert, commercials, alarm terminated messages, etc. 2 AUX inputs for playback of external audio sources and 1 balanced analogue audio with priority contact for PABX or pre-amplified microphone bases. It has 3 freely configurable relay outputs and 1 x 0 dB audio signal for connection to high-fidelity systems. All LogiVox control panels permit to equalise the signal for each audio source and for the 4 and 6 zone panels allow independent volume control for each individual zone. Control panel 49CCO106 features automatic switching in the event of a power amplifier fault, thereby avoiding wasted manual wiring. Designed for easy installation, it has a metal (hook-on) backplate for wall application or RACK mounting using optional item 49BRM100. Option of connecting up to 17 microphone stations (emergency and service) split over the 3 different BUS lines available in the control panel. Dimensions (L x H x D): 430x710x280 mm. Certified according to standards EN54-16 and EN54-4.
