Comelit Expander 1-4 Loop (1 Loop Included) Boxed with PSU
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
The expansion box 41CPE104 for LOGIFIRE series control panel 41CPE118 is supplied as standard with 1 Loop, which can be expanded to 4 using 3 x 41ECL220 boards. Up to 250 addressed devices (detectors, buttons, I/O modules, sirens etc.) can...
Frequently bought together
Product details

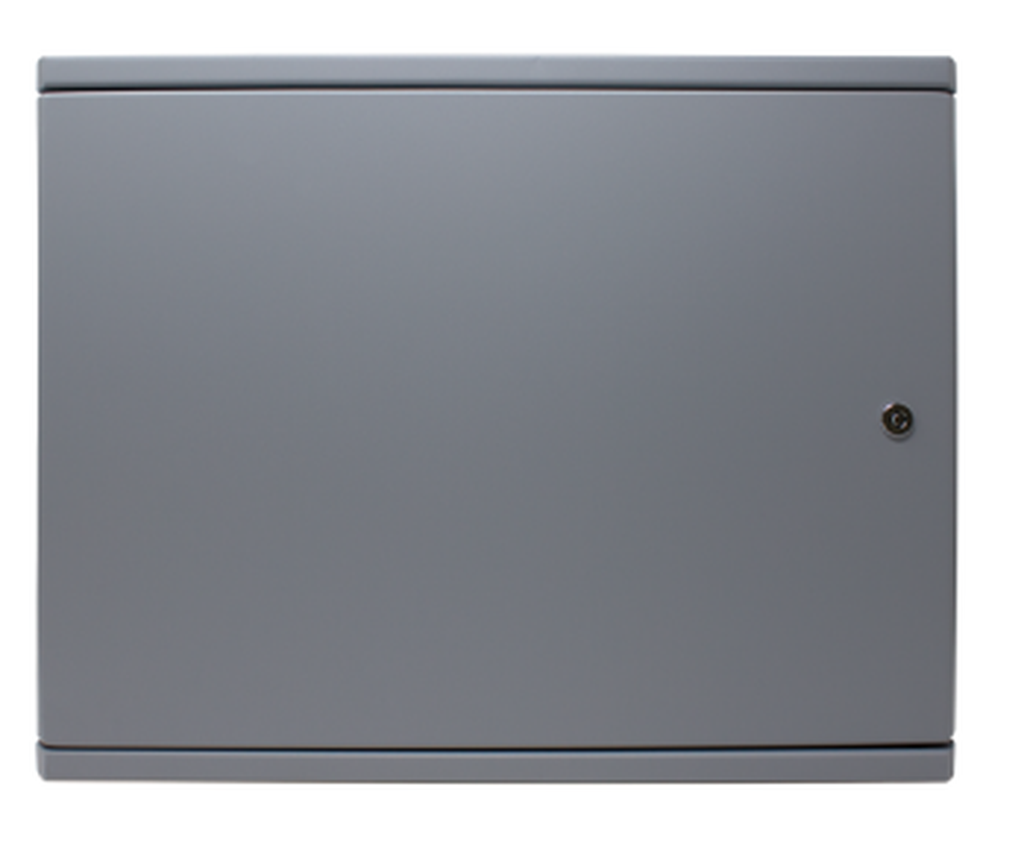

The expansion box 41CPE104 for LOGIFIRE series control panel 41CPE118 is supplied as standard with 1 Loop, which can be expanded to 4 using 3 x 41ECL220 boards. Up to 250 addressed devices (detectors, buttons, I/O modules, sirens etc.) can be connected to each loop. When this is used, the 41CPE118 control panel can reach its maximum expansion, reaching a total of 8 Loops. It has a strong metal container (430x330x150 mm) with the same dimensions as the fire panel and all other Comelit LOGIFIRE series boxes, so as to guarantee optimum modularity and pairing during installation. Has a 14A power supply unit with 12 V output for battery (12 V / 18 Ah batt.). EN54-2, EN54-4 and EN54-13 certified.
Datasheet
Comelit Expander 1-4 Loop (1 Loop Included) Boxed with PSU Need the datasheet? Our team will email it to you. Request datasheet
