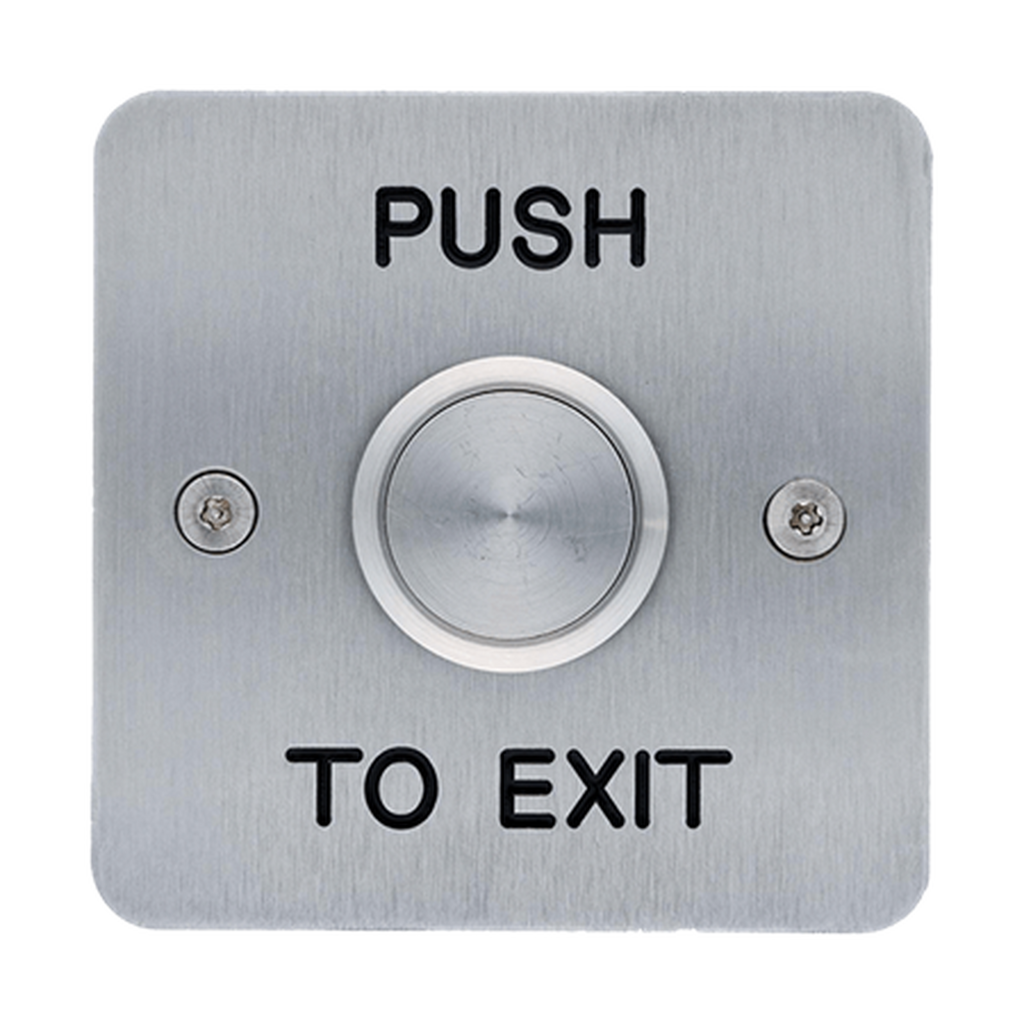

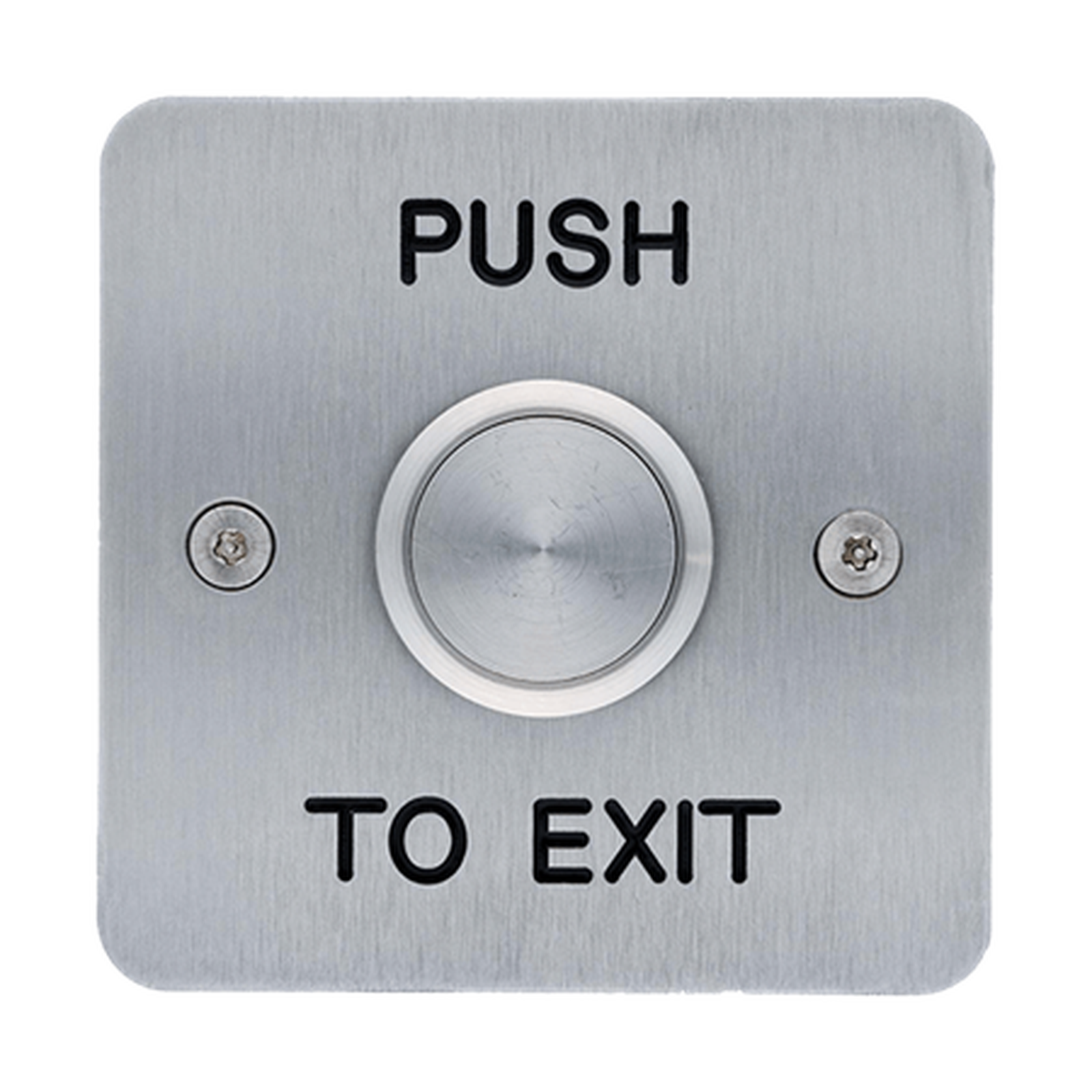

The Comelit GDX EXDPB-002 is a single-gang stainless steel push-to-exit button with a 25 mm vandal-resistant button, for Comelit-PAC GDX door entry and PAC access control installations. It lets users unlock a secured door from the inside without presenting a credential, and fits a standard single-gang back box. It is engraved "Push To Exit" and rated IP66 for indoor or outdoor use.
Key features
- 25 mm stainless steel vandal-resistant push button
- 2.5 mm stainless steel plate, flush mounting on a standard single-gang back box
- Engraved "Push To Exit"
- Double-pole changeover switch, connected by standard fly leads
- IP66 for indoor/outdoor use
Technical specifications
- Part number: EXDPB-002
- Recommended cabling: 6-core 24 AWG alarm cable (unscreened)
- Power input: 12 V DC
- Switching: 125 V AC max. at 5 A; 250 V AC max. at 3 A
- Dimensions: 85 x 85 x 45 mm (W x H x D)
- Weight: 0.15 kg
- Housing: 2.5 mm stainless steel
- Operating temperature: -25 °C to +85 °C
- Environment: IP66
- Standards: UKCA, CE, RoHS, REACH, WEEE; DIN EN 61058-1; UL 1054; IEC/UL 62368-1
- Warranty: 1 year against electronic failure
