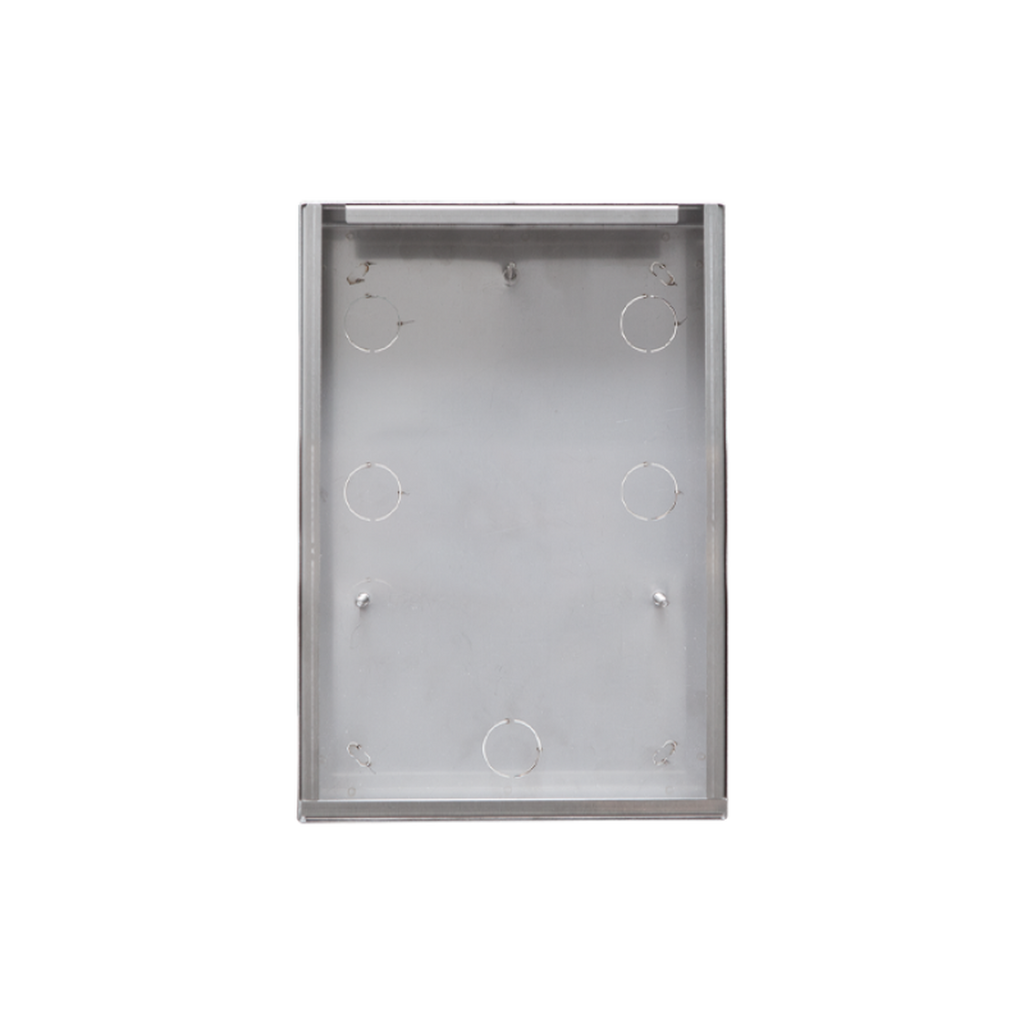

The Comelit IX9161 is a stainless steel surface-mounted housing for Comelit Switch/SteelSwitch entrance panels with 5 to 8 buttons (panels IX0105, IX0106, IX0107, IX0108). It lets these vandal-resistant push-button panels be mounted on the wall surface, and suits Simplebus and ViP door entry systems.
Key features
- Surface-mounted housing for 5 to 8-button entrance panels
- Grade AISI 316 stainless steel
- IK08 vandal resistance (with product installed)
- Wall mounted
Technical specifications
- Product code: IX9161
- For entrance panels: IX0105, IX0106, IX0107, IX0108
- Dimensions: 155 x 374 x 83.5 mm (W x H x D)
- Material: stainless steel AISI 316
- Vandal resistance: IK08
- Compatible systems: Simplebus 2 audio/video and audio, Simplebus 1 audio, ViP
