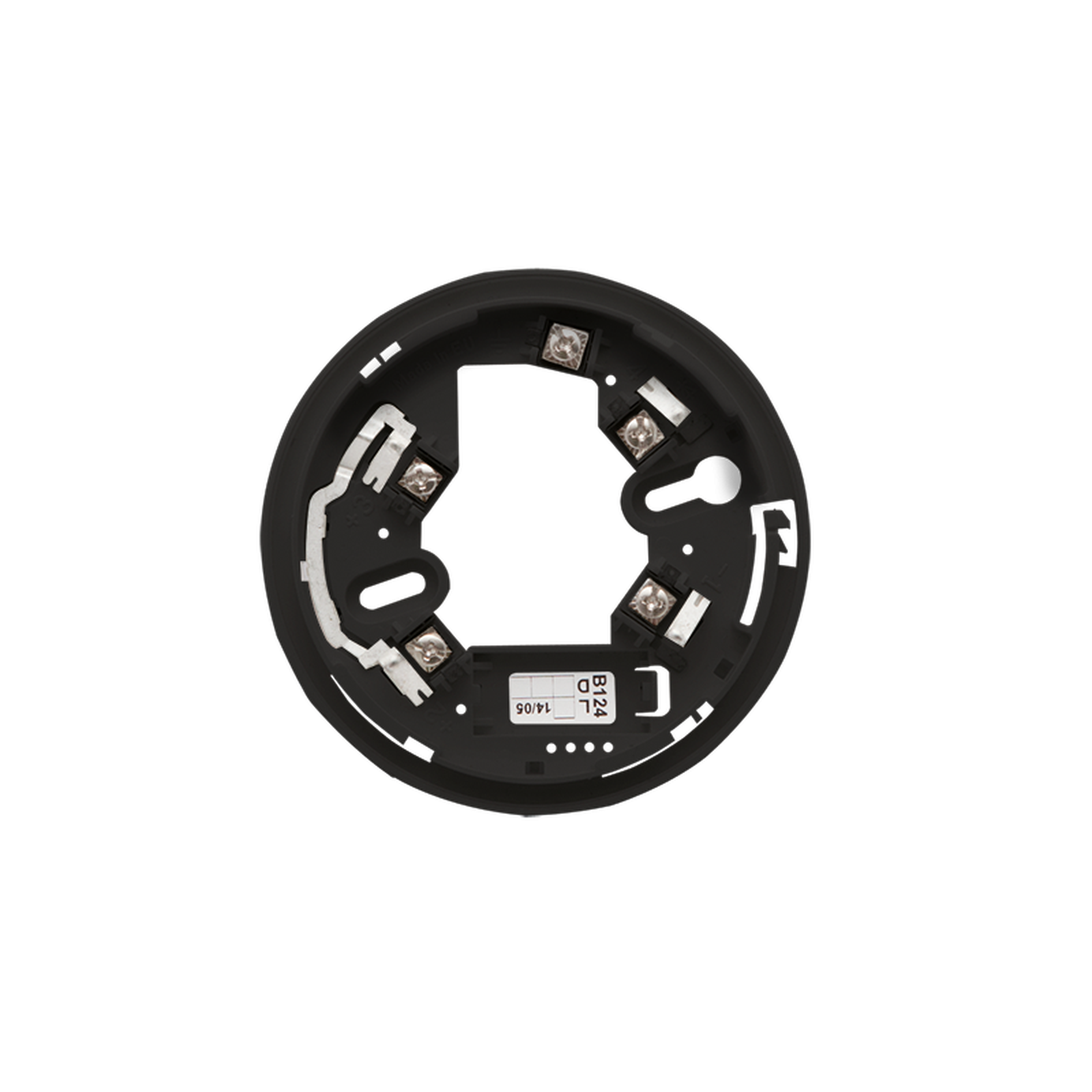

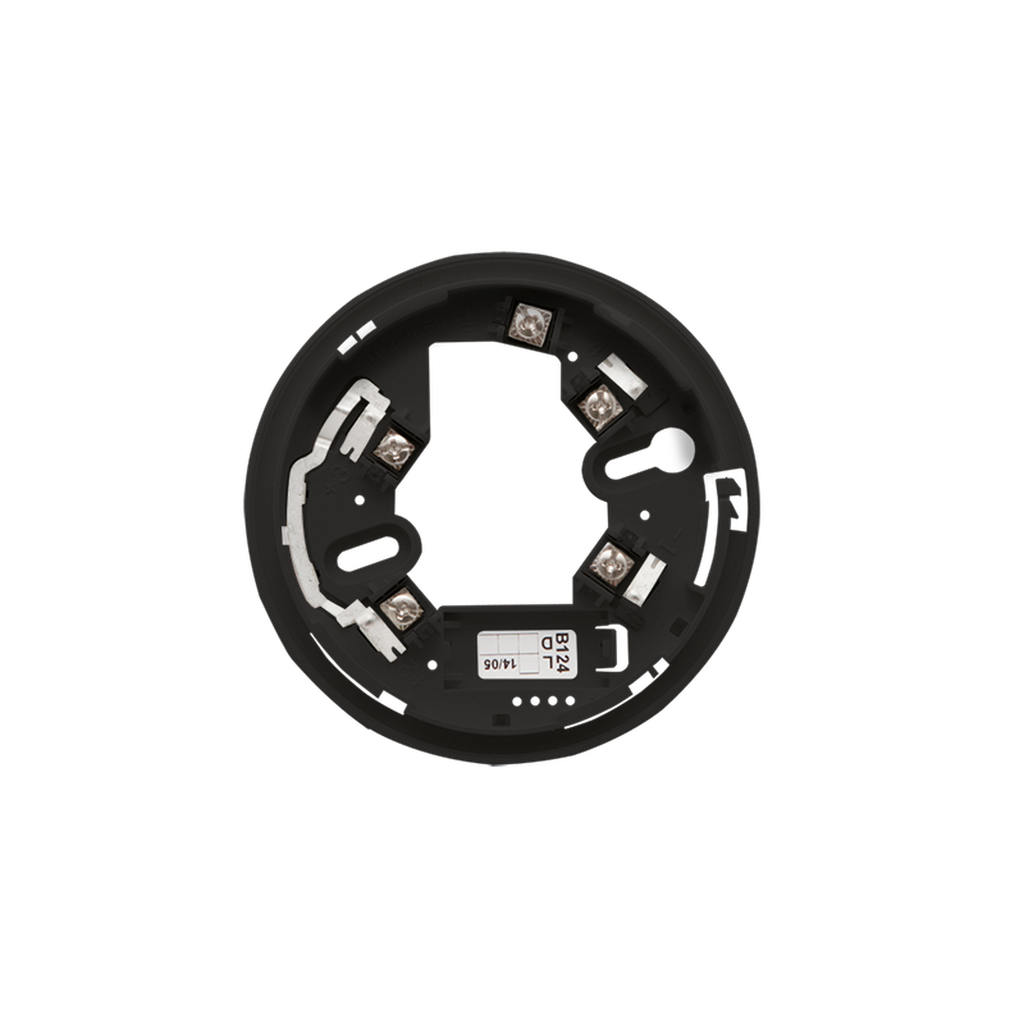

The Comelit 41RBX020B is a black, low-profile standard base for Comelit LogiFire addressable fire detectors and sounders. It has a reliable connection system for the detector head and allows the detector to be safety locked in the base.
Key features
- Low-profile design
- Reliable detector connection with safety locking
- Loop in/out wiring with earth and remote indicator (RI) terminals
- Label area to record the loop number and device address
- Listed compatible detectors: 41RFU100, 41RML100, 41RCS100
- Listed compatible sounders: 41SCI000, 41SAI000
Technical specifications
-
Comelit part code: 41RBX020B
-
Colour: Black
-
Maximum cable cross-section: 3.0 mm²
-
Operating temperature: −10°C to +60°C
-
Operating relative humidity: (93 ± 3)% @ 40°C
-
Dimensions: 103 × 11 mm (outer edge)
-
Weight: 15 g
