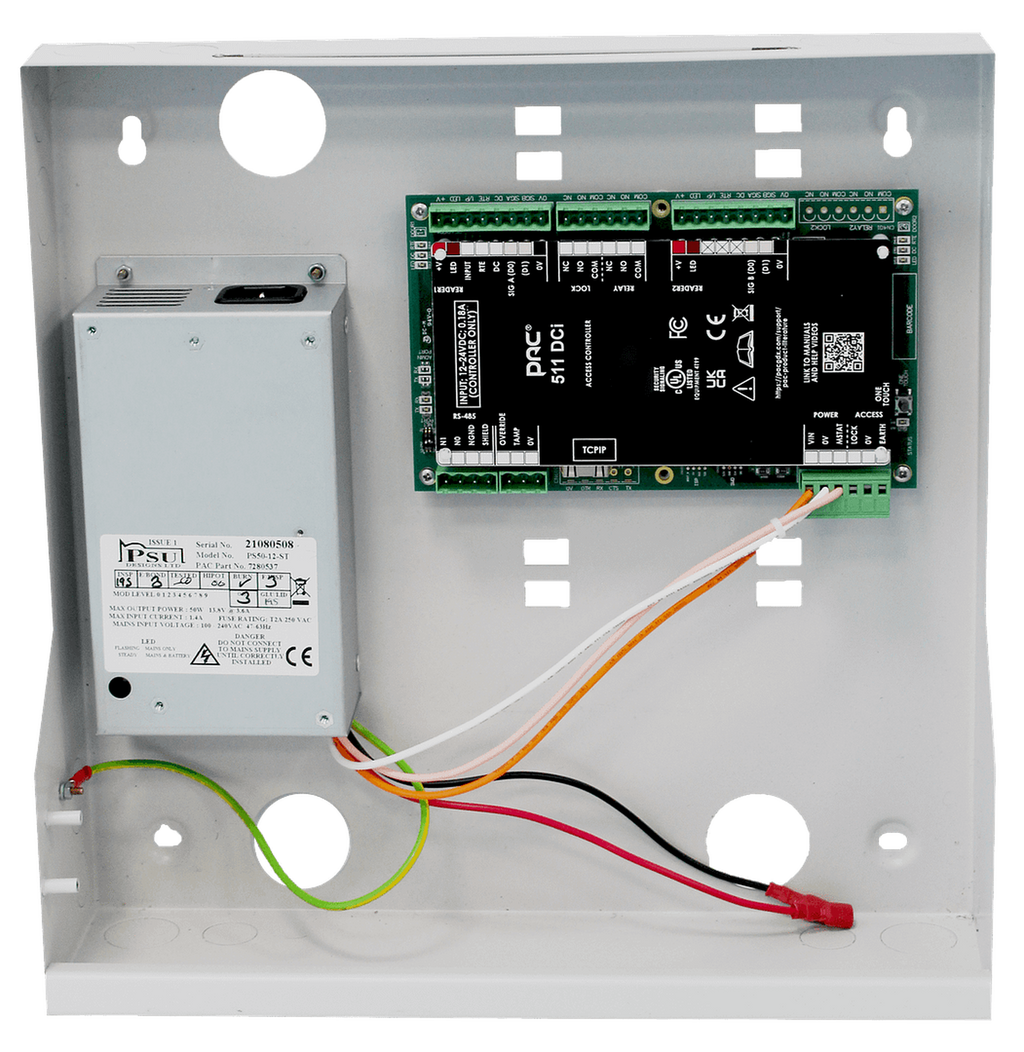

The Comelit PAC 511 DCi (part 909030511) is an intelligent IP access controller for one door, supplied boxed with a pre-wired 3 A power supply in a lockable metal cabinet with a tamper switch. It can be used on its own or as part of a larger networked PAC system managed by PAC Access Central or Easinet Residential software. It stores its own databases, so access control and lift control continue if communication with the management software is lost.
Key features
- Manages one door with up to two readers (PAC or Wiegand) for read-in and read-out
- Up to 20,000 keyholder records and 20,000 events
- Fail-safe and fail-secure lock control
- 3 A thermal fuse protection on the lock relays
- Local anti-passback
- One-Touch test mode
- Supports PAC readers (LF, HF, MT, Architect and biometric) and Wiegand readers
- Lockable metal cabinet with tamper switch and pre-wired PSU
Technical specifications
- Part number: 909030511 (boxed PAC 511 DCi with 3 A PSU)
- Doors supported: 1, with up to 2 access control devices
- ID devices supported: 20,000
- Event storage: 20,000 events
- Supported credentials: PAC, KeyPAC, PAC OPS Lite, PAC OPS, any Wiegand format
- Inputs: tamper, override, TCP/IP (RJ-45), RS-485, 1 per door channel
- Outputs: 1 x 5 A ancillary relay (programmable)
- Distance to input devices: 70 m (reader powered from controller); 500 m (locally powered)
- Recommended cabling: RS-485 Cat 5 UTP or higher; readers 24 AWG / 0.22 mm² security cable or higher
- System power: 12 to 24 V DC; PSU input 100 to 230 VAC, output 13.8 V at 3.3 A
- Dimensions (boxed): 335 x 335 x 90 mm (W x H x D)
- Weight (boxed): 4.4 kg
- Operating temperature: -10 °C to +55 °C
- Operating humidity: 10% to 85% RH
- Standards: UKCA, CE, UL, FCC, IC, RoHS and WEEE
- Warranty: 5 years against electronic failure
