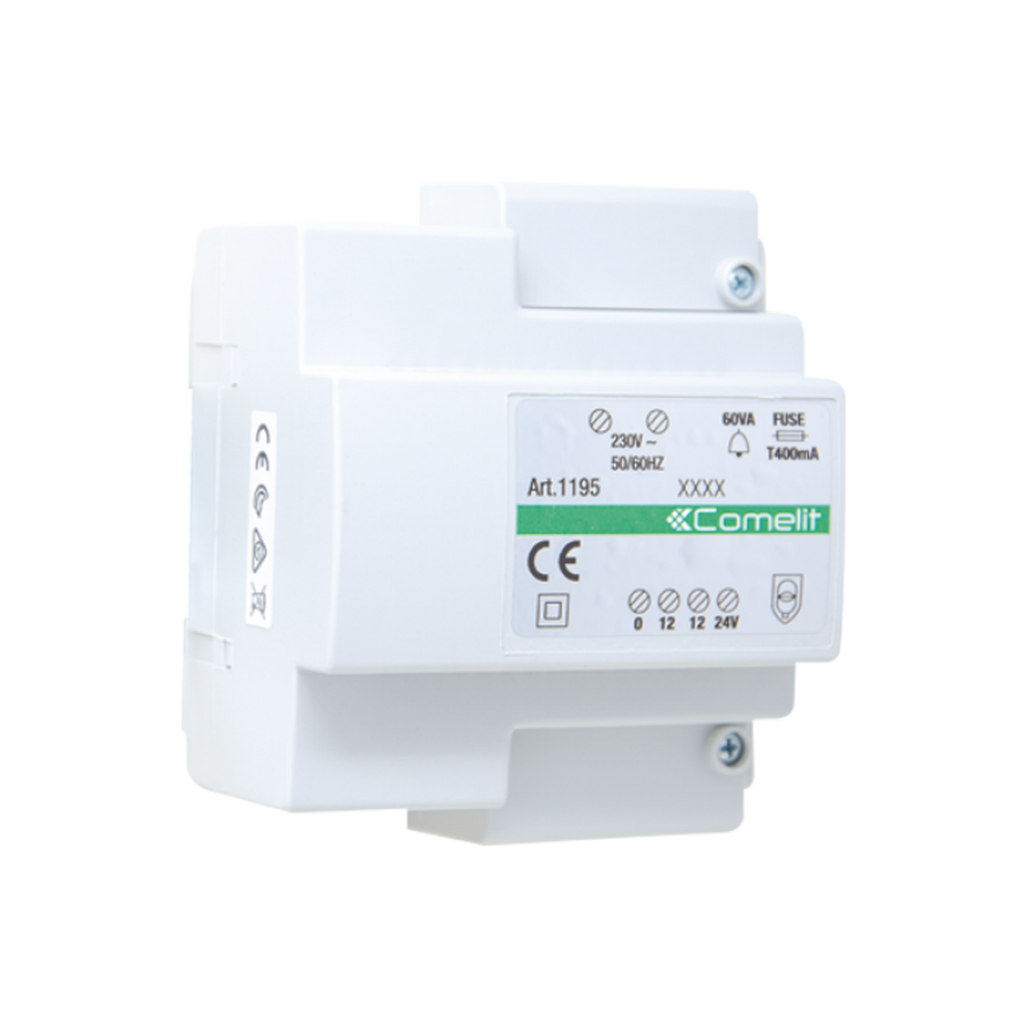

The Comelit 1195 is a 60 W DIN-rail transformer for Comelit door entry systems. It takes a 230 VAC mains input and gives a 12 or 24 VAC output on a terminal strip, and fits a standard DIN rail, taking 5 modules.
Key features
- DIN-rail mounting, 5 modules
- 230 VAC input, 12/24 VAC output
- Terminal strip connections
- For Simplebus 1, Simplebus 2 and kit systems
Technical specifications
- Product code: 1195
- Supply voltage: 230 VAC, 50 to 60 Hz
- Output voltage: 12/24 VAC
- Maximum power delivered: 60 W
- Input connector: terminal block
- DIN modules: 5
- Dimensions: 87.5 x 105 x 65 mm (W x H x D)
- Weight: 800 g
- Material / colour: plastic / white
- Operating temperature: 5 °C to 40 °C
- Operating humidity: 25% to 95% RH
- Compatible systems: Simplebus 2 audio/video and audio, Simplebus 1 audio, kit audio/video
