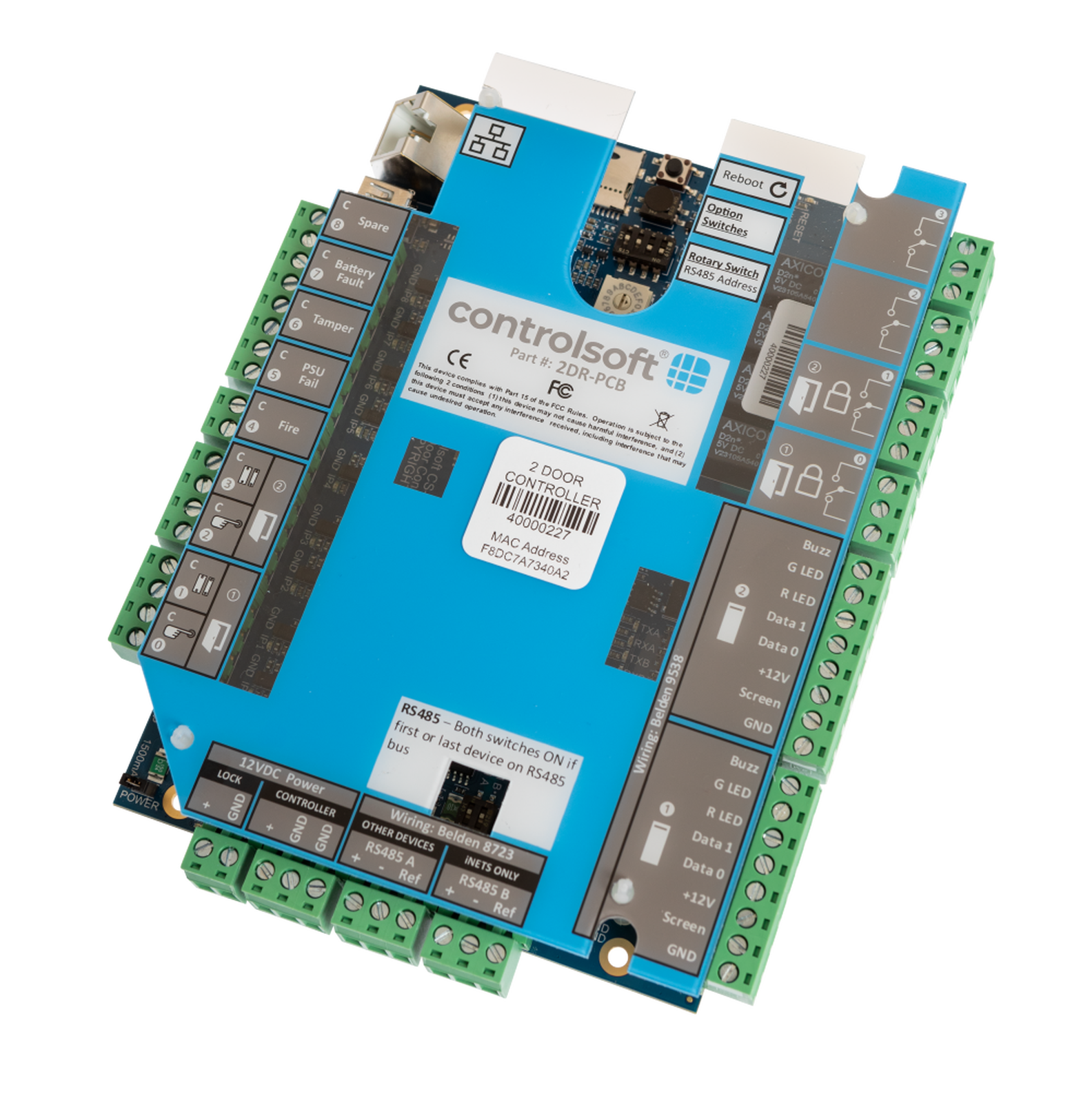

The iNet Intelligent Access Control Unit from Controlsoft provides a single board solution for interfacing one or two doors to a Controlsoft Identity Access system. In addition, other iNet Intelligent Door Controllers, I/O Expansion Boards and RS485 Readers can be added on the iNet’s RS485 ports to expand its capabilities. Controller for Two Doors with IN Readers OR One Door with IN and OUT Readers Battery-backed memory for 200,000 cardholders and 250,000 events Flexible System Expansion Nine Programmable Inputs Four Programmable Output Relays Two Reader Interface Ports Doors can be Automatically Released in the Event of Fire Normal or Latched Door Control Programmable Lock Timers for Compliance with DDA Large metal housing with cable management slots Improved connectors for easier installation Fully compatible with v2 & v3 iNet Controllers for system upgrades Boxed versions with Lid Tamper Reliable and Robust Operation Compatible with a Wide Range of Card Formats Anti-Passback 3 Year Warranty
