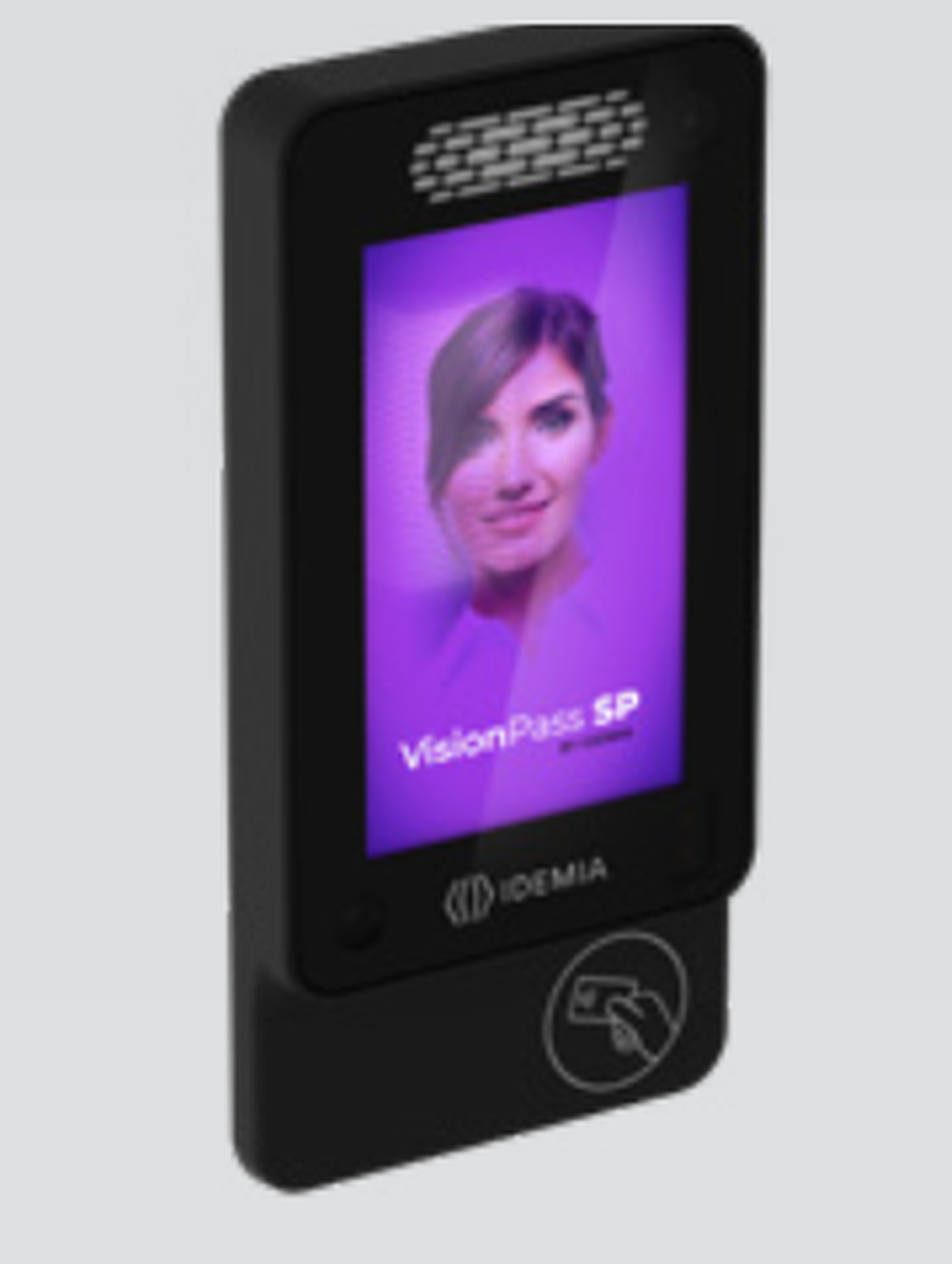

The Controlsoft VisionPass SP (part number SG-293793826) is an IDEMIA facial recognition access control reader with a built-in contactless card reader, the variant listed by Controlsoft with an HID iCLASS reader (MIFARE/DESFire/iCLASS). It is a compact version of VisionPass, giving hands-free identification in under one second in any lighting.
It connects to door controllers by Wiegand or OSDP, has an embedded door relay, and integrates with PAC software and IDEMIA MorphoManager for configuration and reporting.
Key features
- Fully hands-free facial recognition with live user feedback on a 5" touchscreen
- Visible, infrared and 3D face acquisition with presentation attack (anti-spoofing) detection
- Multi-factor options: built-in RFID card reader, QR code reading and PIN
- Adjustable capture area and wide-angle detection for users 1.2 to 2.0 m tall
- Up to 10,000 users; templates can also be stored on the user's card
- PoE+ powered, with embedded relay for single-door control
- Deep-sleep mode saving up to 75% of power
- Face templates protected by AES-256 encryption; no user images stored
Technical specifications
- Part number: SG-293793826 (VisionPass SP with HID iCLASS reader)
- Contactless options: MIFARE/DESFire, HID iCLASS, SEOS
- Matching speed: <1 s; flow rate 30 users per minute
- Intention area: 0.3 to 1.0 m (adjustable); field of view 55° x 90°
- Capacity: 10,000 users, 250,000 IDs in authorised list, 1 million transaction logs
- Interfaces: Ethernet, RS485, Wiegand in/out, OSDP, door relay, 3 GPI, 3 GPO
- Power: 12 to 24 V DC (2.5 A min at 12 V) or PoE+
- Operating temperature: -10 to 45°C; humidity 10 to 80% non-condensing
- Protection: IP65 / IK07
- Dimensions: 210 x 102 x 35 mm (H x W x D)
- Weight: 0.8 kg
- Compliance: CE, CB, FCC, RoHS, REACH, WEEE
