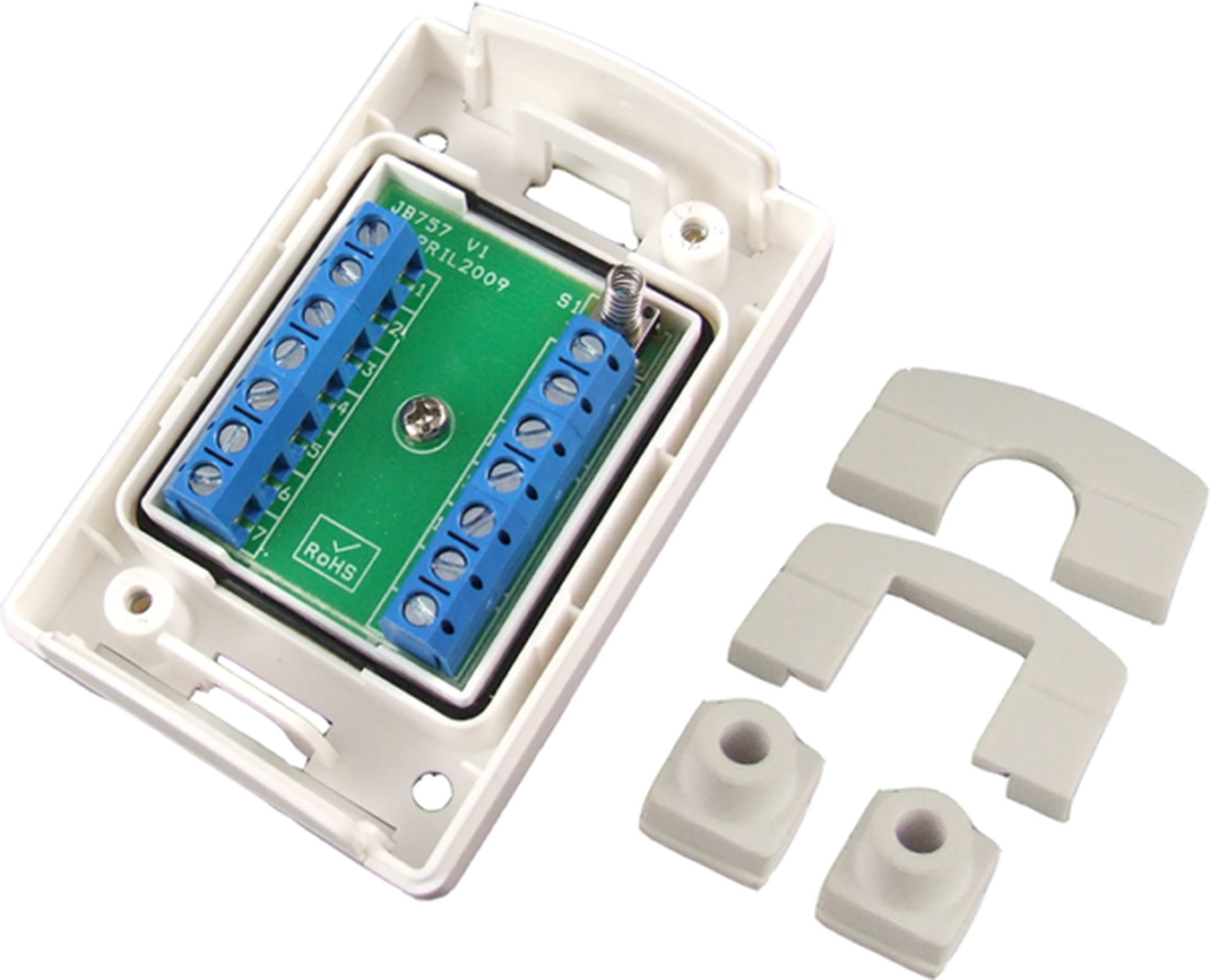

The CQR JB757/WH is a weatherproof 12+2-way junction box for intruder alarm wiring. It has a microswitch tamper and an optional base tamper, it is rated Grade 3 and Environmental Class III, and it can be used with various heavy-duty contacts.
Key features
- 12 connector terminals plus 2 tamper terminals
- Weatherproof, Environmental Class III
- Microswitch tamper with optional base tamper
- Security Grade 3
- Suitable for use with various heavy-duty contacts
- ABS housing, white finish
Technical specifications
- Model: JB757/WH
- Security grade: 3
- Environmental class: III
- Weatherproof: yes
- Connection: terminals
- Connector terminals: 12
- Tamper terminals: 2
- Dimensions (H × W × D): 80 × 24 × 52 mm
- Colour: white
- Material: ABS
- Standards: EN50131-1, EN50130-5
