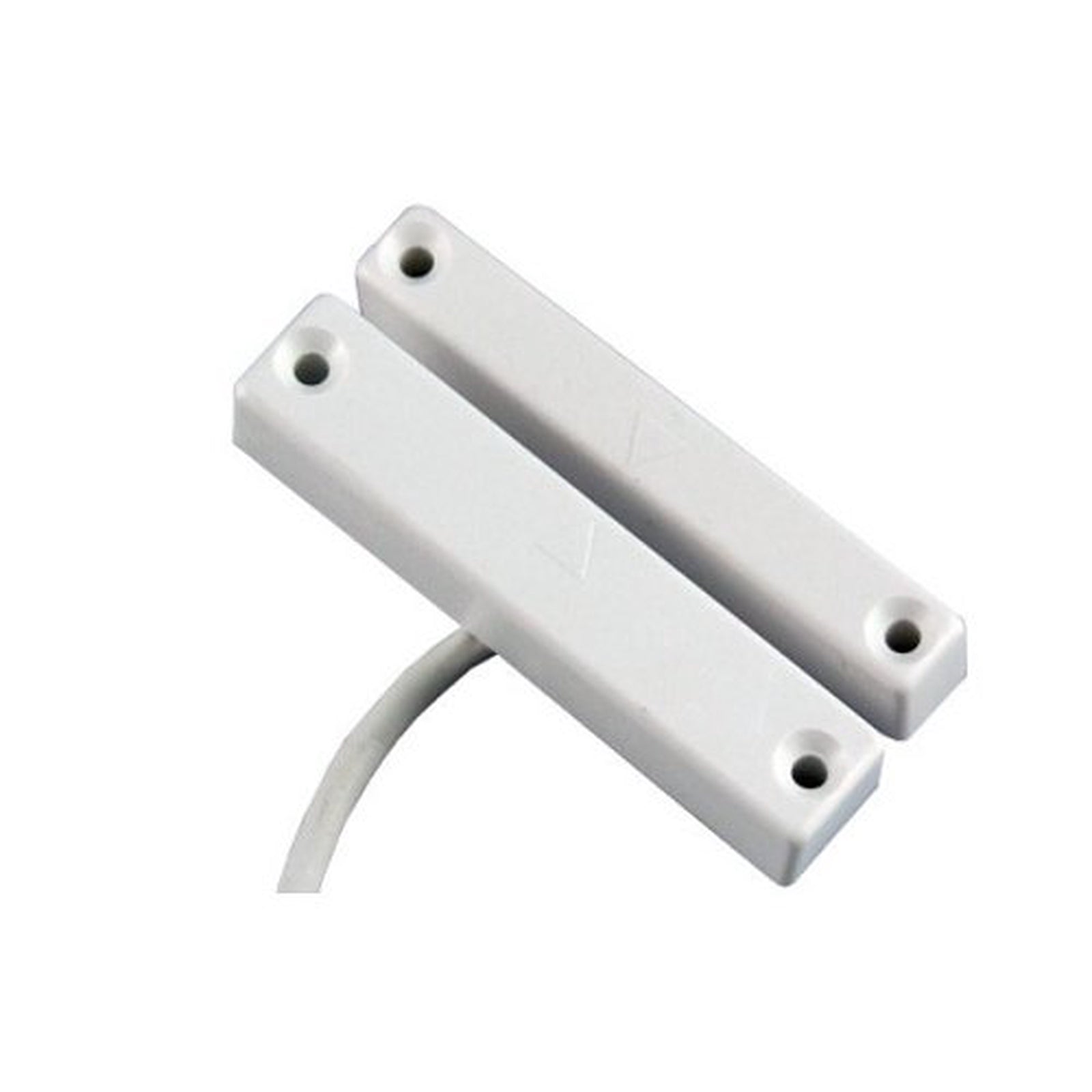

The CQR SC513/WH/4C is a compact, white, pre-wired surface magnetic contact for intruder alarm systems up to Grade 2 and Environmental Class II (indoor use), as specified in EN50131-1.
Key features
- Grade 2, Environmental Class II, compliant with EN50131-2-6
- Compact surface-mount design
- Normally closed contact
- Suitable for double doors and double pole systems
- Internal tamper protection
- Non-resistored
Technical specifications
- Model: SC513/WH/4C
- Security grade: 2
- Environmental class: II
- Contact type: normally closed
- Max. switching current: 500 mA
- Contact material: palladium
- Wire length: 100 mm
- Contact dimensions: 65 × 13 × 13 mm
- Magnet dimensions: 65 × 13 × 11 mm
- Material: ASA
- Colour: white
- IP rating: IP3X
- Temperature range: -15 °C to +40 °C
- Standards: EN50131-1, EN50131-2-6, EN50130-5
