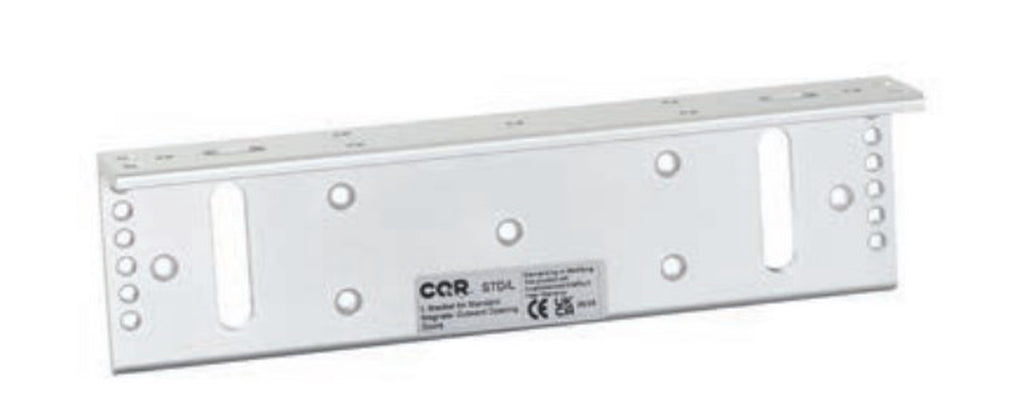

The CQR STD/L is an L bracket for Deedlock by CQR Standard electro-magnetic locks. L brackets are used to mount the magnet on outward-opening doors, shallow frame sections or rebated overhead panels. Deedlock by CQR electro-magnetic locks are tested to the TS010 performance standard and are used with access control and audio or video door entry systems.
Key features
- L bracket for Deedlock Standard electro-magnetic locks
- For outward-opening doors
- Fire tested to EN 1634-1, rated E30 and E60
- Satin anodised aluminium finish
Technical specifications
- Part number: STD/L
- Range: Deedlock Standard
- Bracket type: outward opening (L)
- Size: L265 x H72.7 x D45.6mm
- Finish: satin anodised aluminium
- Fire test: EN 1634-1; fire rating E30 and E60
- TS010 Grade 3; EMC; CE marked
