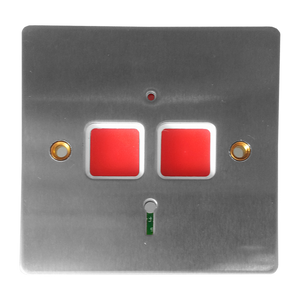

The CQR EPA-NG/STD/SS/G3 is a Grade 3 electronic personal attack (panic) button in a stainless steel finish, for intruder alarm and hold-up alarm systems. It needs both buttons to be pressed to activate, which reduces the risk of accidental activation, and it latches with an LED indicator to show it has been triggered. Reset is keyless, and built-in end-of-line resistor options are selected by jumper.
Key features
- Two-button (dual push) operation
- Instant operation, latching
- LED indicator
- Single relay output: changeover COM/NO/NC
- Selectable built-in EOL resistor types A, B, D and E (jumper selected)
- Keyless reset
- Surface or flush mounting
- Cover tamper protection
Technical specifications
- Part number: EPA-NG/STD/SS/G3
- Security grade: Grade 3
- Environmental class: II
- Standards: EN 50131-1, EN 50130-5, BS 8243
- Nominal voltage: 12V DC (10-15V DC range)
- Quiescent current: 30mA
- Switch rating: 30V DC, 2A
- Connection: 7 terminals
- IP rating: IP4X
- Operating temperature: -10°C to +40°C
- Dimensions: 85 x 85 x 39mm
- Warranty: 2 years
