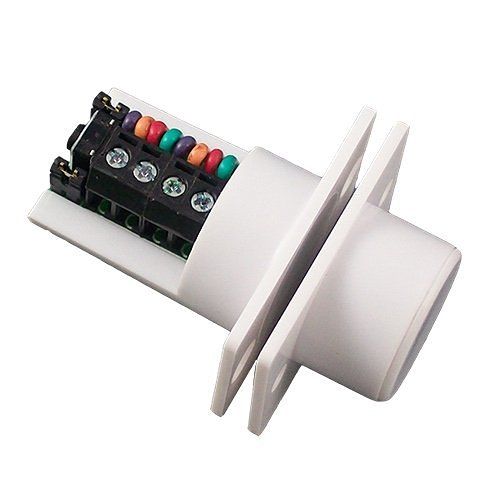

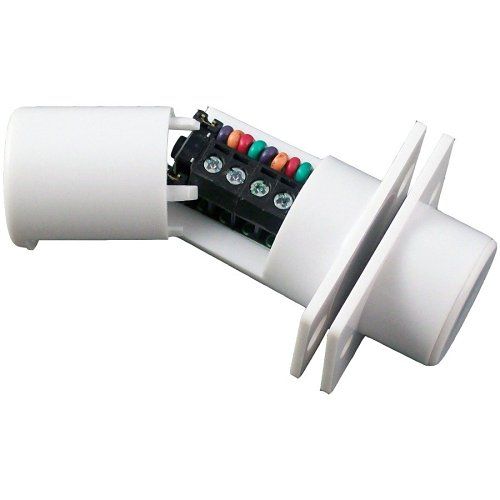

CQR FC508-MULTI Quick Fit Magnetic Flush Door Contact, with Microswitch Tamper, Operating Gap 23mm, Grade 3, White
SKU: FC508/WH/MULTIG3ENBrand: CQR
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 195 | 2 to 3 working days |
CQR FC508-MULTI Quick Fit Magnetic Flush Door Contact, with Microswitch Tamper, Operating Gap 23mm, Grade 3, White
£9.46
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Flush contact
- Screw terminal block, no junction box required
- Selectable end of line resistor
- Can use own resistors
- Microswitch tamper
- Magnetic Immunity
Frequently bought together
CQR
CQR FC508/BR/MULTI/G2/EN Quick Fit Magnetic Flush Door Contact, with Microswitch Tamper, Operating Gap 23mm, Grade 2, Brown
Sale price£5.90
In stock, 23 units
CQR
CQR Flush Contact BR Type B 4K7 SW 2K2 TAMP
Sale price£8.20
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
CQR
CQR Flush Contact Brown Grade 1
Sale price£2.80
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
CQR's range of magnetic flush contacts and other magnetic contacts are known throughout the security industry for the quality. The Multi contacts come with selectable resistors to allow installers to stock one contact that can be used with any panel. Many of the contacts have been independently certified to meet EN50131 grade 2 and grade 3, so you can be confident in using them.
Main Features
- Flush contact
- Screw terminal block, no junction box required
- Selectable end of line resistor
- Can use own resistors
- Microswitch tamper
- Magnetic Immunity
- Can be fitted in double pole
- Can be used on double door configuration
- EN50131-2-6 Grade 3
- Environmental Class II
Specifications
| Application/Usage | Door; Double Door |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | NO (Normally Open); SPST (Single Pole Single Throw) |
| Diameter | 20.00mm |
| Input Voltage | 100V DC |
| Length | 32.00mm |
| Limited Warranty | 2-Year |
| Material | Polystyrene |
| Mount Type | Flush Mount |
| Product Type | Magnetic Contact |
| Security Grade | Grade 3 |
| Standard Gap | 4.00mm |
| Colour | White |
| Contact Form | Form A |
| Contact Material | Copper; Silver |
| Input Current | 500mA |
| Manufacturer | CQR Fire & Security |
| RoHS Compliant | Compliant |
| Termination Style | Screw Terminals |
| WEEE Compliant | Compliant |
Downloads
Datasheet
CQR FC508-MULTI Quick Fit Magnetic Flush Door Contact, with Microswitch Tamper, Operating Gap 23mm, Grade 3, White Need the datasheet? Our team will email it to you. Request datasheet
