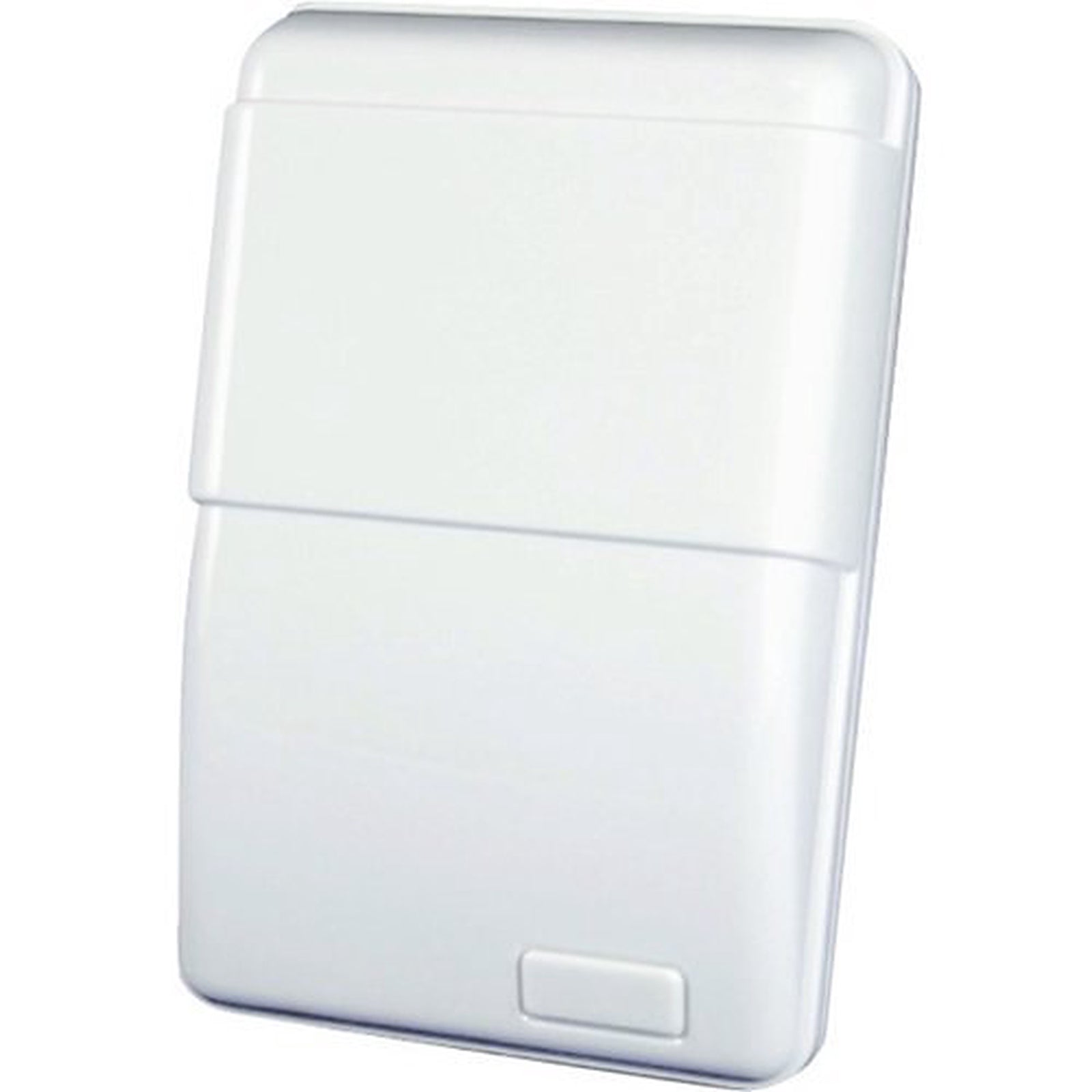

The CQR SOINT2/WH is a Grade 3 internal sounder for 12V intruder alarm systems. It has a low-profile ABS housing with an electronically driven Mylar cone speaker giving 110dB(A), plus an independent LED status indicator and wall and cover tamper protection.
Key features
- Grade 3, environmental class II
- 110dB(A) sound output from an electronically driven Mylar cone speaker
- Independent LED status notification
- Wall (RFMS) and lid tamper
- Low-profile ABS housing
- Can be supplied screen printed with an installer logo (enquire with CQR)
Technical specifications
-
CQR part code: SOINT2/WH
-
Security grade: 3
-
Environmental class: II
-
Sounder type: Mylar cone
-
Sound output: 110dB(A)
-
Nominal voltage: 12V DC
-
Sound-only current: 300mA
-
Dimensions: 100 × 155 × 48 mm
-
Colour: White
-
Material: ABS plastic
-
IP rating: IP4X
-
Temperature range: −10°C to +40°C
-
Tamper protection: Lid and RFMS
-
Standards: EN 50131-1, EN 50131-4, EN 50130-5
-
Warranty: 2 years
