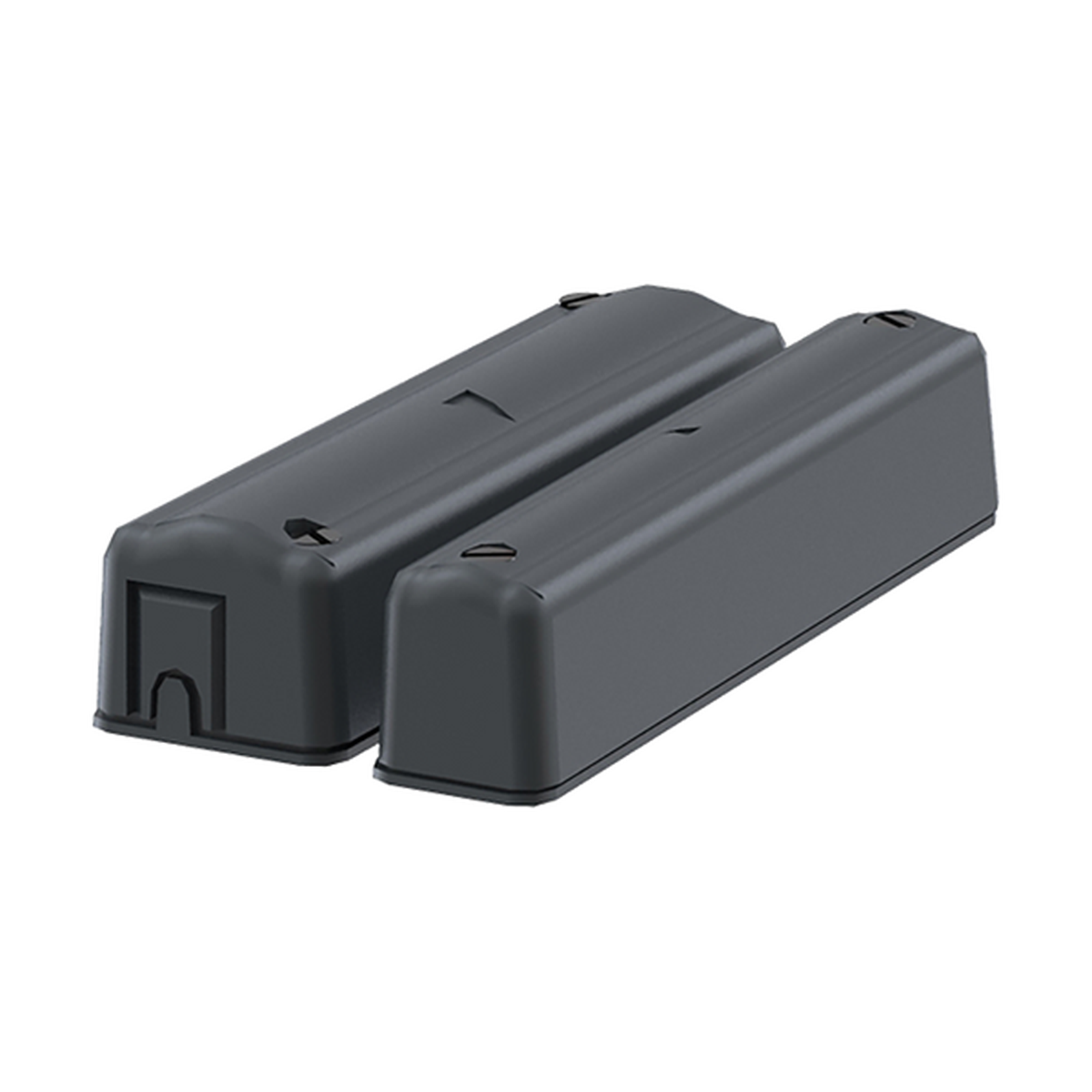

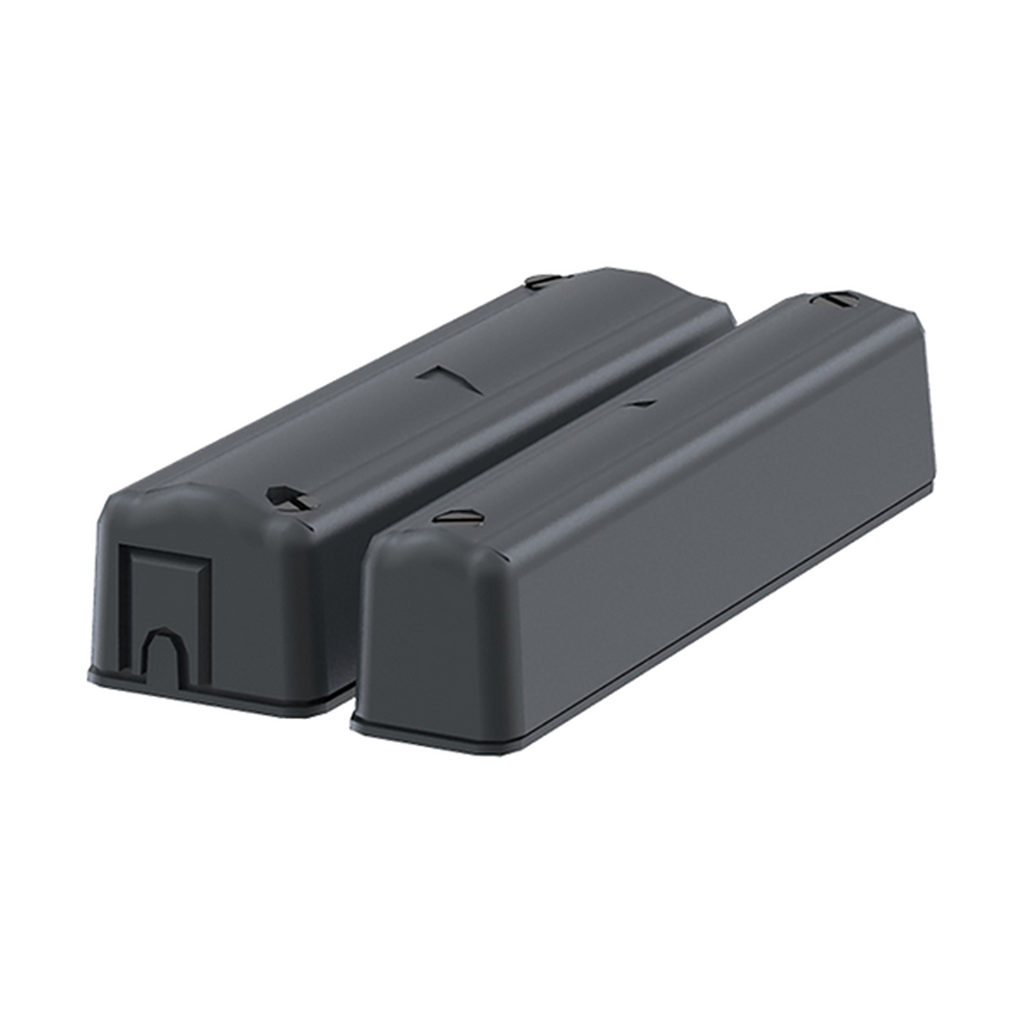

The CQR SC570/GY/G2/EN is a non-resistored surface-mounted magnetic door contact in anthracite grey for intruder alarm systems. It can be used in systems up to and including Grade 2, environmental class II, as specified in EN 50131-1, and is certified to EN 50131-2-6 by Kiwa FSS. Use it on doors and windows to detect unauthorised entry.
Key features
- Grade 2, environmental class II (EN 50131-1)
- Certified to EN 50131-2-6 by Kiwa FSS
- Normally closed, wired contact with rhodium contacts
- Cover tamper and optional removal-from-mounting-surface (RFMS) detection
- Suitable for double doors and double pole systems
- Non-resistored
Technical specifications
-
CQR part code: SC570/GY/G2/EN
-
Security grade: 2
-
Environmental class: II
-
Contact type: Normally closed
-
Maximum switching current: 500mA
-
Contact material: Rhodium
-
Contact dimensions: 85 × 25 × 21 mm
-
Magnet dimensions: 85 × 18 × 21 mm
-
Colour: Anthracite grey
-
Material: HIPS
-
IP rating: IP3X
-
Temperature range: −10°C to +40°C
-
Tamper protection: Cover and RFMS
-
Standards: EN 50131-1, EN 50131-2-6, EN 50130-5
