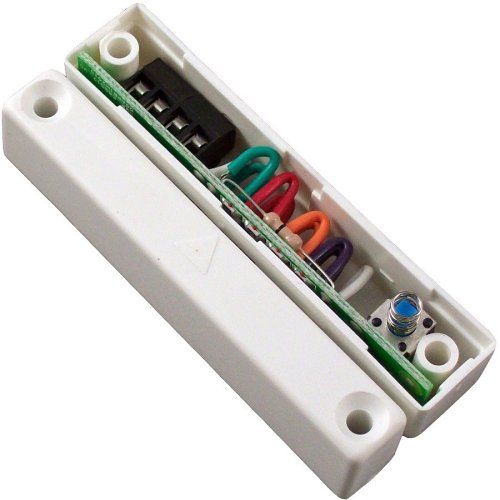

CQR SC517-MULTI Magnetic Surface Door Contact with Microswitch Tamper, Screw Terminal Block, Operating Gap 15mm, Grade 2, White
SKU: SC517/WH/MULTIG2ENBrand: CQR
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 216 | 2 to 3 working days |
CQR SC517-MULTI Magnetic Surface Door Contact with Microswitch Tamper, Screw Terminal Block, Operating Gap 15mm, Grade 2, White
£6.03
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Small surface contact
- Selectable end of line resistor
- Can use own resistors
- Microswitch tamper
- Can be used on double door configuration
- EN50131-2-6 Grade 2
Frequently bought together
CQR
CQR SC517-MULTI Magnetic Surface Door Contact with Microswitch Tamper, Screw Terminal Block, Operating Gap 15mm, Grade 3, White
Sale price£8.23
In stock, 72 units
CQR
CQR SC517/BR/MULTI/G2/EN Magnetic Surface Door Contact with Microswitch Tamper, Screw Terminal Block, Operating Gap 15mm, Grade 2, Brown
Sale price£6.03
Only 6 units left
Product details
CQR's range of magnetic surface contacts and other magnetic contacts are known throughout the security industry for the quality. The Multi contacts come with selectable resistors to allow installers to stock one contact that can be used with any panel. Many of the contacts have been independently certified to meet EN50131 grade 2 and grade 3, so you can be confident in using them.
Main Features
- Small surface contact
- Selectable end of line resistor
- Can use own resistors
- Microswitch tamper
- Can be used on double door configuration
- EN50131-2-6 Grade 2
- Environmental Class II
- Size 65 x 13.5 x 13mm
Specifications
| Application/Usage | Door; Double Door |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | NO (Normally Open); SPST (Single Pole Single Throw) |
| Height | 13.00mm |
| Input Voltage | 12V DC |
| Length | 65.00mm |
| Limited Warranty | 2-Year |
| Material | Polystyrene |
| Mount Type | Surface Mount |
| Power Source | DC Power |
| Product Type | Magnetic Contact |
| Security Grade | Grade 2 |
| Standard Gap | 15.00mm |
| Width | 13.50mm |
| Colour | Silver |
| Contact Form | Form A |
| Contact Material | Rhodium |
| Country of Origin | UK |
| Input Current | 500mA |
| Manufacturer | CQR Fire & Security |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
