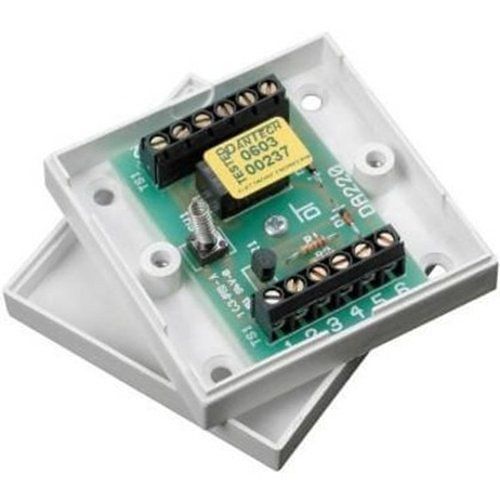

Dantech DA220 12V DC 1A Relay Module with High and Low Sensitivity Trigger Input
SKU: DA220Brand: Dantech Electronic Engineering
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 22 | 1 to 3 working days |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Dantech DA220 12V DC 1A Relay Module with High and Low Sensitivity Trigger Input
£20.15
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- ABS enclosure
- Flame retardant
- Supply voltage 12V DC
- Current consumption <20mA
- Relay contact rating 30V DC 1A
- Tamper switch
Frequently bought together
Dantech Electronic Engineering
Dantech DA314-1K-1K Pre-Wired EOL 1k ohm Resistors, 8-Pack
Sale price£10.60
In stock
Dantech Electronic Engineering
Dantech DA314-4K7-4K7 Pre-Wired Resistors, 8-Pack
Sale price£10.25
In stock
Dantech Electronic Engineering
Dantech DA318 6-Way Junction Box with Lid Tamper
Sale price£40.55
In stock
Dantech Electronic Engineering
Dantech DA449 12V DC 8A or 24V DC 4A Power Supply, Mild Steel Enclosure
Sale price£225.85
In stockProduct details
A 12V DC operating, ABS cased transistor driven relay unit with DPCO (double pole change over) contacts.
The relay can be switched by either applying a standard 12 volt feed to the relay coil or applying a low current (<1mA) positive "trigger" input.
Typical uses include changing the polarity of signals and switching higher currents and voltages (30V DC MAX). It can also be used as an interface between different systems e.g. intruder alarm to access control or fire alarm to access control.
Main Features
- ABS enclosure
- Flame retardant
- Supply voltage 12V DC
- Current consumption <20mA
- Relay contact rating 30V DC 1A
- Tamper switch
- 2 x contact sets
- Made in Britain
- 5 year warranty
Specifications
| Application/Usage | Access Control; Fire Alarm System |
|---|---|
| Compatibility | Fire Alarm to Access Control; Intruder Alarm to Access Control |
| Depth | 20.00mm |
| Environmental Certification | CE Approved |
| Environmentally Friendly | Yes |
| Height | 65.00mm |
| Limited Warranty | 2-Year |
| Material | Mild Steel |
| Maximum Operating Voltage | 14V |
| Number of Channels | 2 |
| Packaged Quantity | 1 |
| Product Type | Relay |
| Width | 65.00mm |
| Maximum Operating Temperature | 40°C |
| Colour | White |
| Country of Origin | GB |
| Manufacturer | Dantech Electronic Engineering |
| Maximum Input Current | 1.00A |
| Maximum Storage Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Minimum Storage Temperature | -20°C |
| Relative Humidity | 0.95 |
| RoHS Compliant | Compliant |
| Switching Current | 1A |
| WEEE Compliant | Compliant |
