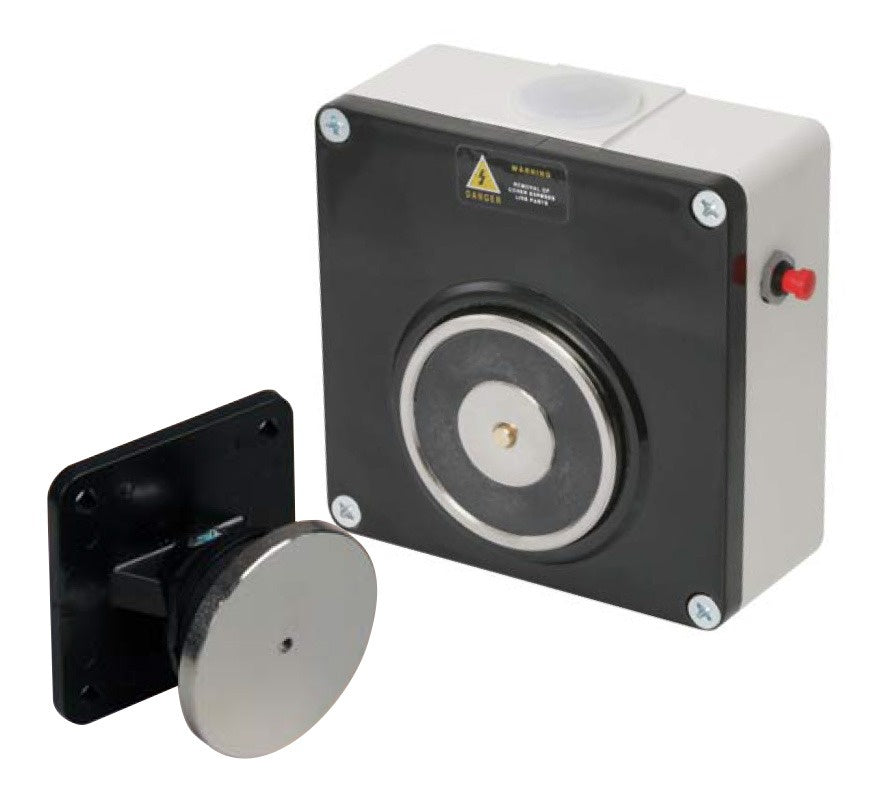

The Eaton MDR240 is a mains powered heavy duty electromagnetic door retainer for use with Eaton conventional fire systems. It holds self-closing fire doors open under normal conditions and releases them automatically when the fire alarm activates and the supply to the magnet is interrupted.
Its robust die cast aluminium construction with a plastic front cover plate suits nursing homes, hospitals, schools and industrial premises. It is supplied with a door-mounted striker plate and fixes directly to a suitable wall, or to the floor with the optional ZMDRFBB floor bracket.
Key features
- Mains powered, 230V to 240V AC
- Heavy duty construction
- Manual release switch
- Supplied with door-mounted striker plate
- Single 20mm cable entry; the unit can be rotated for entry at the top, bottom or side
- Optional floor mounting bracket (ZMDRFBB)
- EN 1155 approved
Technical specifications
-
Catalogue number: MDR240
-
Operating voltage: 230V to 240V AC
-
Power consumption: 1.2VA
-
Holding force: 42kg +/- 15%
-
Operating temperature: -10°C to +55°C
-
Humidity: 0 to 93% RH, non-condensing
-
Colour: White body, black plate
-
Magnet dimensions (H x W x D): 95 x 95 x 40mm
-
Striker plate dimensions (H x W x D): 65 x 65 x 48mm
-
Weight: 0.800kg
-
Ingress protection: IP40
