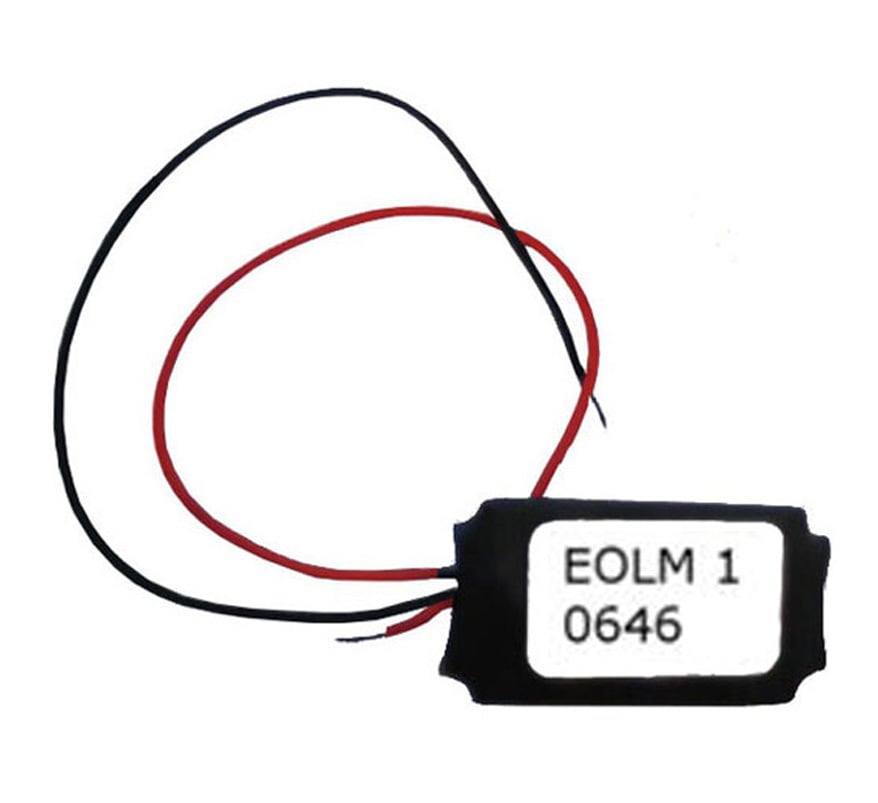

Eaton Conventional End of Line Module (EOLM-1)

The Eaton EOLM-1 is an intelligent end-of-line module used to terminate zones configured as standard conventional zones on Eaton conventional fire alarm panels, including the BiWire Flexi range when a zone is set to conventional mode. It continually monitors the zone for fault conditions such as detector head removal, open circuit and short circuit, and for end-of-line failures - even when the zone is in a fire condition.

Key features

• Terminates standard conventional detection zones
• Monitors for detector head removal, open circuit and short circuit faults
• Detects end-of-line failures even during a fire condition
• Fits in the base of the last detector or manual call point on the zone
• Required on each conventional-mode zone of the Eaton BiWire Flexi panel (BiWire-mode zones use the EOLM-3)
• Polarity sensitive - incorrect polarity shows as a fault on the panel

Technical specifications

• Operating voltage: 18.75-30.7 V DC (BiWire Flexi panels)
• Nominal current: 1.4 mA
• Location: last device on the zone (detector base or call point)
