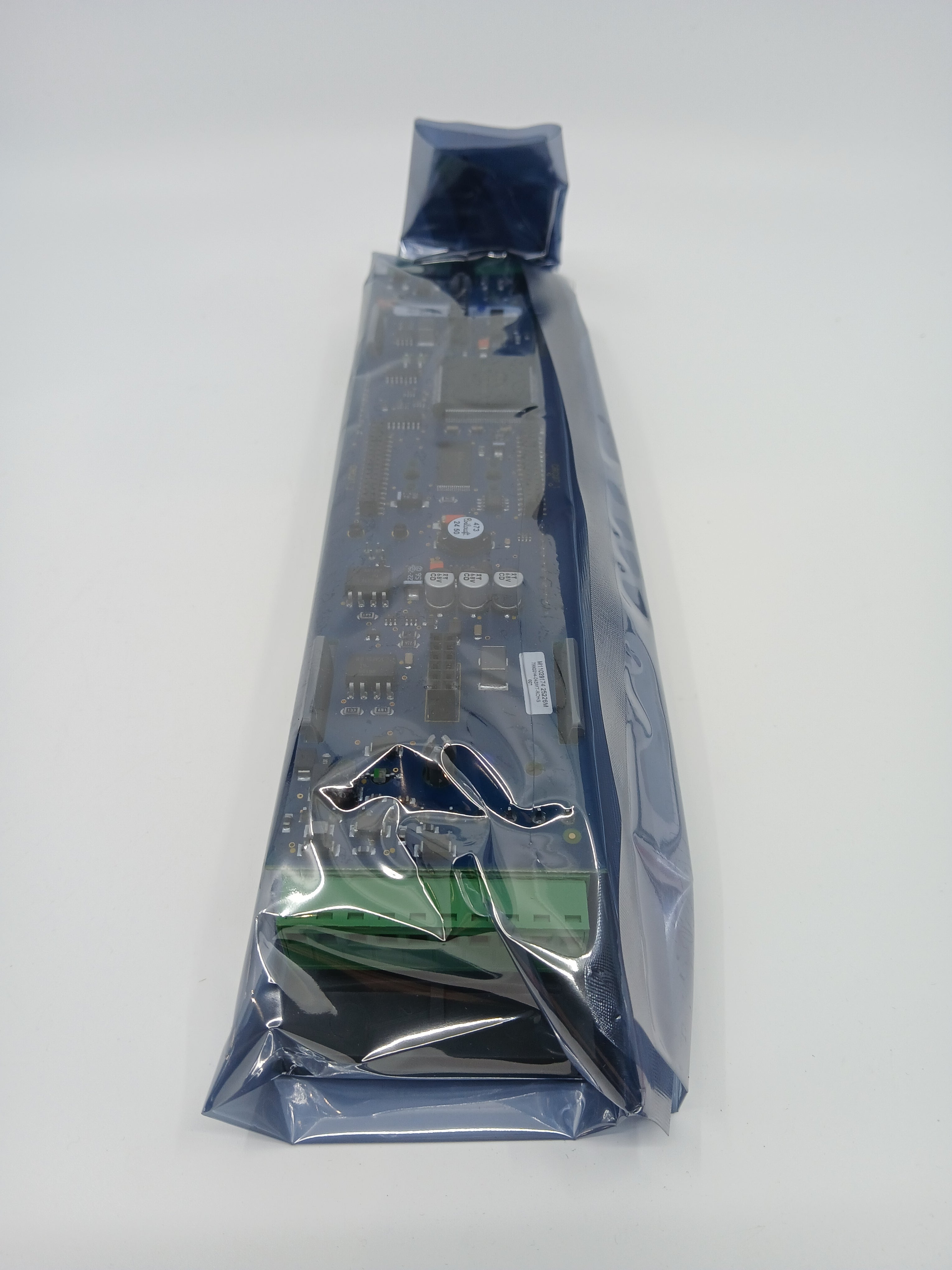

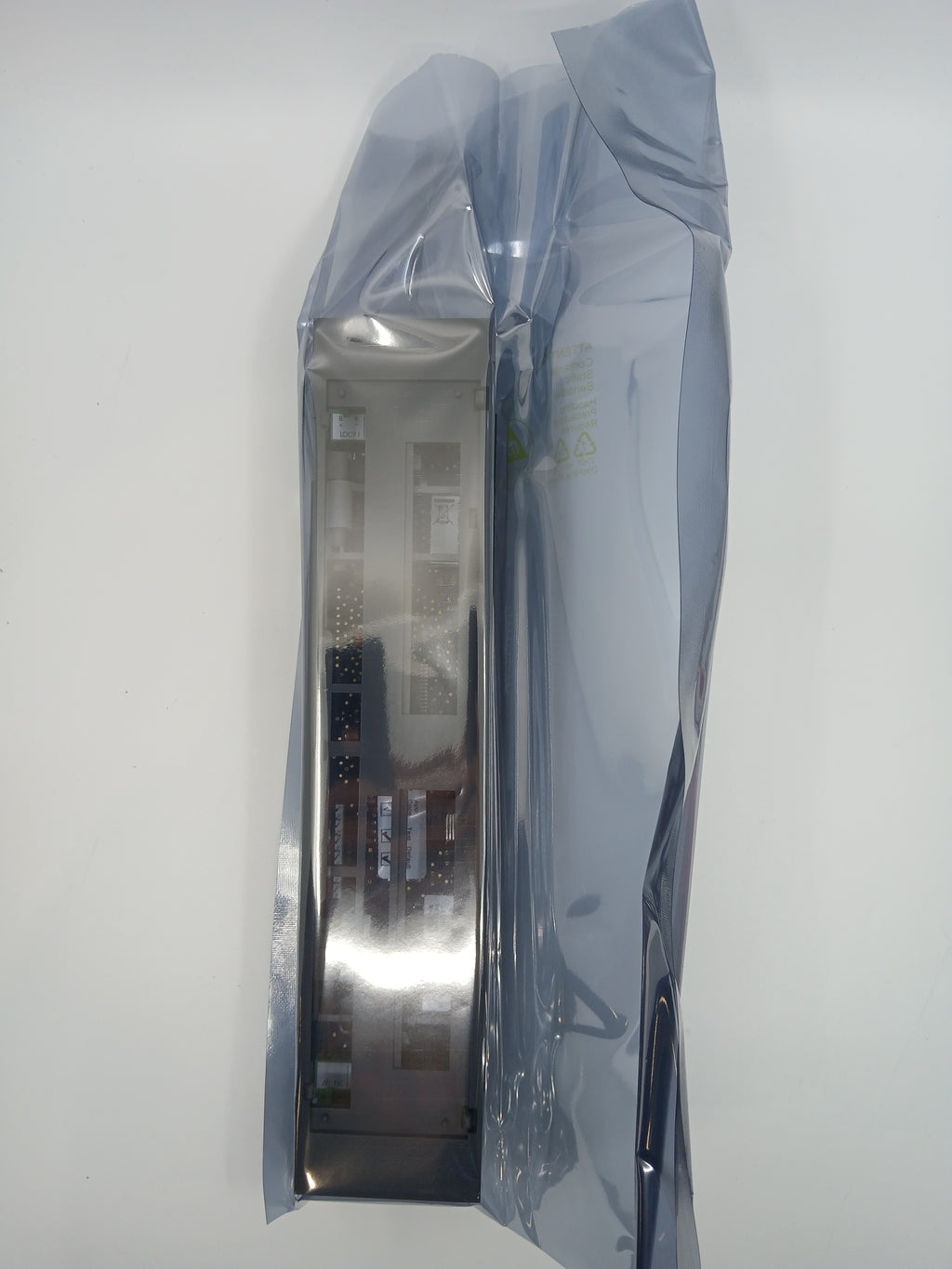

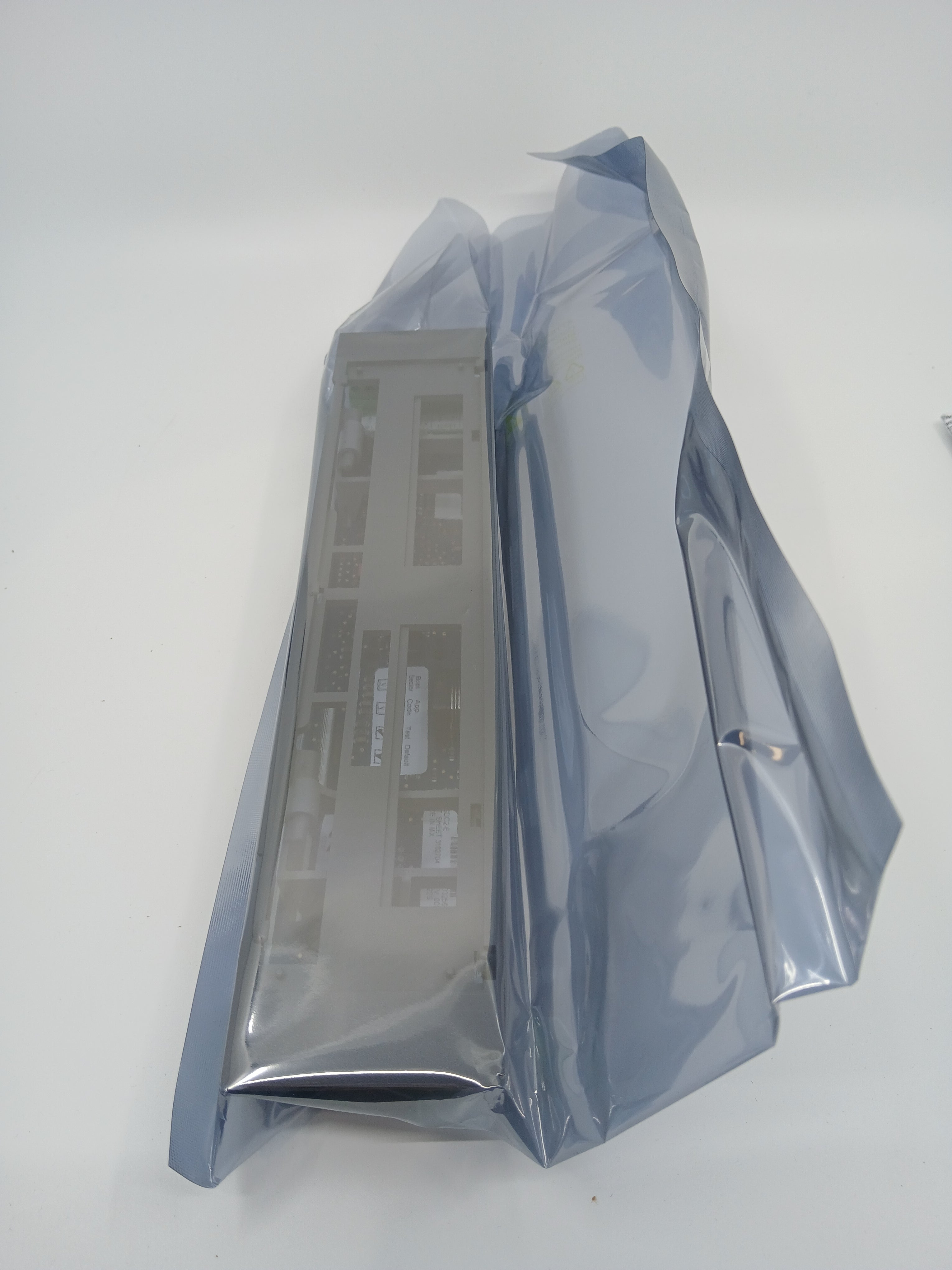

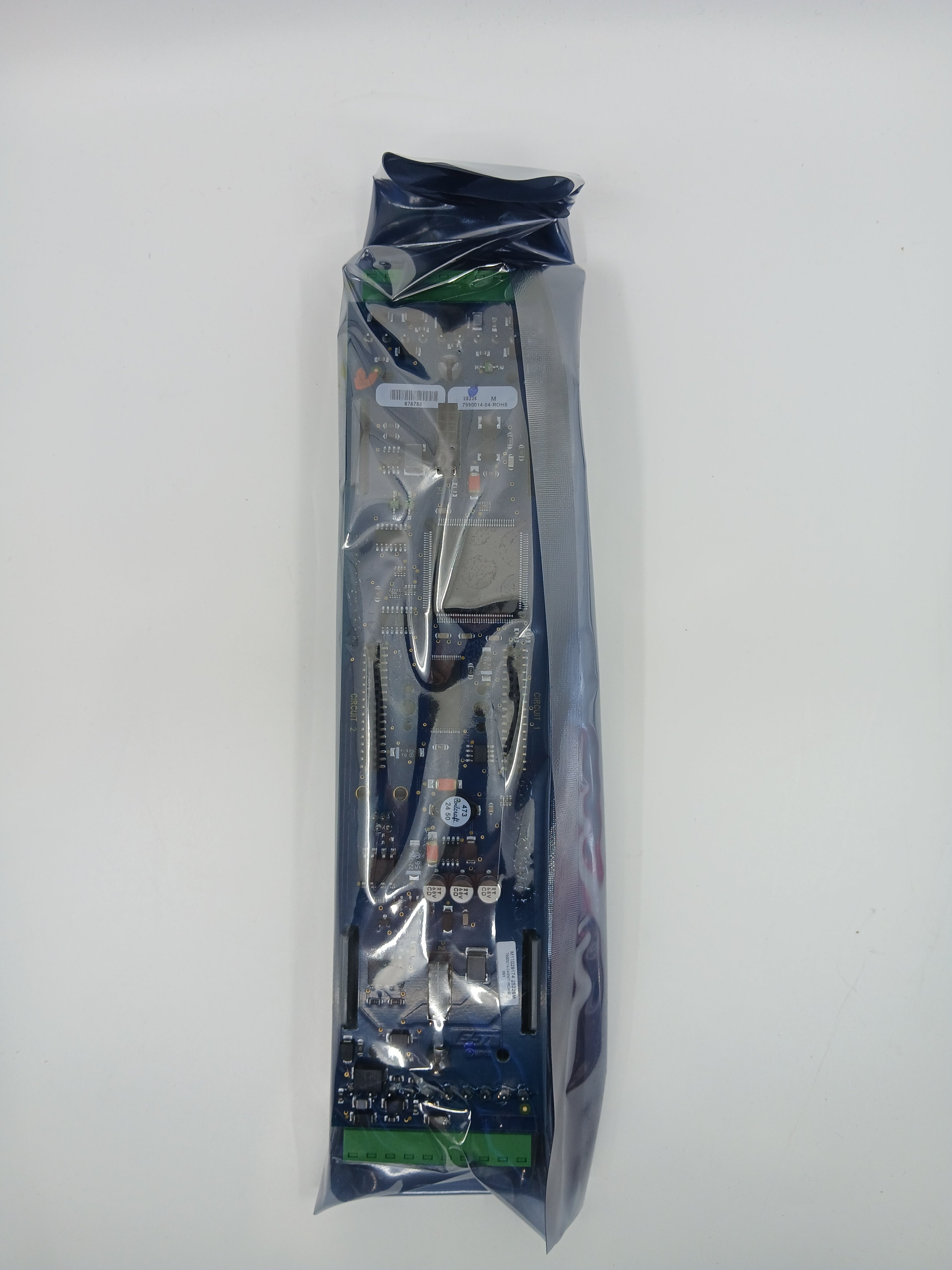

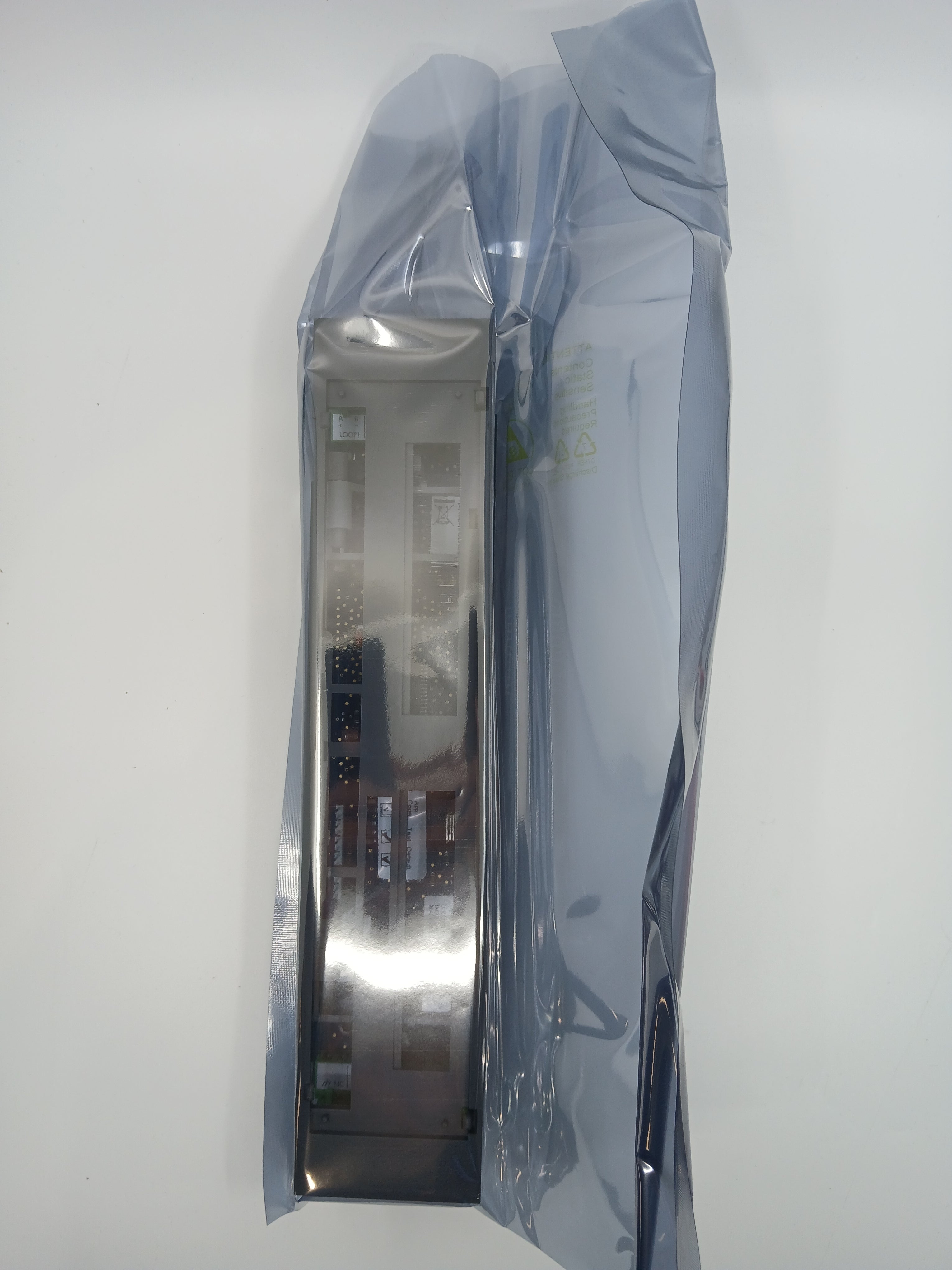

The Edwards 3-SSDC2-E is a single Signature driver controller (loop controller) module for the Edwards EST4 life safety control platform (EU version). It provides an intelligent interface between the 4-CPU-E and Signature Series devices, and supports one Signature data circuit.
The module has its own microprocessor to coordinate, process and interpret data sent to and from Signature devices. It takes power and communications from the control panel rail. It supports standalone mode: if the 4-CPU-E fails, the loop controller keeps polling its devices and alarms are passed on over the local rail.
Key features
- Supports one Signature data circuit (loop)
- Occupies one rail space in the fire alarm control cabinet

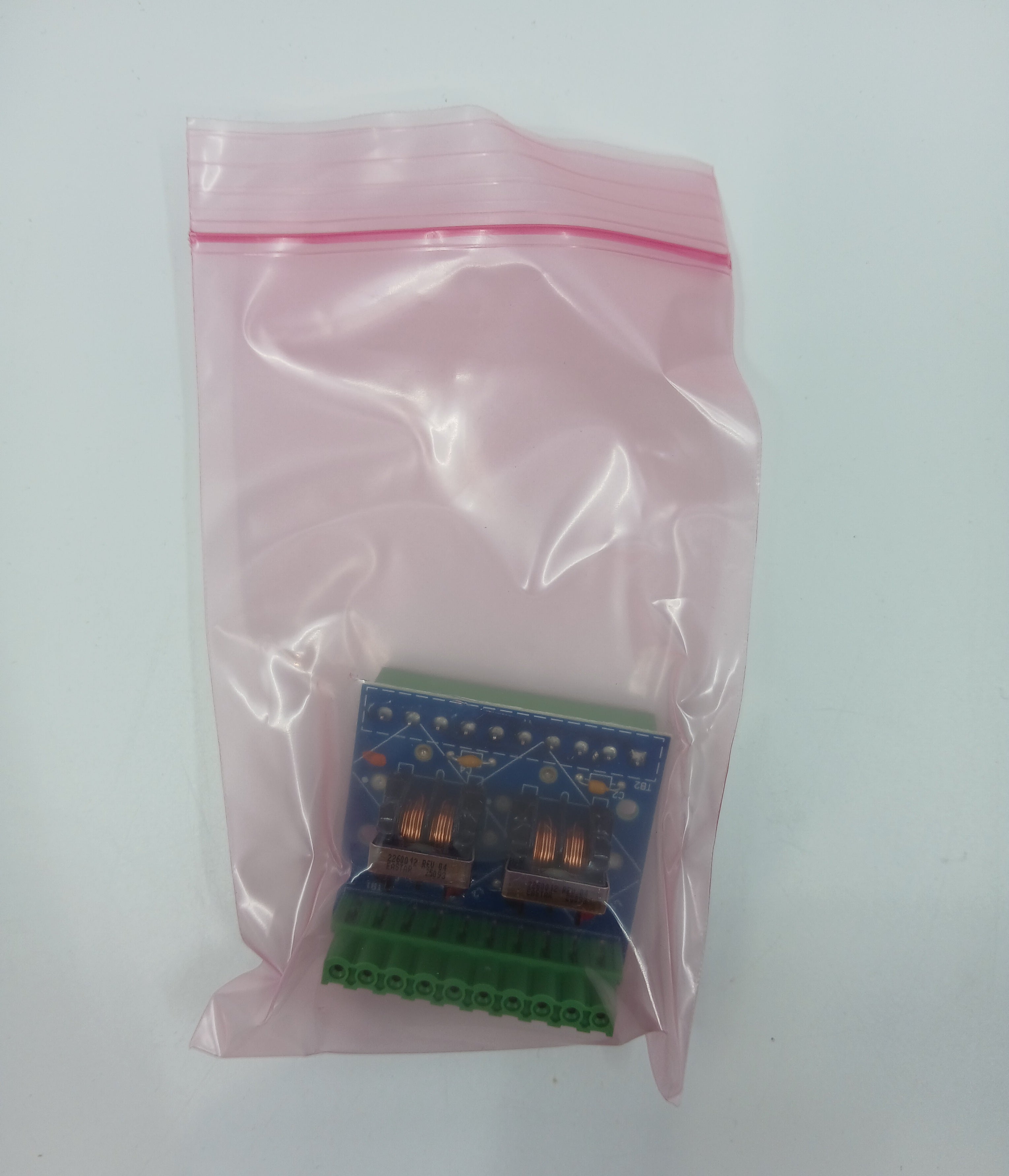

- Removable field wiring terminals
- Class A, Class B and Class X wiring supported
- Standalone mode for extra survivability
- Fully digital communication with Signature devices, which reduces the effects of capacitance and noise
- Can be upgraded to a dual-loop 3-SDDC2-E with a 3-SDC1-E device card
Technical specifications
- Model: 3-SSDC2-E
- Loops: 1 Signature data circuit
- Loop length: over 3,300 m (11,000 ft) possible
- Wiring: Class A, B or X (isolators required for Class A and X)
- Rail spaces: 1

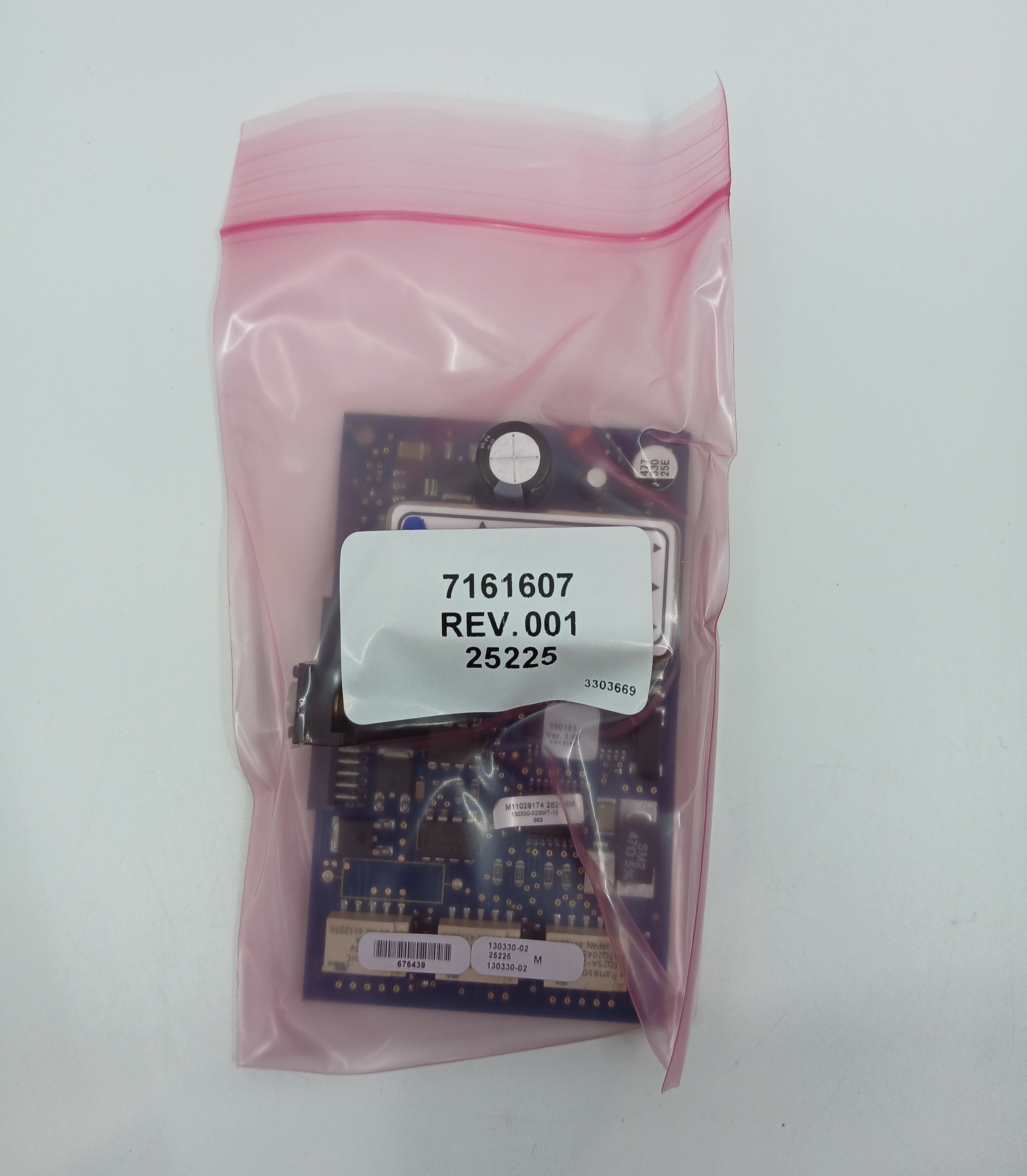

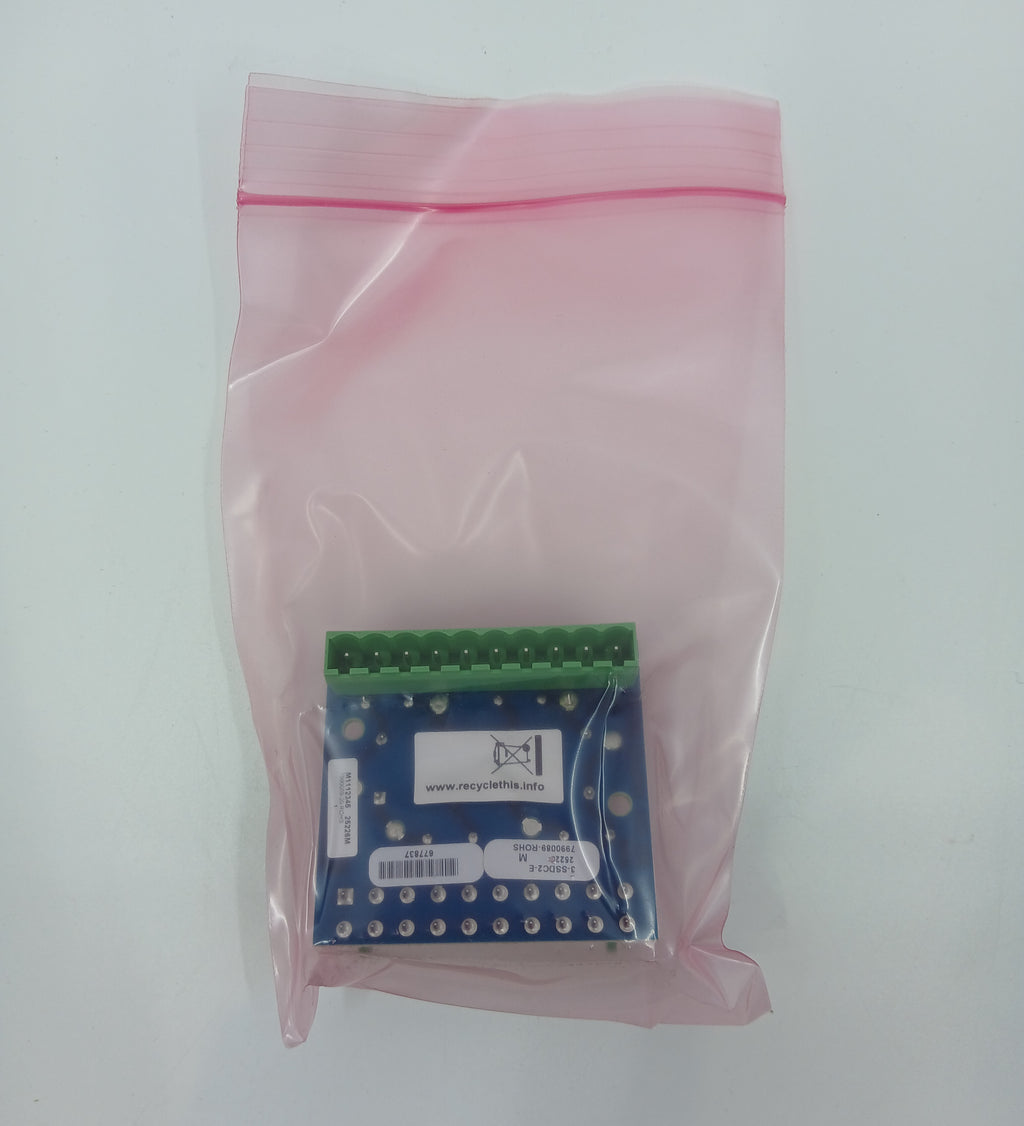

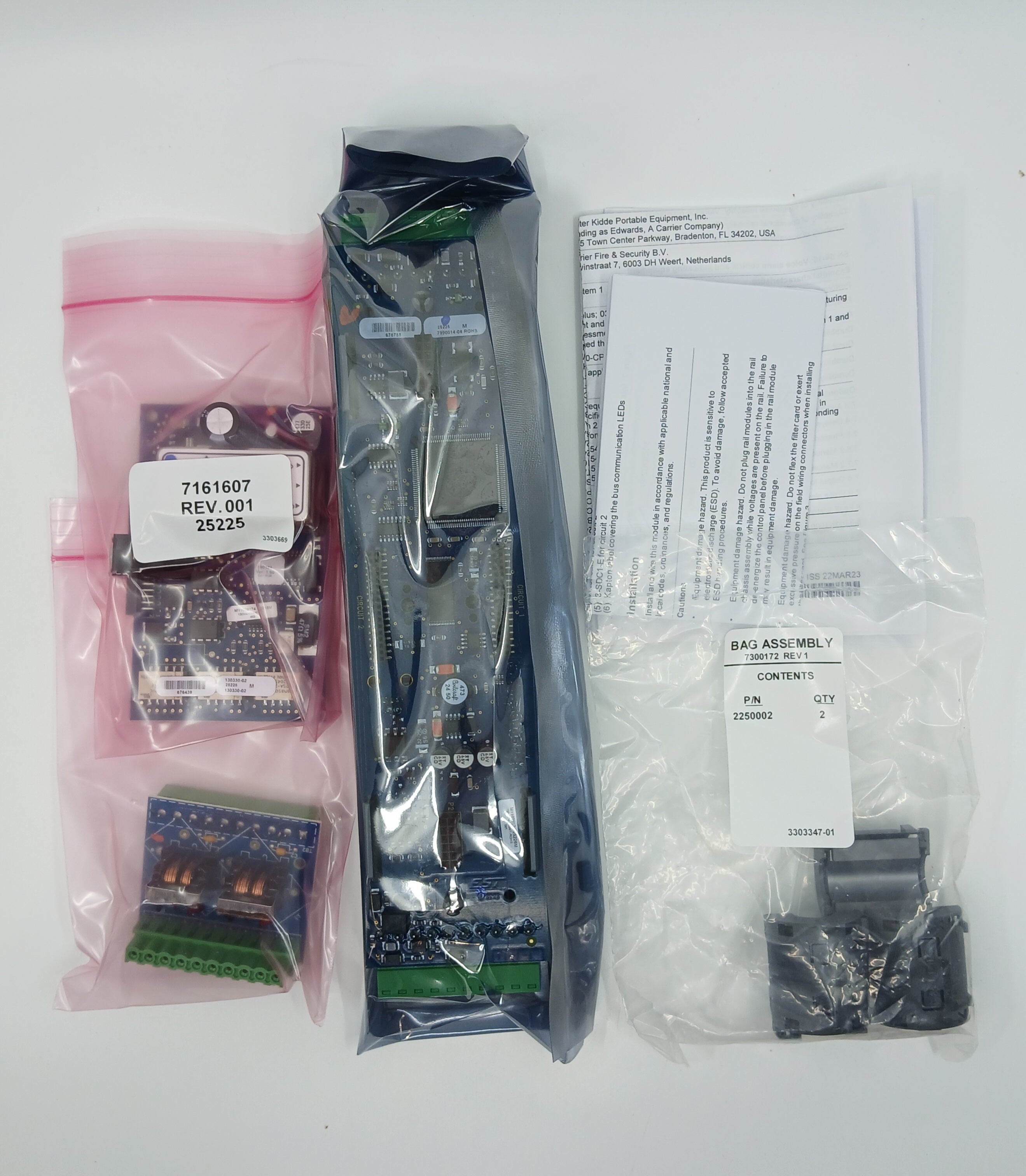

- Supplied with: one 3-SDC1 card
- Data sheet reference: E85010-0129
