Edwards G1VWN-E Compact Wall Beacon White No Marking EN54
£36.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- High-performance LED strobe with W-2.4-8.5 cuboid coverage
- Ultra-low current consumption of only 24 mA DC
- Enhanced synchronisation circuitry: 1 flash per second, within 10 ms over a two-hour period on a common circuit
- Backwards compatible and can be used in the same field of view as Genesis xenon strobes
- Compact, low-profile wall appliance about the size of a deck of playing cards
- Part of the Genesis LED G1 EN54 series
Frequently bought together
Edwards
Edwards GSEFB-E Strobe Expander, White, Fire, Vertical, Strobe Bottom
Sale price£39.90
In stock
Edwards
Edwards GSEFL-E Strobe Expander, White, Fire, Horizontal, Strobe Left
Sale price£39.90
In stock
Edwards
Edwards GSEFR-E Strobe Expander, White, Fire, Horizontal, Strobe Right
Sale price£39.90
In stock
Edwards
Edwards GSEFT-E Strobe Expander, White, Fire, Vertical, Strobe Top
Sale price£39.90
In stockProduct details

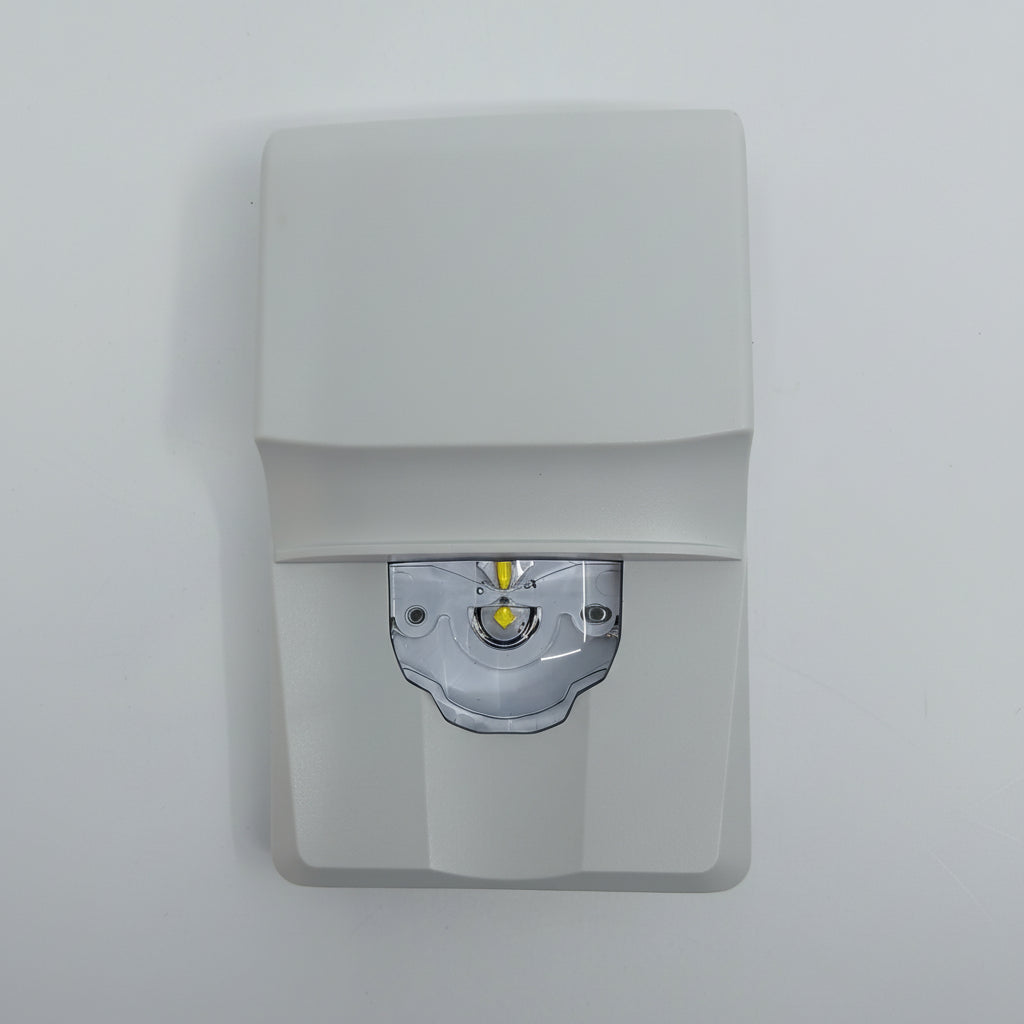

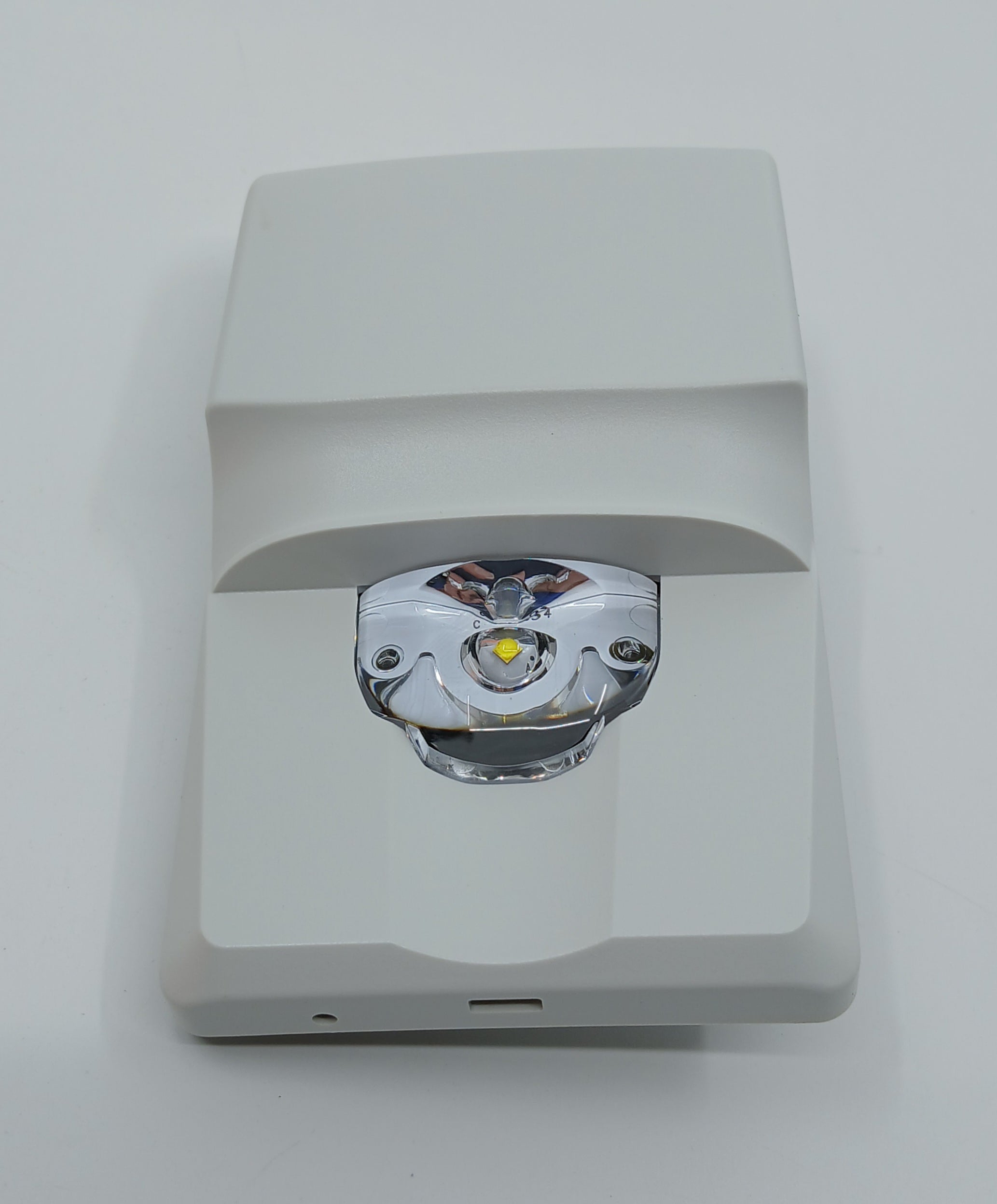

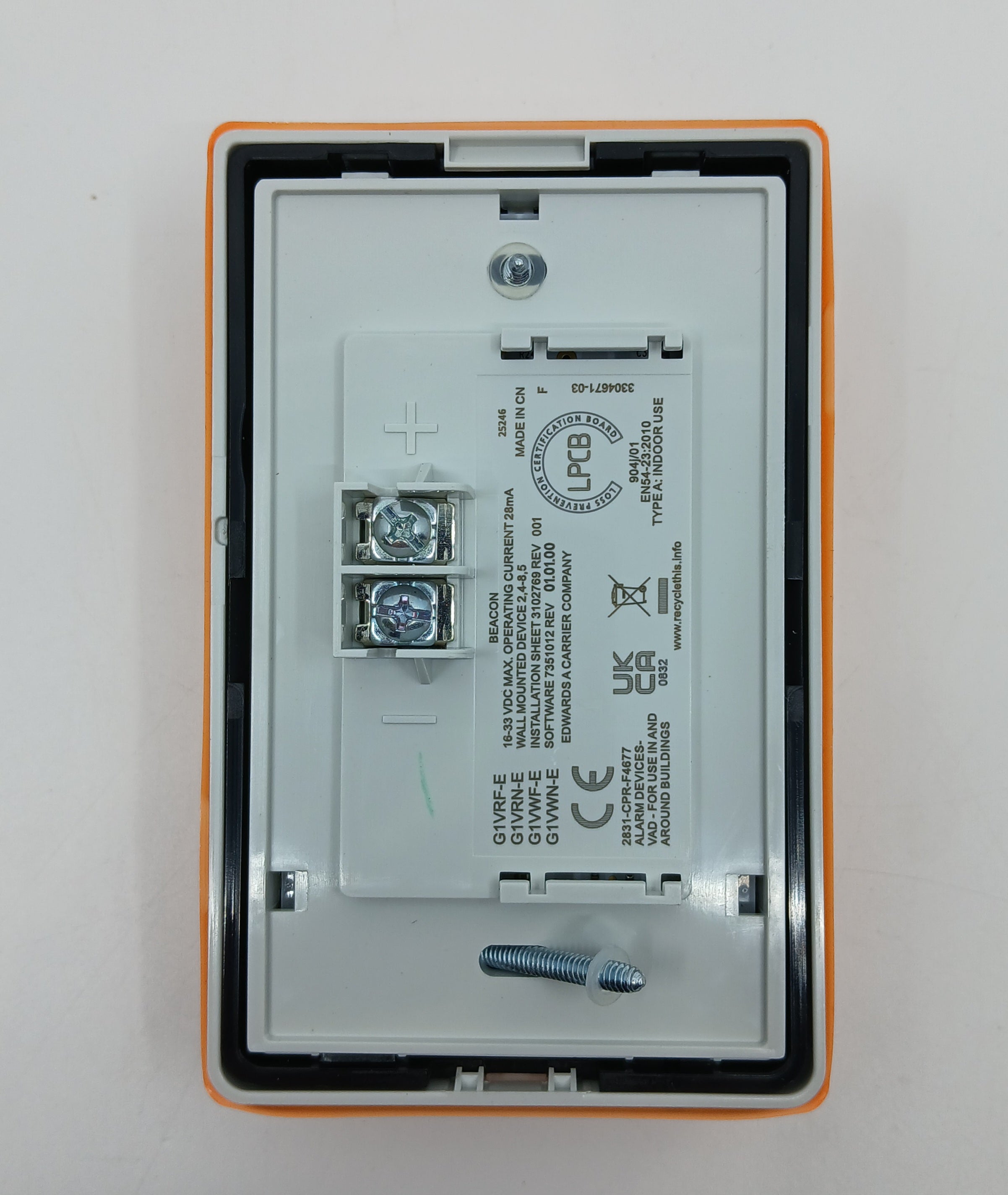

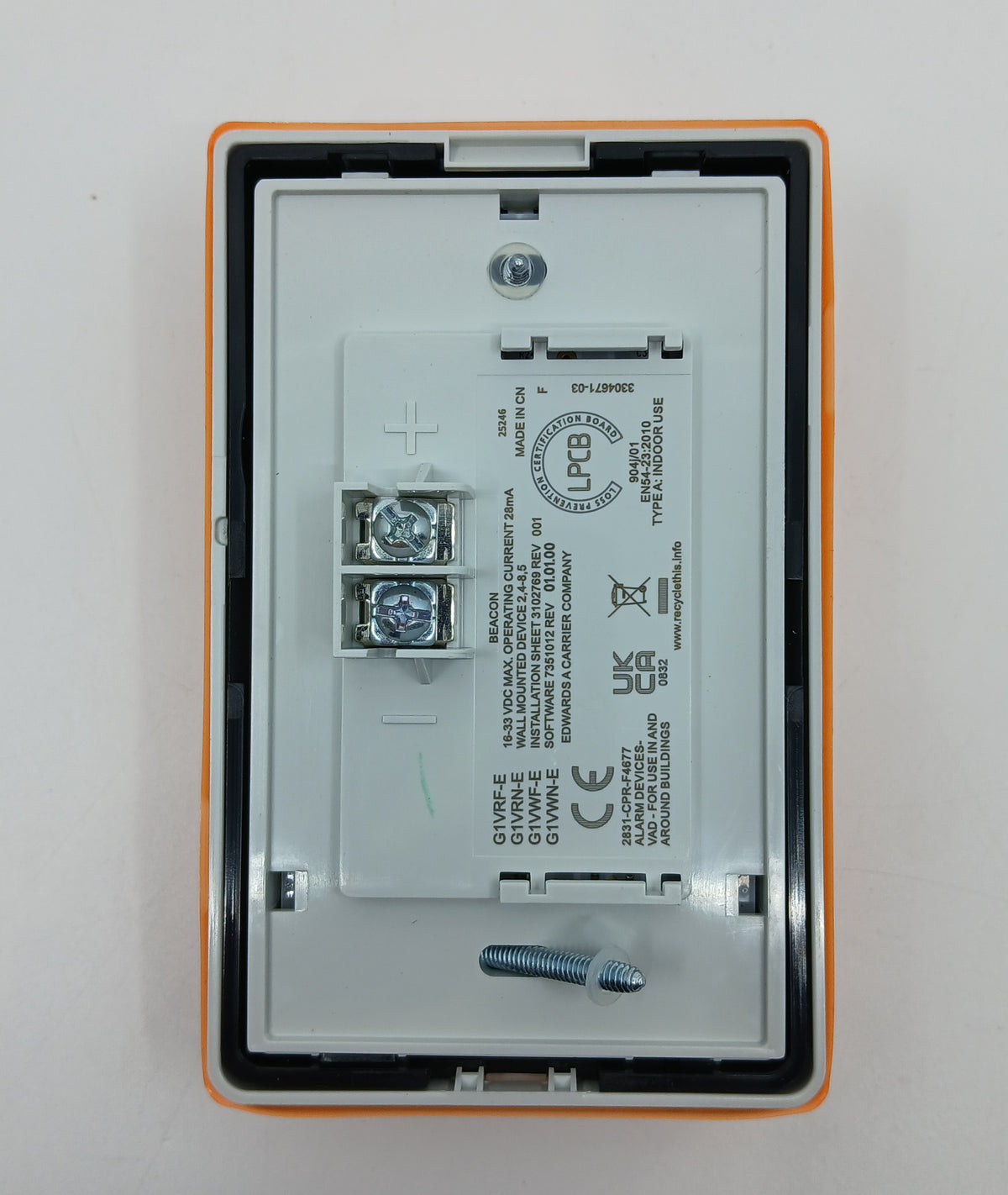

The Edwards G1VWN-E is a Genesis LED G1 series compact wall-mount LED strobe (visual alarm device/beacon) for EN 54 fire alarm systems, with a white housing and no marking. High-efficiency optics and patented electronics give ultra-low current consumption, and it is listed in Edwards' EN54 version EST4 submittal guide.
Key features
- High-performance LED strobe with W-2.4-8.5 cuboid coverage
- Ultra-low current consumption of only 24 mA DC
- Enhanced synchronisation circuitry: 1 flash per second, within 10 ms over a two-hour period on a common circuit
- Backwards compatible and can be used in the same field of view as Genesis xenon strobes
- Compact, low-profile wall appliance about the size of a deck of playing cards
- Part of the Genesis LED G1 EN54 series

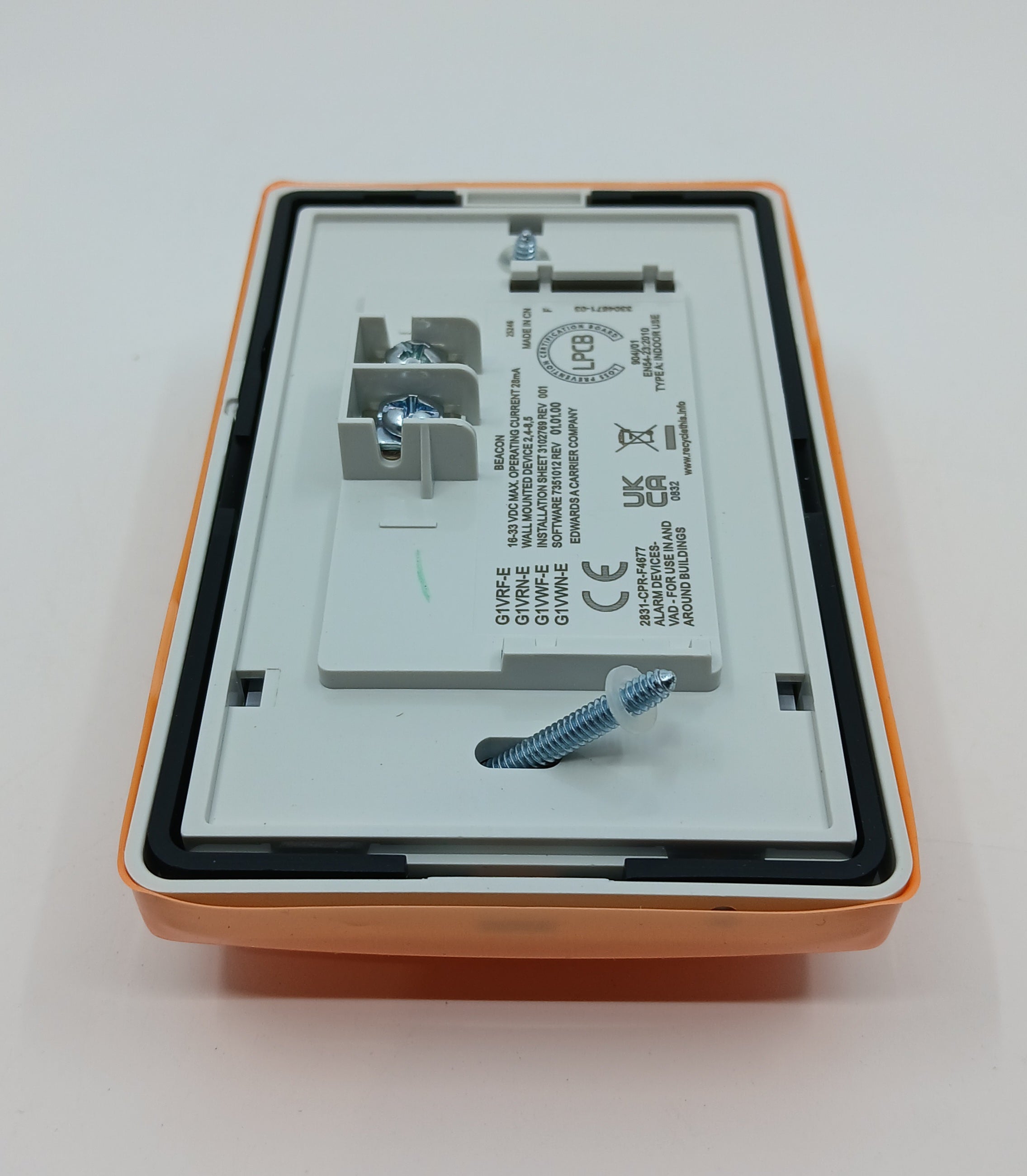

- Class A or Class B notification appliance circuit wiring
- #18 to #12 AWG terminals, ideal for long runs and existing wiring
Technical specifications
- Function: LED strobe only
- Current: 24 mA DC
- Coverage: W-2.4-8.5 (cuboid)
- Flash rate: 1 flash per second (synchronised)
- Circuit: supervised signal circuit, 20 to 24 VDC
- Housing: white, no marking
- Mounting: wall (one-gang surface mount box G1WB-E white available; G1TW white trim ring)
- Standards: synchronisation circuitry designed to comply with EN 54-3 and EN 54-23
- Terminals: #18 to #12 AWG
- Data sheet reference: E85001-0701
