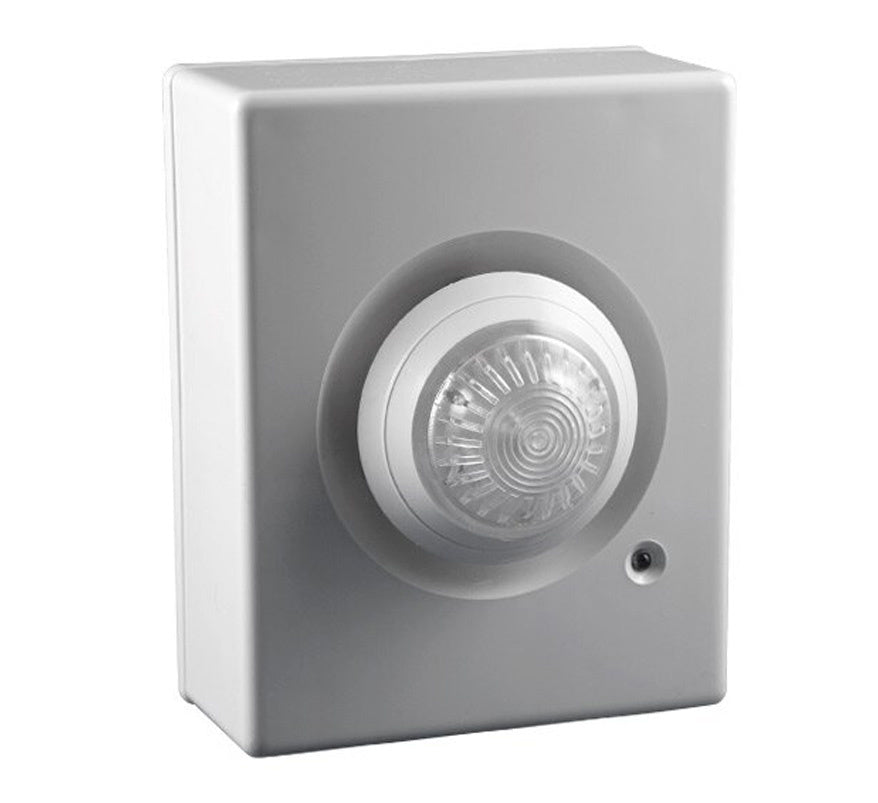

The Electro Detectors EDA-A6030 is a battery-powered radio sounder with LED beacon for the Zerio Plus wireless fire alarm system. It is fully addressable, controlled and monitored by radio from the Zerio Plus control panel, and cannot be used with other Electro Detectors ranges. It is type approved to EN 54-25.
Key features
- Powered entirely by internal batteries, with a battery life of up to around 5 years
- Fully addressable; can be assigned to a sounder area or group to allow phased or sector evacuation
- Continuously listens for instructions from the panel and makes frequent supervisory transmissions so that loss of communication is reported
- Reports faults including unit removal, low battery, receiver failure and battery fault
- Swept evacuate tone and pulsed alert tone, with beacon operation set by the panel’s cause and effect
- Programmable output timeout from continuous up to 900 minutes, in 30-minute steps
- Low-battery warning at the panel, with at least 60 days’ further operation
- Designed and manufactured in Harlow, Essex
Technical specifications
-
Part number: EDA-A6030
-
System: Electro Detectors Zerio Plus
-
Radio frequency: 868MHz, narrow-band FM, 13 channels
-
Sound output: Approximately 100dB at 1m at maximum volume (not measured to EN 54-3)
-
Swept tone: 1056Hz to 918Hz in 500ms
-
Batteries: 3 x EDA-Q690 battery packs (2 x AA lithium thionyl chloride cells each)
-
Battery life: Approximately 5 years
-
Operating temperature: 0 to 60°C
-
Humidity: 0 to 95% (no condensation)
-
Dimensions (including base): 145 x 115 x 70mm (H x W x D)
-
Weight (including base): Approx. 200g
-
Casing: Injection-moulded UV-stabilised ABS
-
Fixing: 2 x 4mm holes (No. 6 screws), 116mm spacing
-
Environment: Type A, indoor use
-
Certification: EN 54-25:2008 (0359-CPR-00235)
