Elmdene G13802BM-A Switch Mode Power Supply Unit with Battery Monitoring, 12V DC 2A, H200xW230xD80mm
SKU: G13802BM-ABrand: Elmdene by Potter
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 24 | 2 to 3 working days |
Elmdene G13802BM-A Switch Mode Power Supply Unit with Battery Monitoring, 12V DC 2A, H200xW230xD80mm
£63.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 13.8V dc output
- 90 to 264V ac input range
- Cost effective switch mode technology
- Energy efficient
- Full current to load plus additional current tocharge standby battery
- Deep discharge protection
Frequently bought together
Elmdene by Potter
Elmdene G13802N-B Switch Mode Power Supply Unit, 12V DC 2A, H330xW355xD80mm
Sale price£53.55
In stock
Elmdene by Potter
Elmdene G13802N-C Switch Mode Power Supply Unit, 12V DC 2A, H275xW330xD80mm
Sale price£48.40
In stock
Elmdene by Potter
Elmdene G13802NU Switch Mode Power Supply Unit, 12V DC 2A, Module only
Sale price£33.30
In stockProduct details

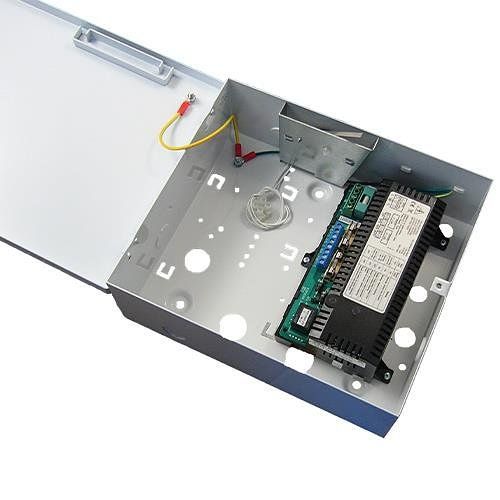

12V (13.8V dc ) 2A SMPSU with battery Monitoring - Metal Box 230Wx200Hx80D mm
Main Features
- 13.8V dc output
- 90 to 264V ac input range
- Cost effective switch mode technology
- Energy efficient
- Full current to load plus additional current tocharge standby battery
- Deep discharge protection
- Mains and battery monitoring
Specifications
| Amperage | 2.00A |
|---|---|
| Compatibility |
|
| Depth | 80.00mm |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Boxed; Unboxed |
| Height | 200.00mm |
| Input Voltage | 120V AC; 230V AC |
| Limited Warranty | Lifetime |
| Output Current | 2.0000A |
| Output Voltage | 12V DC |
| Product Line | G Range |
| Product Series | BM |
| Product Type | Power Supply |
| Width | 230.00mm |
| Certifications & Standards | EN50131-6 |
| Manufacturer | Potter Electric Signal, LLC |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Elmdene G13802BM-A Switch Mode Power Supply Unit with Battery Monitoring, 12V DC 2A, H200xW230xD80mm Product datasheet · G13802BM-A · PDF Open datasheet
