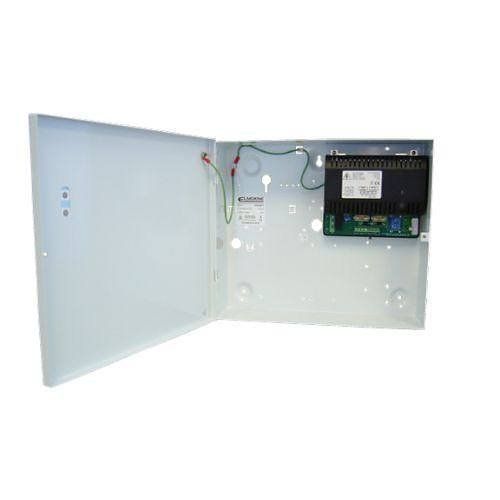

Name: Elmdene G2403BM-C Switch Mode Power Supply Unit with Battery Monitoring, 24V DC 3A, H275xW330xD80mm
Brand: Elmdene by Potter
SKU: G2403BM-C
Price: 133.25 GBP
Availability: InStock

Elmdene G2403BM-C Switch Mode Power Supply Unit with Battery Monitoring, 24V DC 3A, H275xW330xD80mm

Roll over image to zoom in Click on image to zoom

24V Switch Mode PSU (27.6V) 3Amp to load + 0.5A battery charging. Efficient Switch Mode operation. Mains and Battery monitoring with independent volt free fault outputs. Deep discarge protection. Multi LED status indication. Fit up to 2x7Ah battery.

Main Features

3Amp To Load
24V Switch Mode PSU (27.6V)
Efficient Switch Mode operation
Mains and Battery monitoring with independent volt free fault outputs
Deep discharge protection
Fit up to 2x7Ah battery
'C' Box: 275h x 330w x 80d
Hinge lid

Specifications

Amperage	3.00A
Compatibility	Fire And Access Control
Depth	80.00mm
Environmental Certification	CE
Environmentally Friendly	Yes
Height	275.00mm
Input Voltage	120V AC; 230V AC
Limited Warranty	3-Year
Mount Type	Junction Box Mount
Output Current	3.0000A
Output Voltage	27.6V DC
Product Line	G Range
Product Series	BM
Product Type	Power Supply
Weight	4.10kg
Width	330.00mm
Country of Origin	UK
Manufacturer	Potter Electric Signal, LLC
Modular	Yes
RoHS Compliant	Compliant
WEEE Compliant	Compliant
