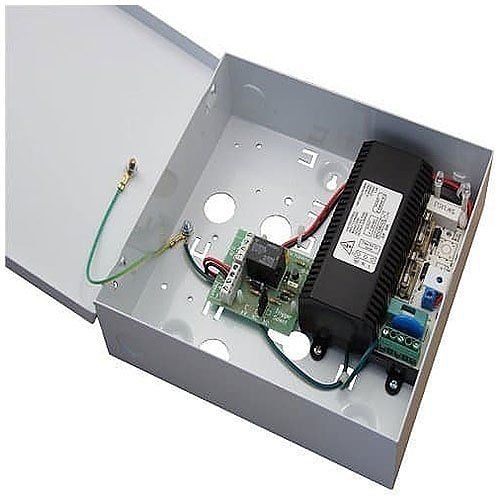

Elmdene TRS1 24V DC, 27.6V, 1A Low Profile Door Retainer PSU, J-Enclosure 185h x 200w x 60d

The new Elmdene TRS range of power supplies has been specifically designed for access control applications that require remote control of the power supply output. A typical example being where a TRS power supply unit is used to power magnetic door retainers; utilising a signal from the fire panel in order to switch off the output to the doors in the event of a fire alarm activation. The TRS PSU has a range of input options which includes the detection of a normally closed contact going open and also removal of a 24V dc signal to provide a fully fail safe operation mode (BS 7273 Compliant). The three control input options for remote control of the output are as follows: Removal of an external 24V dc supply (BS 7273 Compliant). Opening of a normally closed volt-free contact. Closing of a normally open volt-free contact. LED status indicators provide quick diagnostics showing the presence of a mains input and output fuse failure. The products use energy efficient switch mode technology and have a universal mains supply input (90-264V ac).
