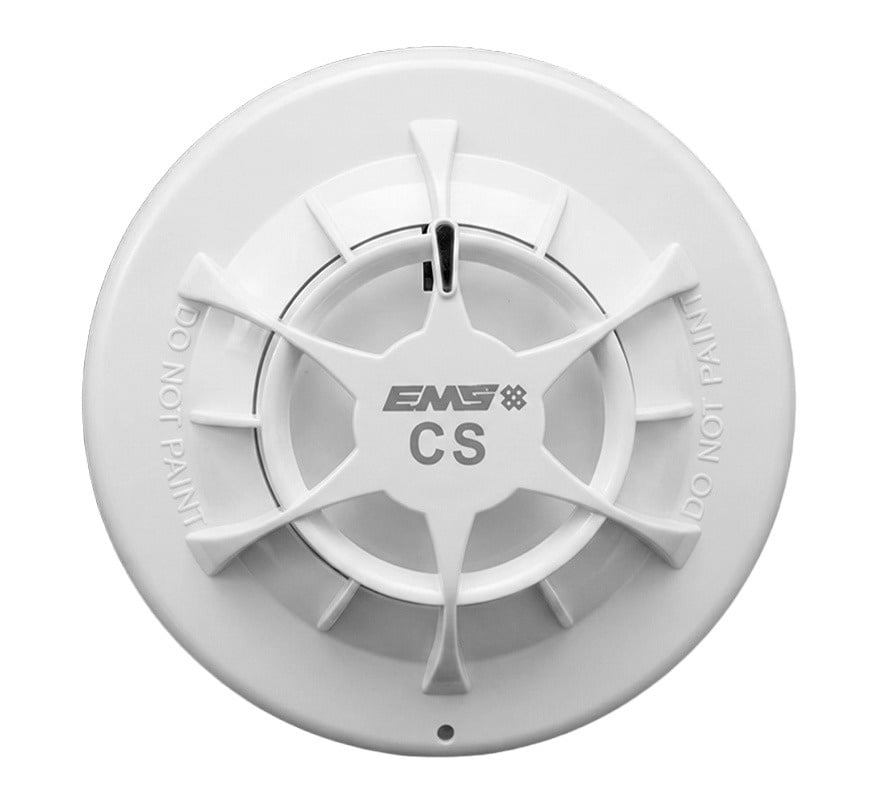

EMS FireCell Class CS Heat Detector (Head Only) (FCX-176-001)

The EMS FCX-176-001 is a Class CS fixed-temperature heat detector head for the EMS FireCell wireless fire system. FireCell wireless detectors consist of an interchangeable detector and a wireless base; this is the detector head only, and fits the FCX-170-001 FireCell wireless detector base (sold separately).

Key features

• EN 54-5 Class CS fixed-temperature heat detection
• Dual-band 868MHz operation with auto-adjusting power output
• Fire indication LED
• Anti-tamper locking mechanism
• FasTest detector maintenance feature
• Individually addressed at the fire control panel
• Compatible with the EMS FireCell system, including the Fusion RLM
• Third-party EN certified to EN 54-5 and EN 54-25
• Wireless base not included

Technical specifications

• Part number: FCX-176-001 (CS heat detector only)
• Class (EN 54-5): CS
• Application temperature: 55°C typical, 80°C max.
• Static response temperature: 84°C min., 90°C typical, 100°C max.
• Compatible base: FCX-170-001 wireless detector base
• Radio frequency: 868MHz, 0 to 14dBm (auto adjusting)
• Range: Up to 1250m clear line of sight
• Power (in wireless base): 6 x AA alkaline
• Operating temperature: -10 to 55°C
• IP rating: IP23, indoor use only
• Complete detector with base (Ø x D): 113 x 76mm, 0.4kg
• Certification: 0359-CPR-0015 / 0359-CPR-0041; EN 54-5, EN 54-25
