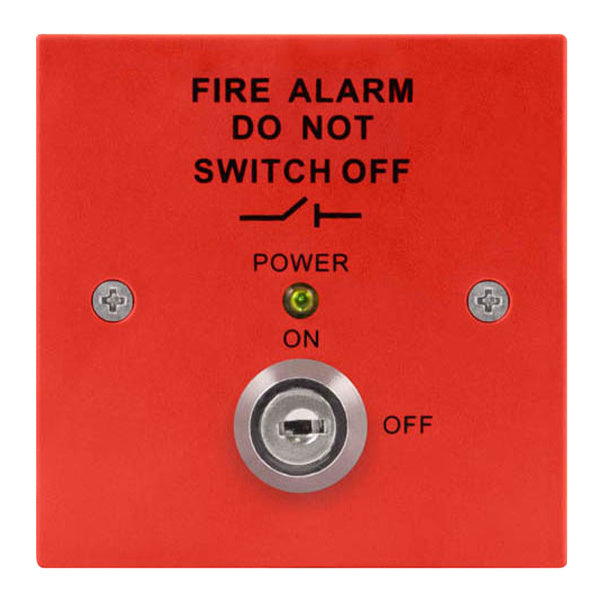

The ESP MAGISORP is a key-operated fire alarm mains isolation switch (red) for isolating the 240V AC mains supply to a fire alarm system. It switches both live and neutral, so the panel supply can be isolated safely for maintenance and protected against tampering.
Key features
- Complies with BS 5839-1
- Isolates the mains voltage supply to the fire alarm system
- Key-operated for safe maintenance and protection against tampering
- Double pole: both live and neutral are switched
- LED power indicator
- Surface or flush mounting (surface back box supplied)
Technical specifications
-
ESP part code: MAGISORP
-
Colour: Red
-
Material: ABS
-
Supply voltage: 240V AC
-
Output rating: 240V AC @ 6A
-
Switching type: Double pole
-
Switch type: Key
-
Power indicator: LED on
-
Maximum cable size: 2.5mm²
-
Dimensions: 86.5 × 86.5 mm
