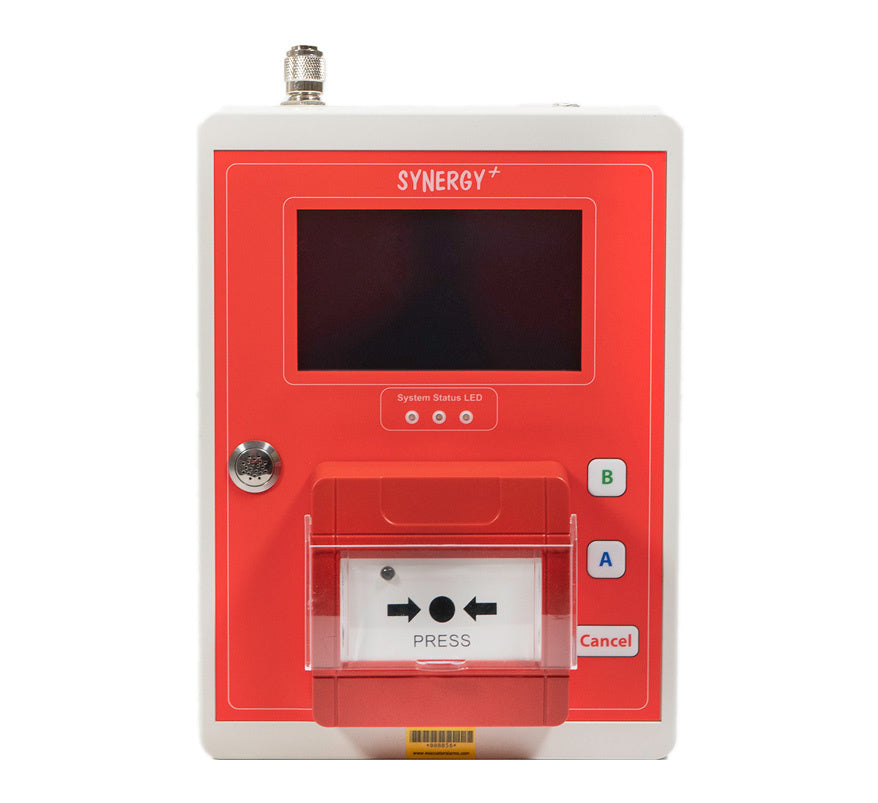

Evacuator Synergy+ Wireless Site Alarm Touch-Screen Base Station (FMCEVASYNP2)

The Evacuator Synergy+ TS Base Station (FMCEVASYNP2) is the mains-powered, touch-screen control unit for the Evacuator Synergy+ wireless temporary fire alarm system. It monitors up to 250 wireless devices and shows fire alerts, first aid calls and device status on a colour-coded 480 x 272 display.

It suits construction sites, refurbishments and other temporary environments. Besides the standard Type 2 system, it supports zoned Type 3 and Type 4 systems, which need an engineer visit to set up. Units with V3 software (serial number BBBB1037 onwards) add Fast Pair, Test/Service mode, Double Knock/Pre-Alarm and Locate mode. The base station can be wall or desk mounted and has a built-in manual call point.

Key features

• Connects up to 250 Synergy+ devices with secure pairing
• 480 x 272 touch-screen with colour-coded device identification
• First aid call function and system status indication
• Zoning function; engineer and supervisor modes
• Built-in EN54 compliant manual call point
• 85dB buzzer and auto site reset function
• Fire log of the last 10 activations
• V3 software: Fast Pair, Test/Service mode, Double Knock/Pre-Alarm and Locate mode
• Mesh radio connectivity on 869MHz with a Category One radio module
• Optional battery back-up (separate device)
• CE, UKCA, RoHS and EMC compliant

Technical specifications

• Product code: FMCEVASYNP2
• Capacity: up to 250 devices
• Display resolution: 480 x 272
• Buzzer: 85dB
• Radio frequency: 869MHz
• Power: mains only, via 4.5V transformer
• IP rating: indoor only
• Mounting: wall or desk
• Dimensions: H 225 x W 166 x D 75mm

What's in the box

• 4.5V transformer
• Call point reset key
