FFE Fireray 3000 End-to-End Infrared Beam Smoke Detector Kit (3000-101)
SKU: 3000-101Brand: Fire Fighting Enterprises
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
FFE Fireray 3000 End-to-End Infrared Beam Smoke Detector Kit (3000-101)
£561.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Light Cancellation Technology™
- Integral laser alignment in the receiver for single-person alignment
- Thumbwheels on transmitter and receiver give 10° of adjustment in both planes
- 2-wire interface between controller and receiver
- Single and twin detector options, with separate fire and fault relays per detector
- Low-level controller with LCD display for commissioning, testing and maintenance
Frequently bought together
Fire Fighting Enterprises
FFE Fireray 4 Reflector Adjustment Bracket with Prism Plate (1050-000)
Sale price£442.50
Out of stock. Lead time 2 to 6 weeks, estimate only
Fire Fighting Enterprises
FFE Fireray 5000 Motorised Reflective Auto-Aligning Beam Smoke Detector - 100m (5000-102)
Sale price£526.50
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details
The FFE Fireray 3000 (3000-101) is an end-to-end infrared beam smoke detector system, EN version, for protecting large open areas with high ceilings and spaces where ceiling-mounted point detectors are hard to access. A transmitter projects an infrared beam to a separate receiver; when smoke crosses the beam and the signal falls below a pre-set threshold, an alarm is triggered.
A compact low-level controller with LCD display handles commissioning, testing and settings, and can power the transmitter directly. It suits narrow lines of sight and buildings with reflective surfaces, and its styling works in modern and heritage buildings alike. Fire and fault relays connect to a conventional fire alarm zone.
Key features
- Light Cancellation Technology™
- Integral laser alignment in the receiver for single-person alignment
- Thumbwheels on transmitter and receiver give 10° of adjustment in both planes
- 2-wire interface between controller and receiver
- Single and twin detector options, with separate fire and fault relays per detector
- Low-level controller with LCD display for commissioning, testing and maintenance
- Programmable sensitivity and fire threshold, contamination compensation
- Transmitter can be powered from the controller
- First-fix design and multiple cable gland knockouts
- Approvals include EN54-12 and UL268
Technical specifications
- Operating range: 5m to 120m (EN54)
- Operating voltage: 12 to 36V DC ±10%
- Controller current (with 1 or 2 receivers): 14mA constant
- Transmitter current: 8mA per transmitter
- Delay to alarm/fault: 2 to 30 seconds (1 second steps), 10 seconds typical
- Response threshold: 35% to 60% (1% steps)
- Laser time-out: 1 to 59 minutes (default 5 minutes)
- Fire and fault relay contacts: VFCO 2A at 30V DC resistive
- Optical wavelength: 850nm
- Operating temperature (non-condensing): -10°C to +55°C (EN54)
- Relative humidity: 93% (non-condensing)
- IP rating: IP54 (controller)
- Housing material: UL94 V2 PC
- Controller: 124 x 203 x 71.5mm (H x W x D), 606g
- Transmitter and receiver: 77 x 78 x 161mm (H x W x D), 207g

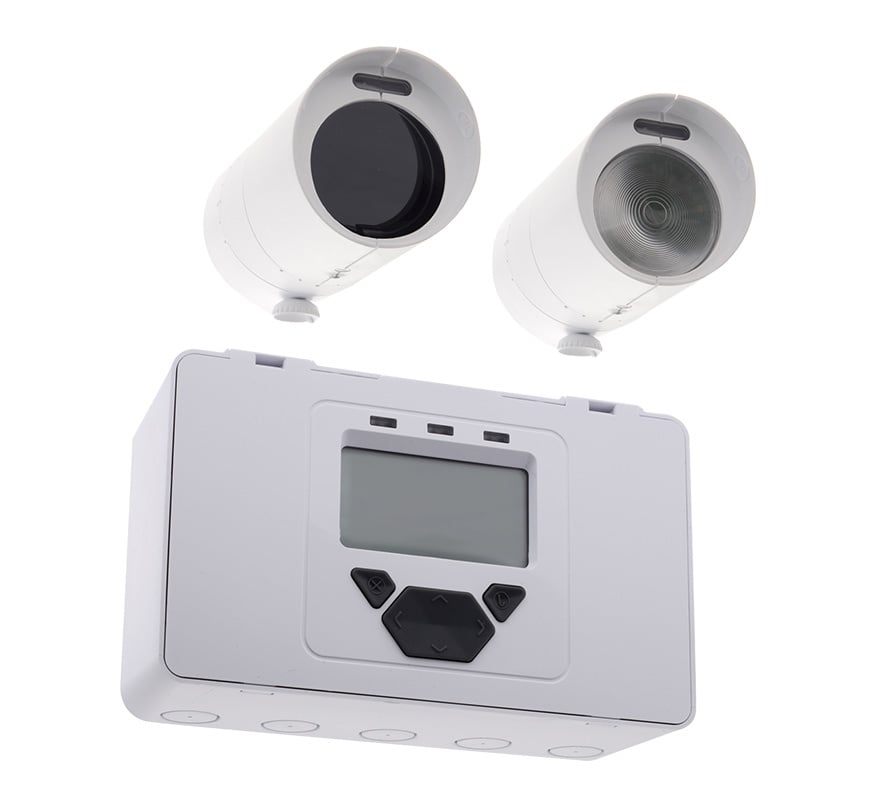

What's in the box
- 1 x transmitter (clear lens)
- 1 x receiver (dark lens)
- 1 x control unit
