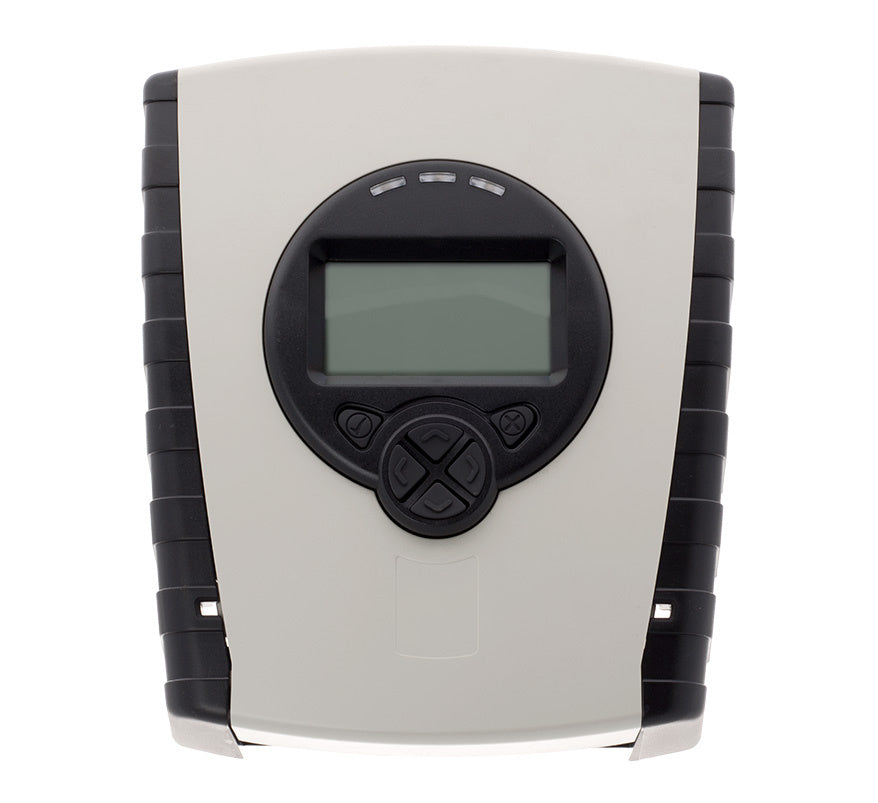

The FFE Fireray 5000 System Controller (5000-001) is the low-level controller for the Fireray 5000 motorised reflective, auto-aligning infrared beam smoke detector. One controller can run up to two detector heads and houses a separate pair of fire and fault relays for each detector.
The controller connects to each detector over a 2-wire interface and is used for laser-assisted alignment, Auto-Align, commissioning and settings, so the detectors can be managed from a convenient low level.
Key features
- Controls up to 2 Fireray 5000 detectors
- Separate fire and fault relays for each detector
- 2-wire interface from system controller to detector
- Activates the integral laser and Auto-Align for fast alignment
- Programmable sensitivity, fire threshold, and delays to alarm and fault
- Logs the 50 most recent events per detector
- 20 mm cable gland knockouts
Technical specifications
- Part number: 5000-001
- Operating voltage: 14 to 36 V DC
- Operating current: 5 to 6 mA with 1 detector; 7.5 to 8.5 mA with 2 detectors; 35 to 37 mA in alignment modes
- Fire and fault relays (VFCO): 0.1 to 36 V DC, 0.1 to 100 mA
- Response threshold: 0.45 to 3.98 dB (10% to 60%), default 35%
- Delay to alarm / fault: 2 to 30 s (default 10 s)
- Cable length to detector: up to 100 m, 2-core, 0.5 to 1.6 mm (24 to 14 AWG)
- Operating temperature: −10°C to +55°C
- Relative humidity: up to 93% (non-condensing)
- Dimensions including base (W x H x D): 202 x 230 x 87 mm
- Weight: 1 kg
