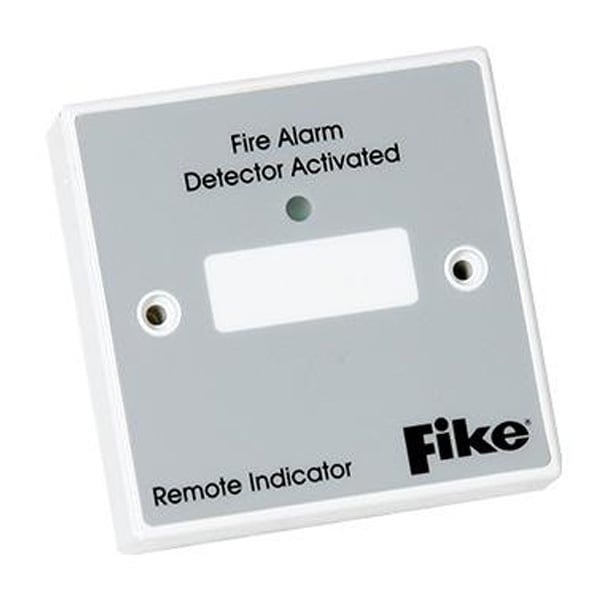

The Fike 600-0092 is a remote LED indicator for Fike multipoint ASD detectors.
Connected to the detector's remote LED terminals, it lights when that detector goes into alarm. It works with Sita addressable and Twinflex multipoint ASD detectors.
Key features
- Multifunction LED for connection to most common detectors
- Includes the 10 kΩ current-limiting resistor required for the Sita addressable multipoint ASD detector; no other components needed
- On Twinflex multipoint detectors it mimics the flash rate of the detector it is connected to
- Mounts on a single-gang back box
Technical specifications
- Part number: 600-0092 (Remote LED)
- Built-in resistor: 10 kΩ
- Mounting: single-gang back box (not supplied)
- Note: on Sita ASD detectors the remote LED output cannot be used at the same time as the auxiliary input/output
