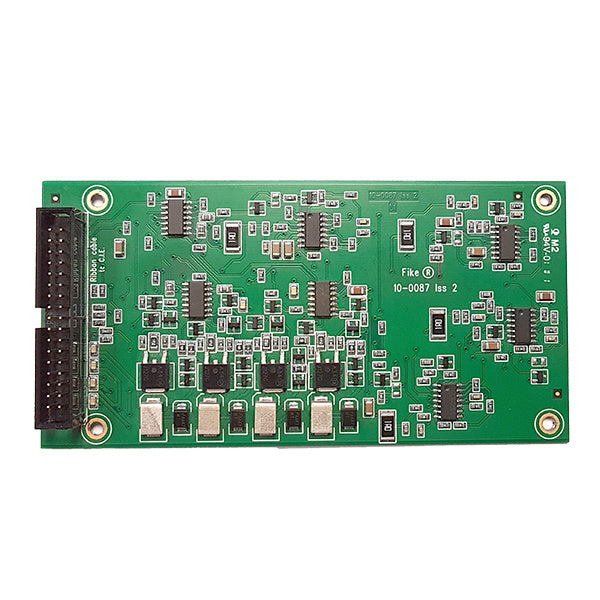

Fike TwinflexPro² Conventional Expansion Card (505-0007)

The Fike TwinflexPro² Conventional Expansion Card (505-0007) adds four conventional zones to a 4-zone TwinflexPro² control panel.

With the card fitted, zones 1 to 4 remain Twinflex 2-wire zones and zones 5 to 8 become conventional zones, so conventional detectors and call points can be connected to the Twinflex system.

Key features

• Adds 4 conventional zones (Z5 to Z8) to the 4-zone TwinflexPro² panel
• Fits inside the panel and connects to the CIE PCB expansion connector with a ribbon cable
• Field wiring for the new zones connects to the terminals on the panel CIE, not the card
• End-of-line diodes supplied for monitoring the conventional zones
• Panel detects the card automatically on power-up; unused zones are switched off in the engineer menu

Technical specifications

• Part number: 505-0007
• Compatible panel: 4-zone TwinflexPro² (not the 2-zone TwinflexPro², earlier TwinflexPro or Twinflex Checkpoint Plus panels)
• Conventional zones: 4 (Z5 to Z8)
• Maximum conventional devices per zone: 20
• Detector bases with integral continuity diodes, and call points with integral resistors, must be used on conventional zones
• Conventional zones cannot distinguish between smoke detector and call point alarms

What's in the box

• Conventional expansion card
• Ribbon cable
• 4 x M3 x 6 fixing screws
• End-of-line diodes
