Shop all FireClass

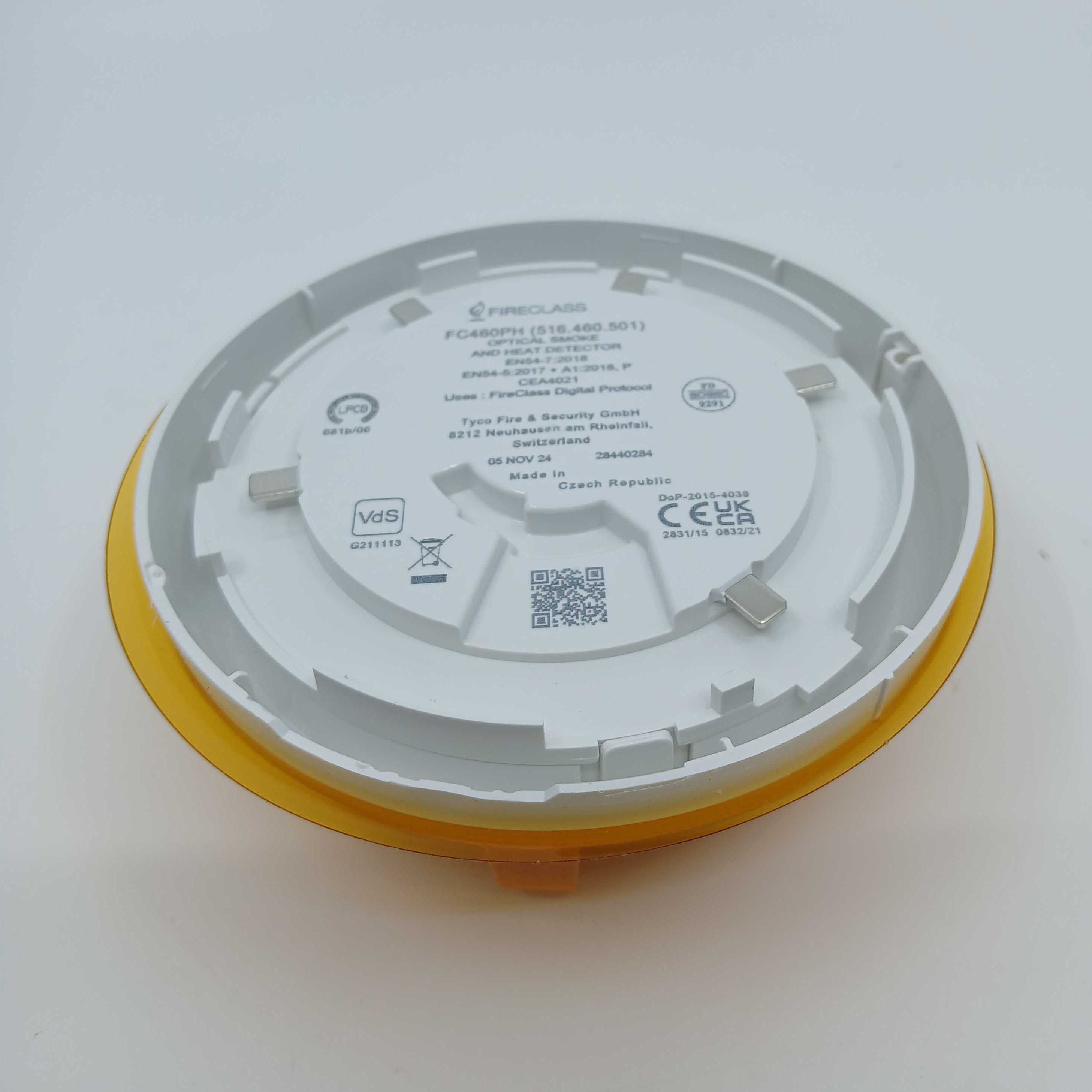

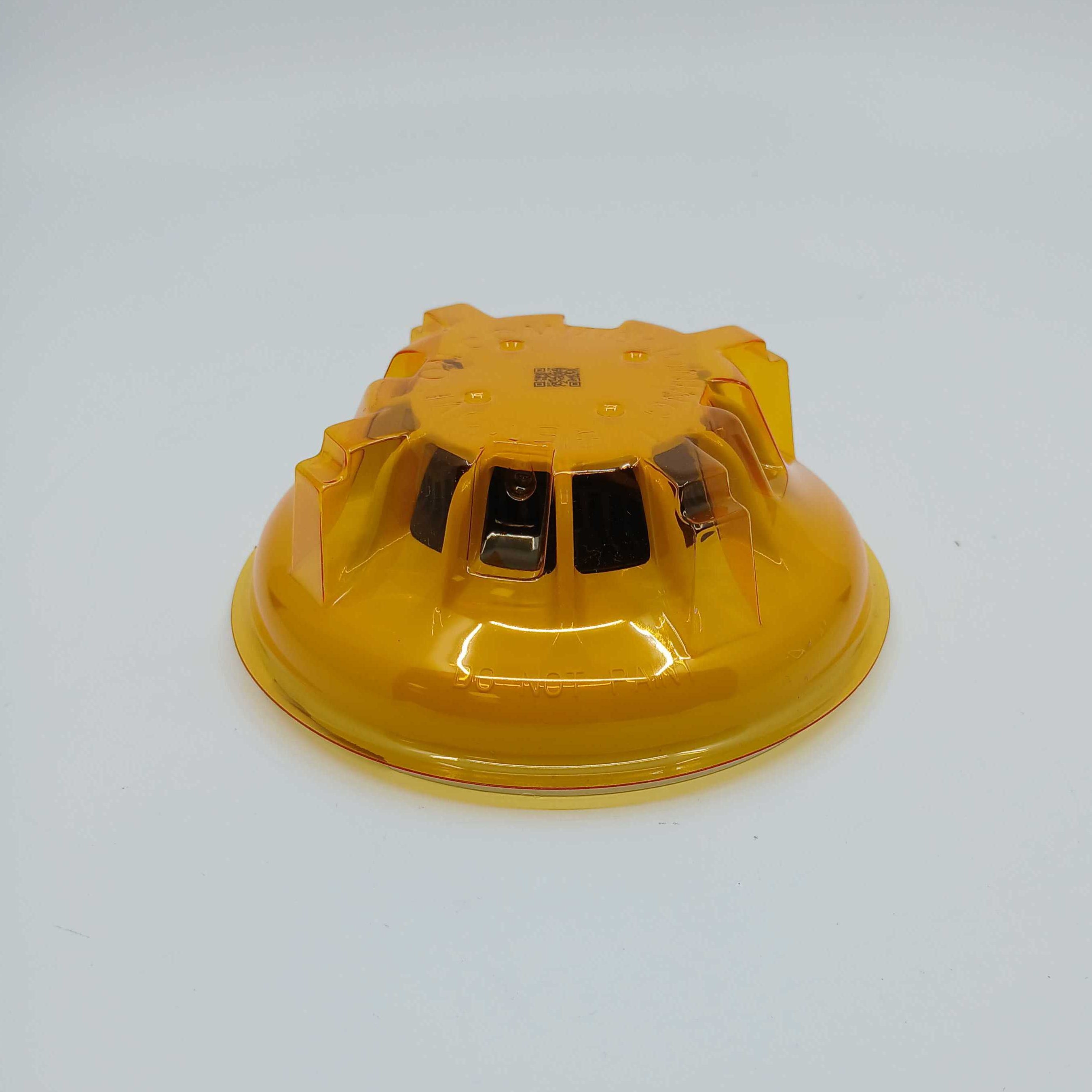

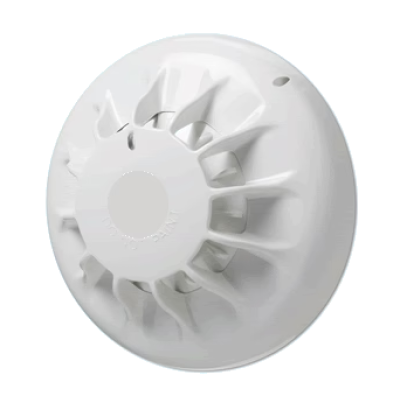

FireClass 516.460.501 FC460PH Combined Optical and Heat Detector
SKU: 516.460.501Brand: FireClass
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 56 | Same day dispatch |
| UK Hub | 0 | None at UK Hub |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
FireClass 516.460.501 FC460PH Combined Optical and Heat Detector
£21.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Combined optical smoke and heat sensing in one head
- FireClass digital protocol for robust communication
- Several approved modes and sensitivities that can be changed to suit the conditions
- Works with a wide range of cable types; open topology suits upgrades that reuse existing cabling
- Fits FireClass 4B and 4B-I bases
Frequently bought together
FireClass
FireClass 516.460.504 FC460PC Triple Sensor Smoke Heat CO Detector
Sale price£38.40
In stock
FireClass
FireClass 516.600.066 Minerva MX 601FEx Infra-Red Flame Detector
Sale price£294.55
In stock
Product details
The FireClass FC460PH (516.460.501) is a combined optical and heat multi-sensor detector for FireClass addressable fire alarm systems. It uses the FireClass digital protocol for reliable communication with the control panel, and it detects a wide range of fires, from fast flaming to slow smouldering. It is a good choice for light industrial, retail and office buildings.
Key features
- Combined optical smoke and heat sensing in one head
- FireClass digital protocol for robust communication
- Several approved modes and sensitivities that can be changed to suit the conditions
- Works with a wide range of cable types; open topology suits upgrades that reuse existing cabling
- Fits FireClass 4B and 4B-I bases
Technical specifications
- Order number: 516.460.501
- Type: digital addressable optical/heat multi-sensor
- Compatible bases: 4B and 4B-I
- Dimensions: 108mm diameter x 42mm high
- Material: flame retardant ABS
- Weight: 92g
- Operating temperature: -25°C to +70°C
- Storage temperature: -40°C to +80°C
- Relative humidity: up to 95%, non-condensing
- Approvals: EN 54-5 and EN 54-7 (certificate 0832-CPD-1884)
FireClass 516.460.501 FC460PH Combined Optical and Heat Detector
£21.95
