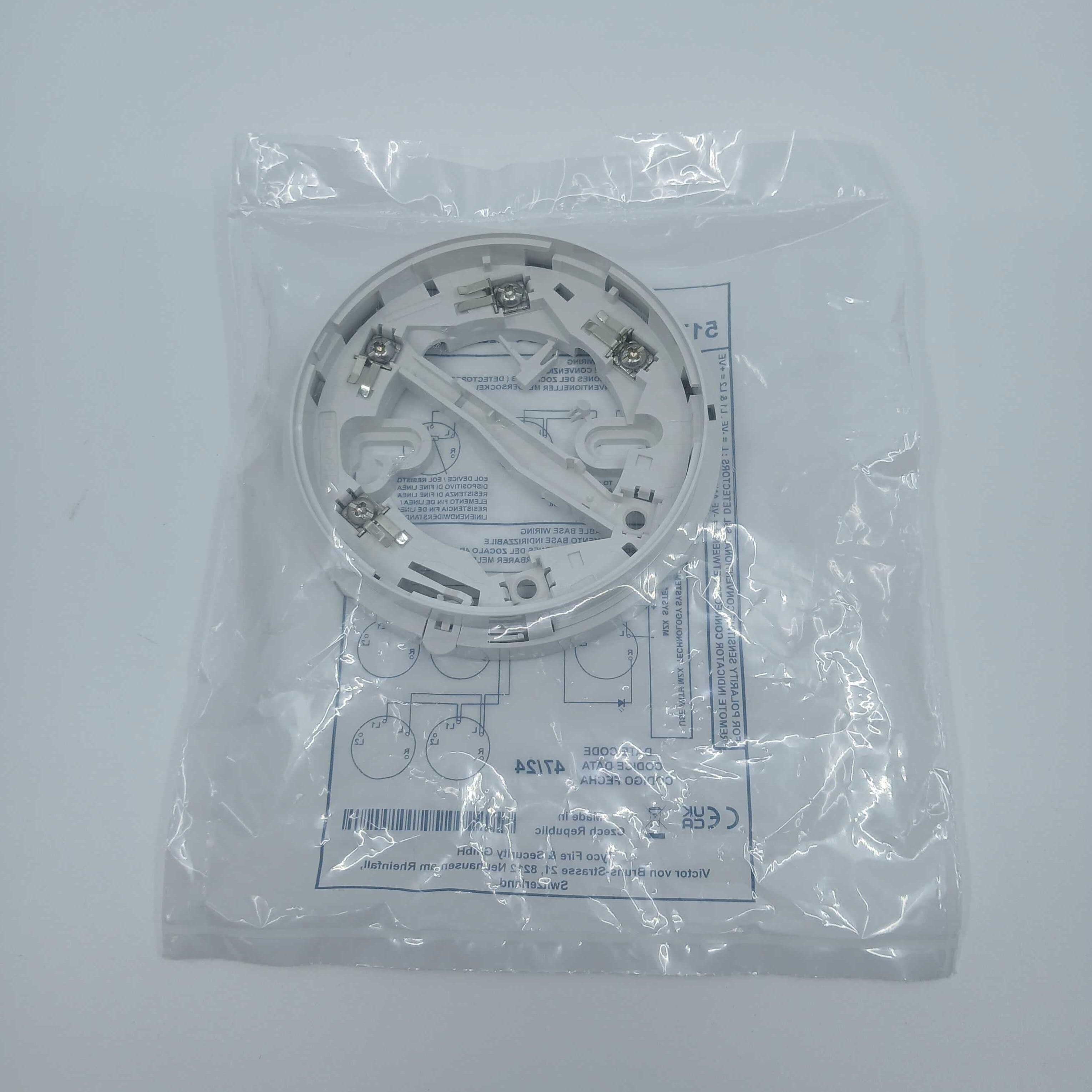

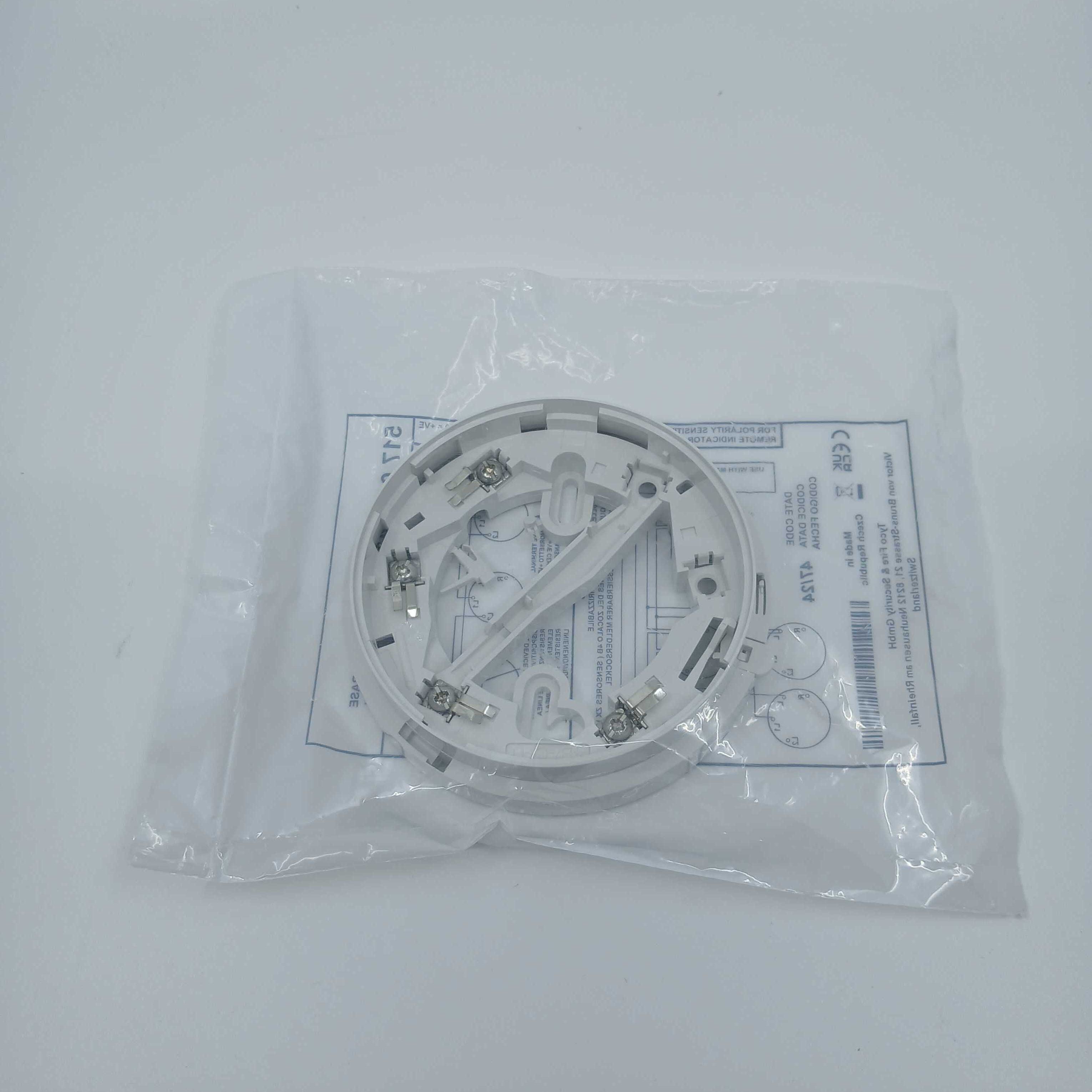

FireClass 517.050.041 Detector Base 4" for 600/800 Series

FireClass 517.050.041 Detector Base 4" for 600/800 Series

FireClass 517.050.041 is a detector base, used when neither a short circuit isolator nor a continuity functionality is required. The Tyco 4B Base is compatible with the Ceiling Tile Adapter, potentially decreasing the installation time by up to 30%. The Tyco 4B 517.050.041 is designed to snap-fit into the Ceiling Tile Adaptor. The base can also be screw fixed to a ceiling, electrical box, or deckhead mount in the traditional manner. A park position allows the detector to be mechanically attached to the 4B without making electrical connections to facilitate the testing of electronic-free bases. The base should be fixed with the park plunger faced towards the door or trafficable area. This ensures that the LED will be visible from the direction of entry, AS1670.1-2004. With a detector mounted in the Tyco 4B Base, a raised rib on both the base and detector align when the detector is in the fully home position.

• Continuity, Isolator and Universal variants

• Quick and easy to install

• Compatible with 800, 814, and 850 Series detectors
