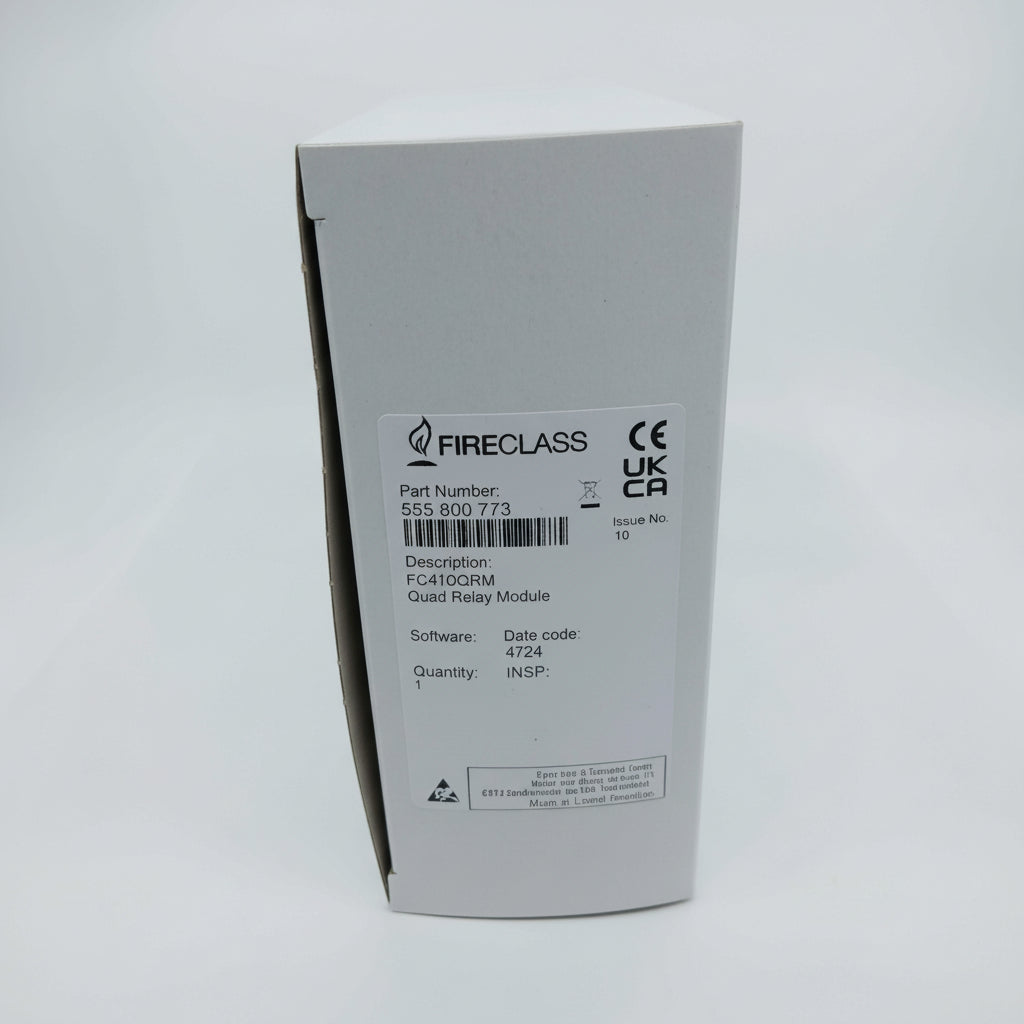

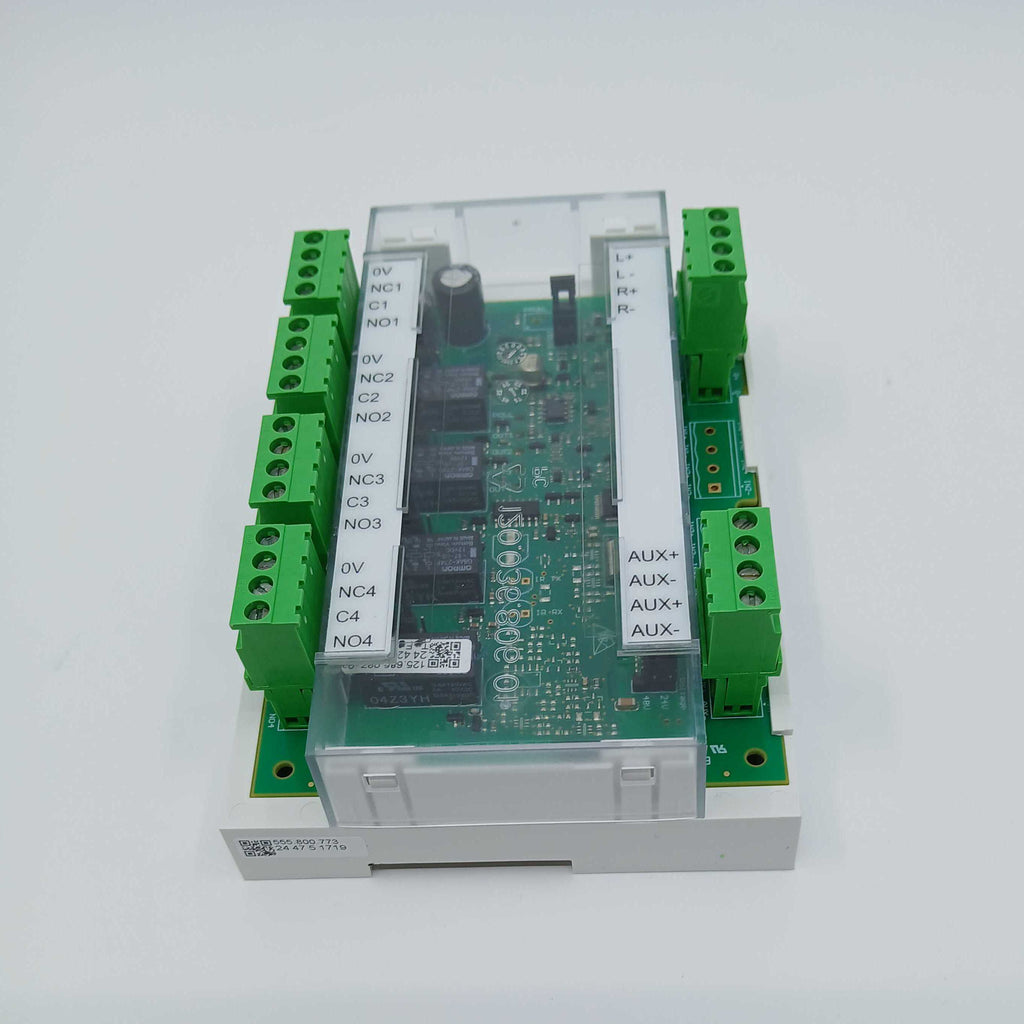

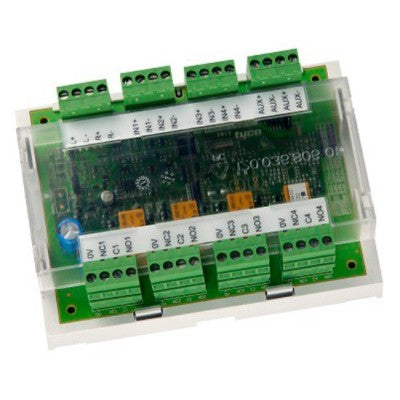

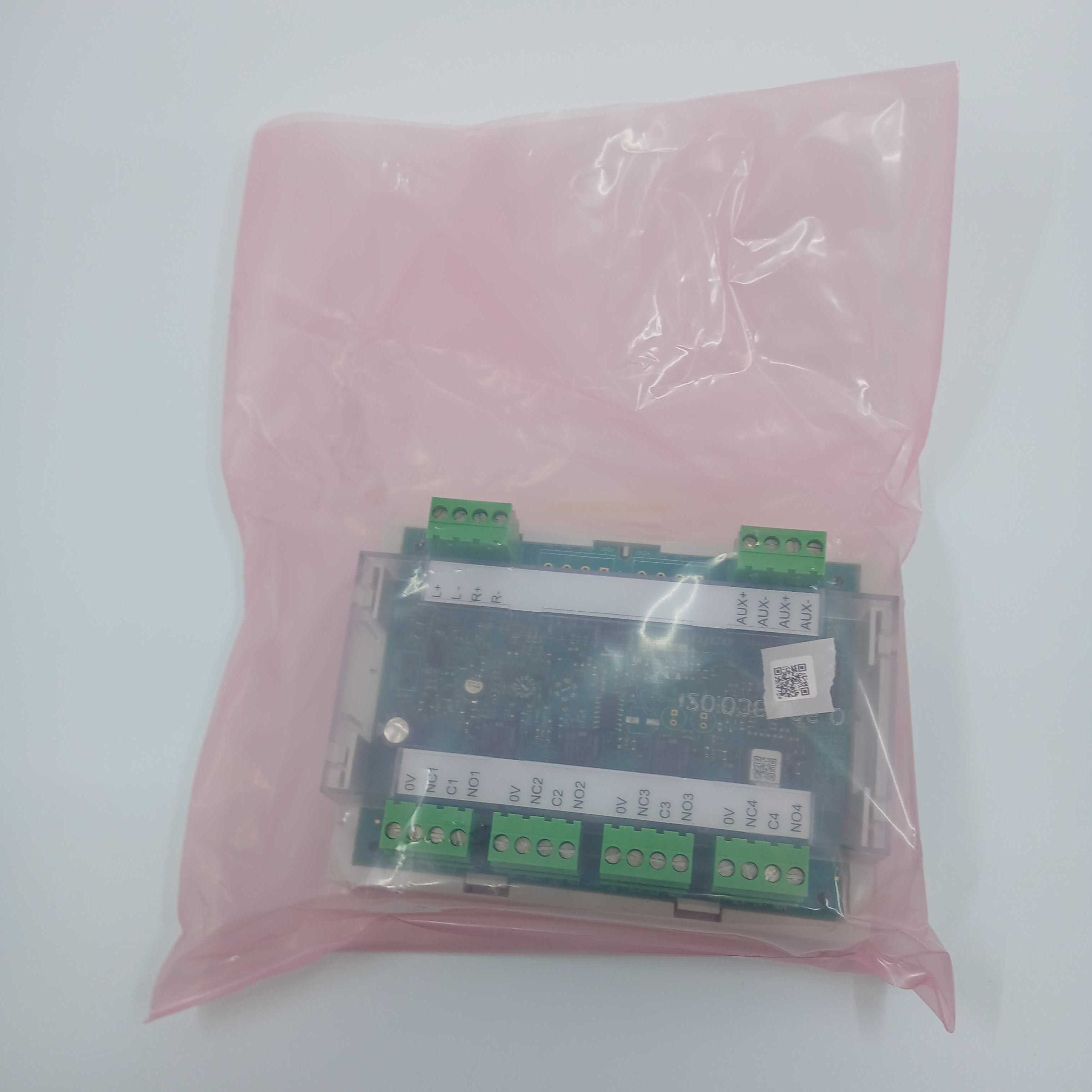

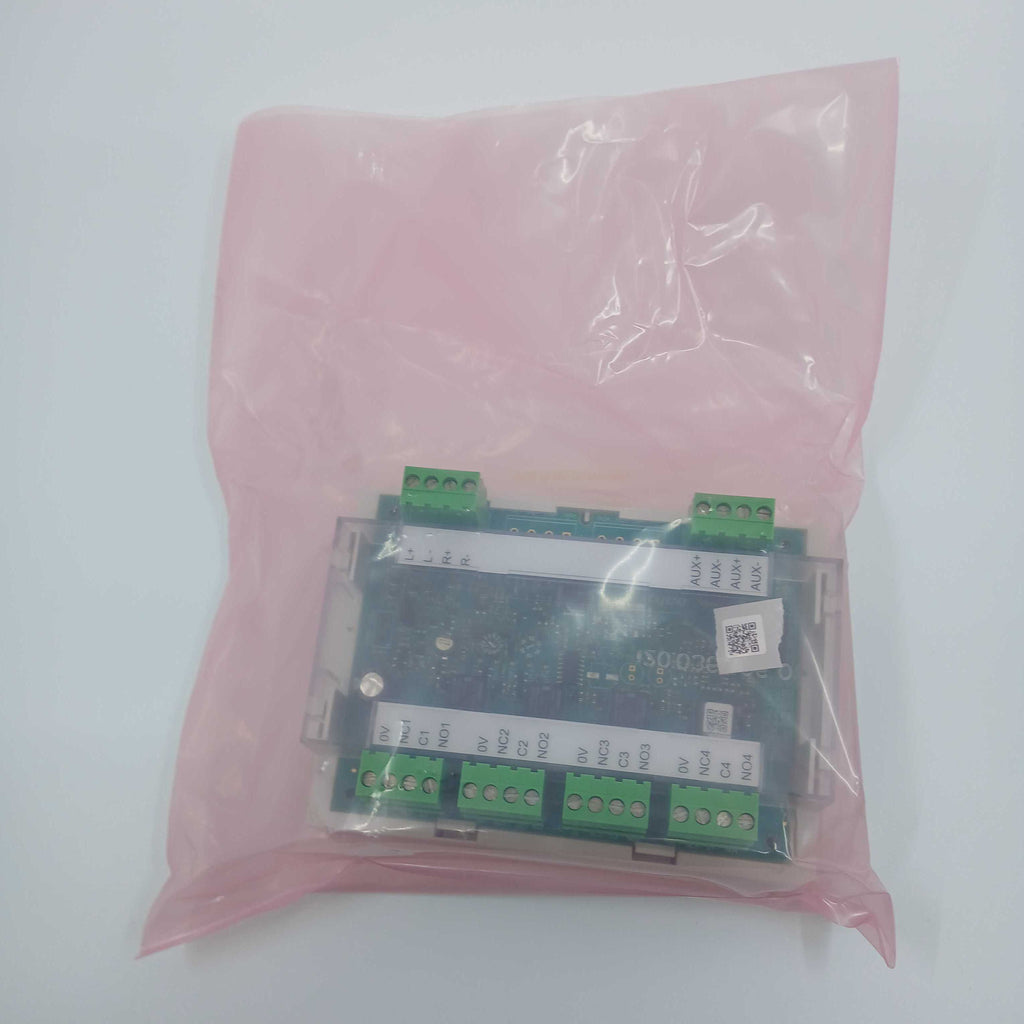

FireClass 555.800.773 FC410QRM Quad Relay Module
The FC410QRM Quad Relay Module is designed to provide four potential free relay changeover outputs. The outputs are monitored with parallel contacts of the relays. The outputs can be connected to an Auxiliary Voltage source and its voltage can be monitored.
The FC410QRM has an integral FireClass loop isolator. When a section of the loop adjacent is shorted, the isolator trips, isolating the shorted section, and illuminating a yellow LED. This status remains until the short is removed. The FC410QRM must be fitted in a control enclosure or any distributor enclosure. The FC410QRM will preferably be mounted via a DIN rail. Alternatively, it can be directly fixed on the rear side of the enclosure. Furthermore, all outputs are configurable to the HVR - mode (High Voltage Relay), which allows to connect up to four HVR800 modules for switching e.g. 240V loads galvanic isolated.
Key Features
Quad relay module with 4 changeover outputs
Monitored outputs with parallel relay contacts
Integral FireClass loop isolator for safety

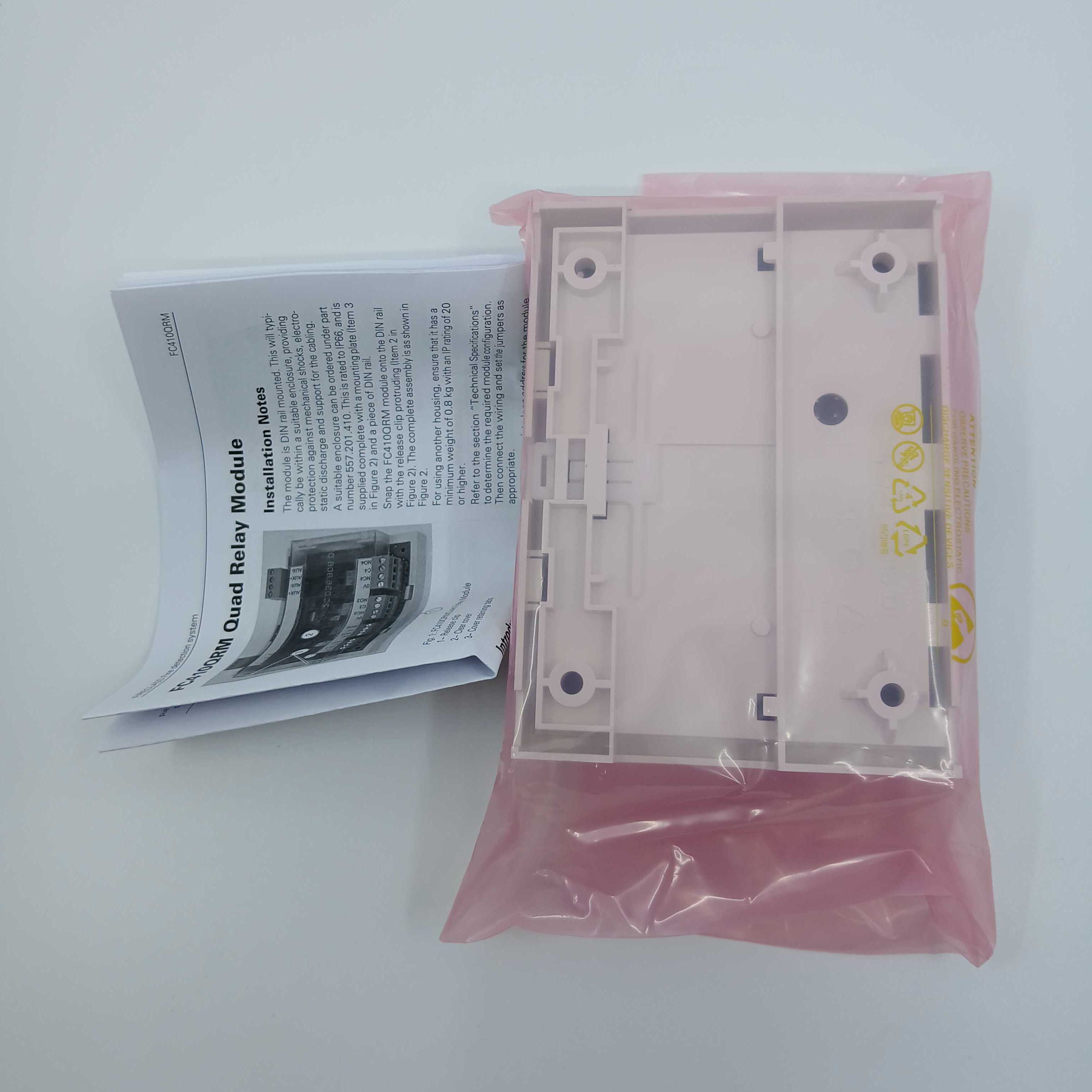

DIN rail or direct rear enclosure mounting
Configurable to HVR mode for high voltage
Supports up to four HVR800 modules
Illuminates yellow LED for short circuit indication
