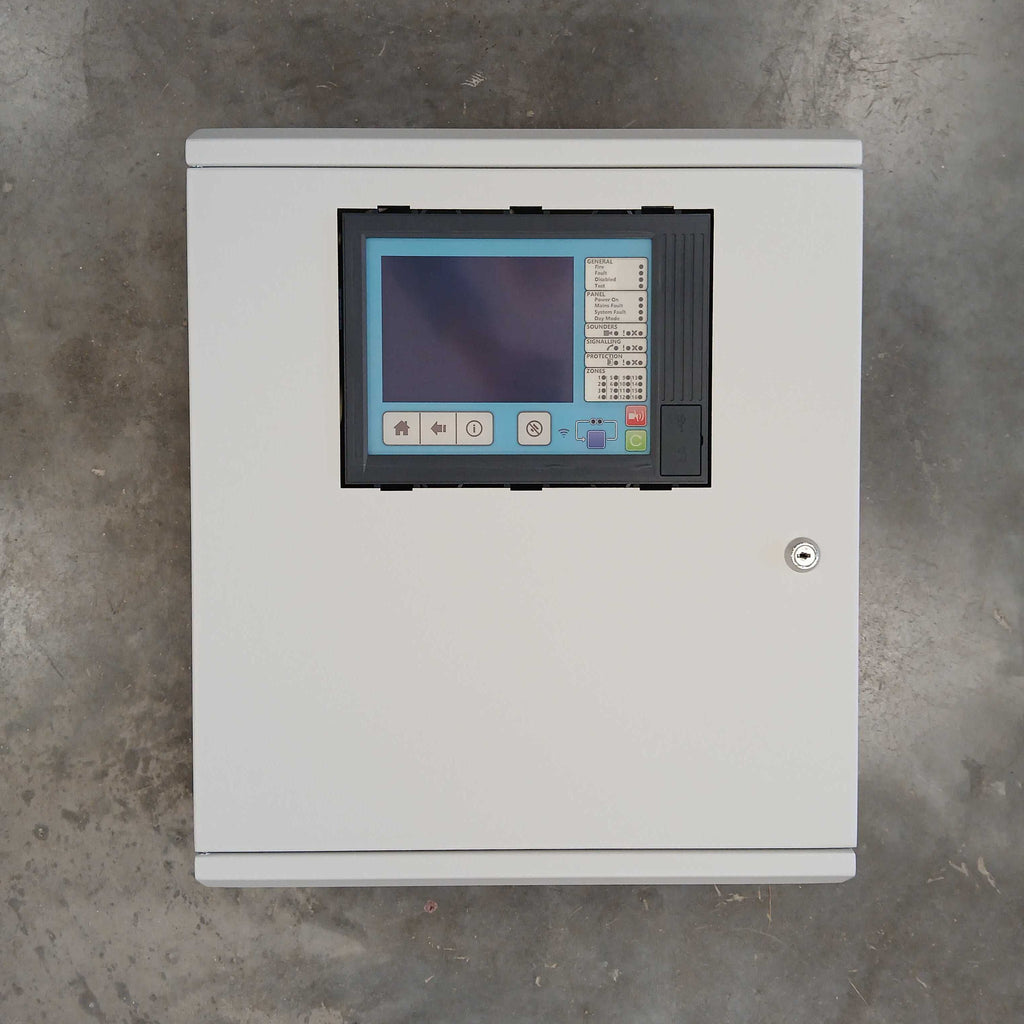

The FireClass FC702S (order number 557.200.949) is a 1-2 loop addressable fire control panel in a compact, shallow enclosure. It has a fully programmable 8.4-inch TFT colour touch-screen user interface with context-sensitive help and on-screen instructions, and it can be used with or without gloves.
The panel supports 250 addresses in total. Its addressable loop can be connected as one high power (HP) loop or as two shared power (SP) loops, so you can give all the power and 250 addresses to one loop or share them across two. FC702S panels can be networked together. The panel is certified to EN 54-2 and EN 54-4.
Key features
- 8.4-inch TFT colour touch-screen, multilingual user interface
- Touch-sensitive status LEDs with instant access to detailed event information
- User-configurable on-screen site maps and programmable graphic quiescent display
- Comprehensive point management and disable functions
- 10,000-event log with dynamic filters
- Keyless log-on using RFID tags that identify and log user actions
- Flexible single or dual hardware loop configuration (1 HP or 2 SP loops)
- Compact shallow housing
Technical specifications
- Order number: 557.200.949 (FC702S)
- Loops: 1 HP or 2 SP; up to 250 addresses per loop, 250 in total
- Zonal LEDs: 16; zones supported: 240
- Dimensions (H x W x D): 480 x 410 x 140 mm
- Weight: 9.7 kg (excluding batteries)
- Battery capacity: 17 Ah
- Supply voltage: 230 V AC 50/60 Hz; input current 1.6 A
- Operating temperature: -5°C to +40°C; storage -20°C to +70°C; 90% RH non-condensing
- IP rating: IP30
- Colour: RAL 7035 back box and door; RAL 7016 user interface surround
- EMC: EN 50130-4, EN 61000-6-3

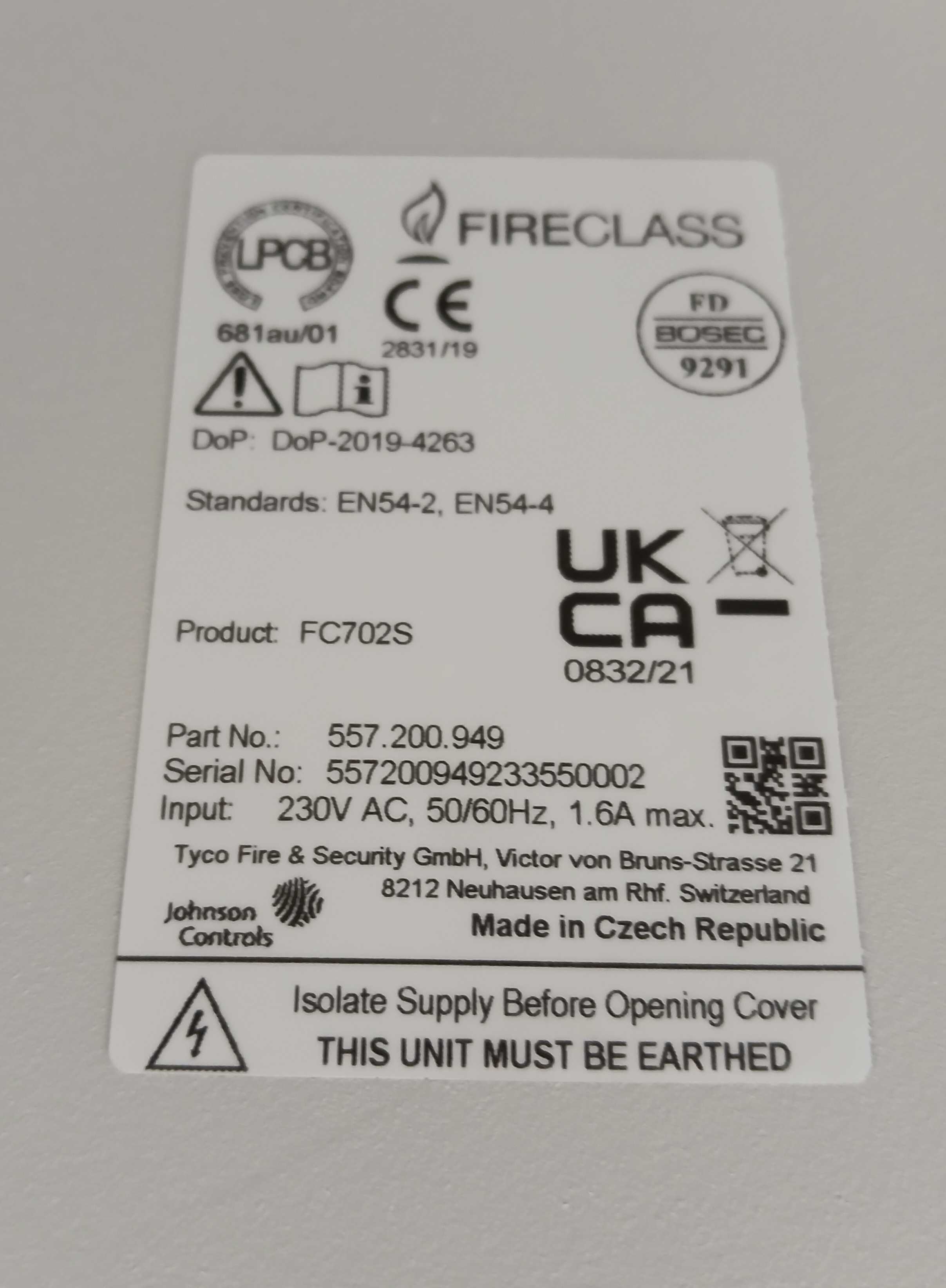

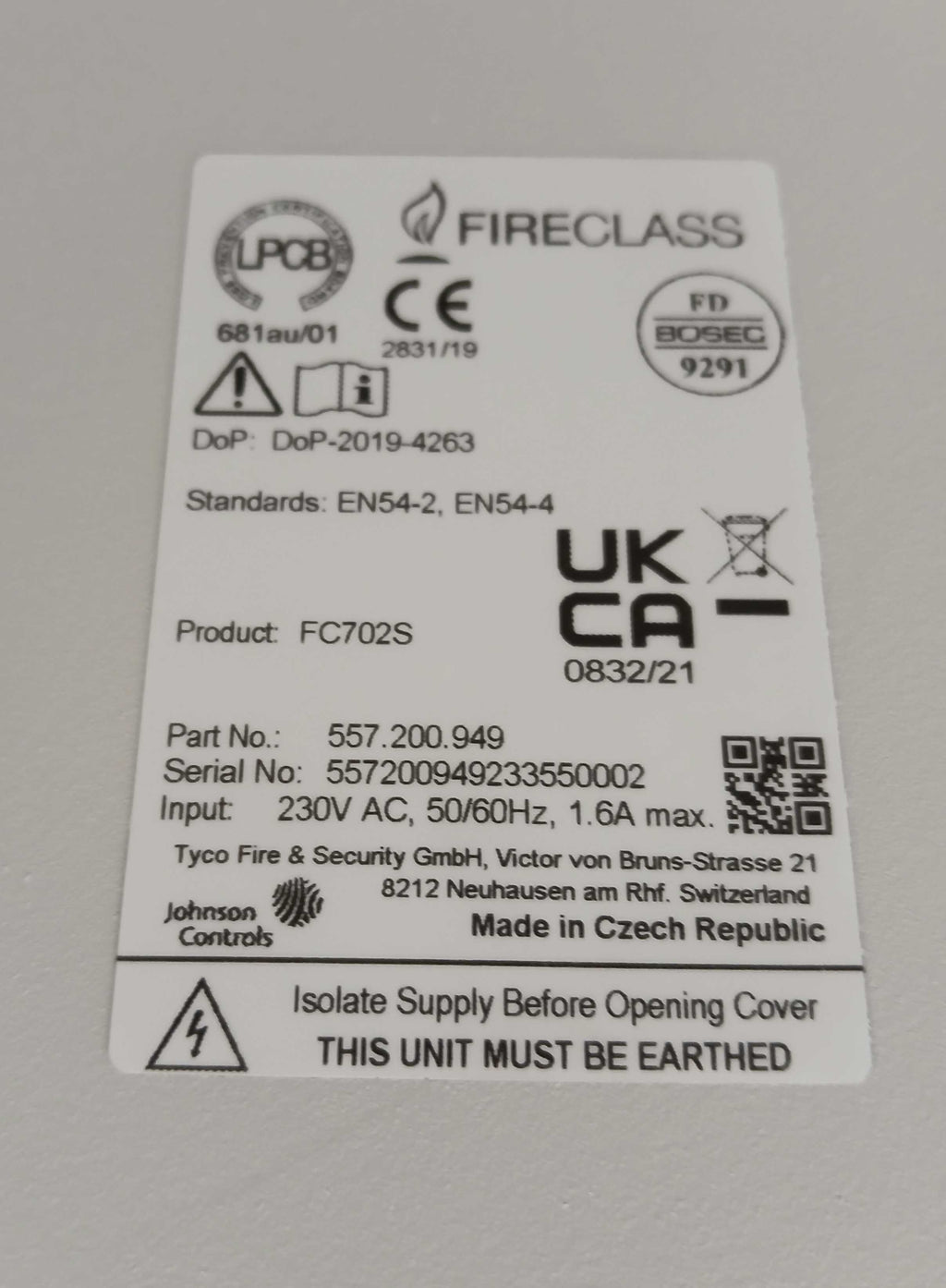

- Approvals: EN 54-2, EN 54-4 (DoP-2018-4263; 2831-CPR-F2668; 0832-UKCA-CPR-F0388)
