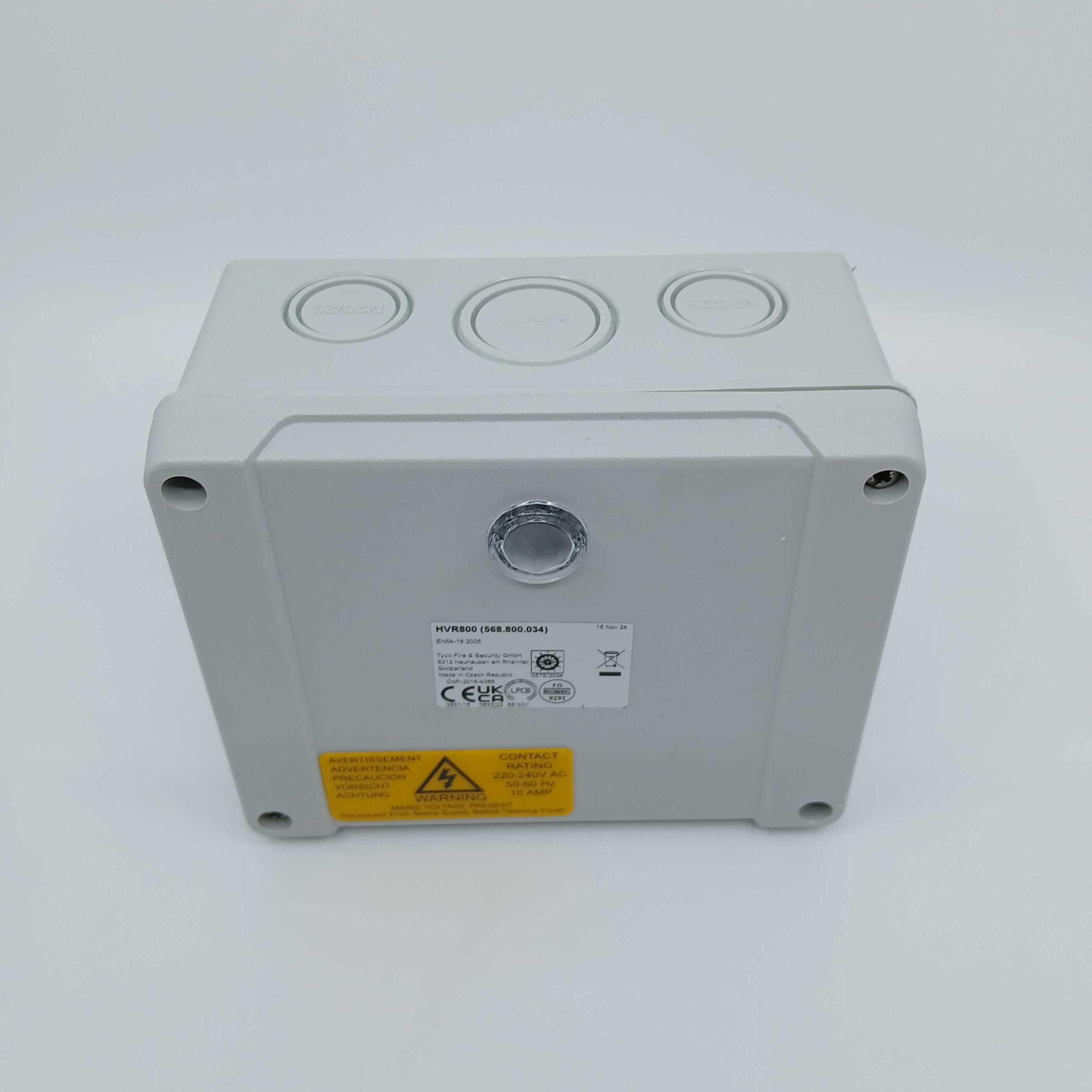

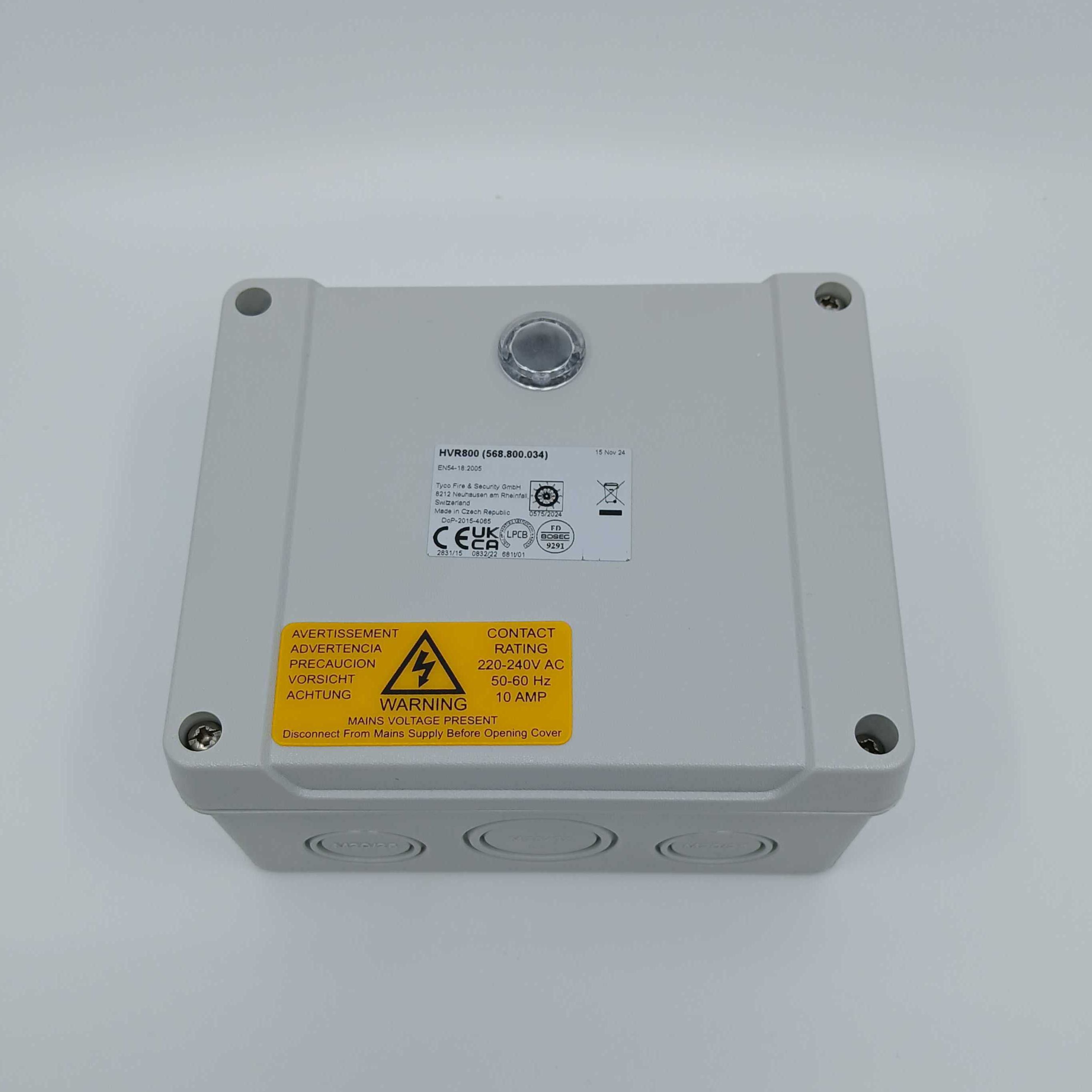

FireClass 568.800.034 HVR800 High Voltage Relay Interface

The FireClass 568.800.034 is the HVR800 High Voltage Relay Interface housed in an IP55 enclosure. The HVR800 is a non-addressable, multi-voltage relay module that operates from 24V DC, 24V AC, 120V AC or 240V AC, and provides a 10A volt-free contact to extend the contact ratings of FireClass addressable relay module applications such as the FC410RIM.

Key features

• Non-addressable, multi-voltage relay: 24V DC, 24V AC, 120V AC or 240V AC operation
• Encapsulated relay providing a 10A volt-free contact
• Extends the contact ratings of FC410RIM addressable relay module applications
• Up to four HVR800s can be individually driven by one FC410MIO multi-input/output module when all are powered at 120V AC or 240V AC
• No external DC power supply needed for AC operation
• For 24V DC switching, an external 24V DC supply is switched through the clean relay contacts of an FC410MIO or FC410RIM

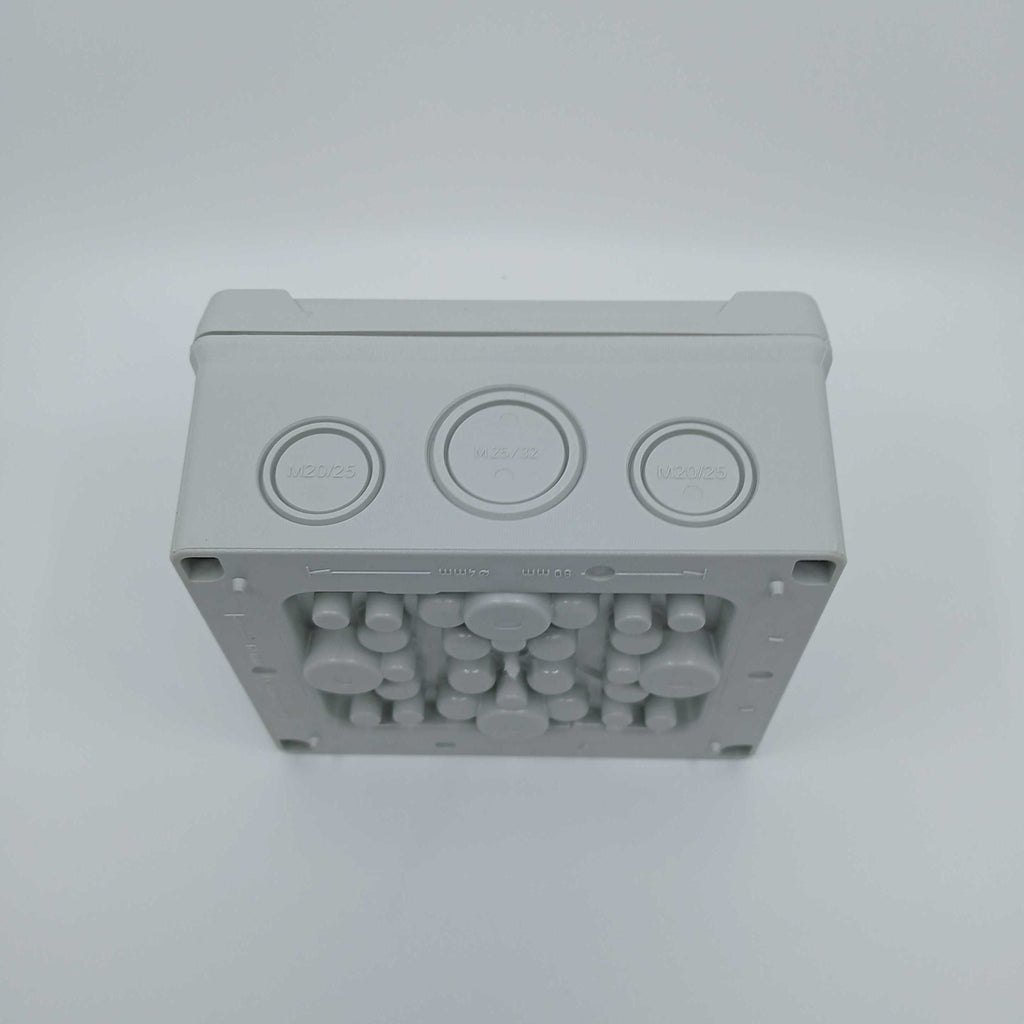

• Housed in an IP55 enclosure

Technical specifications

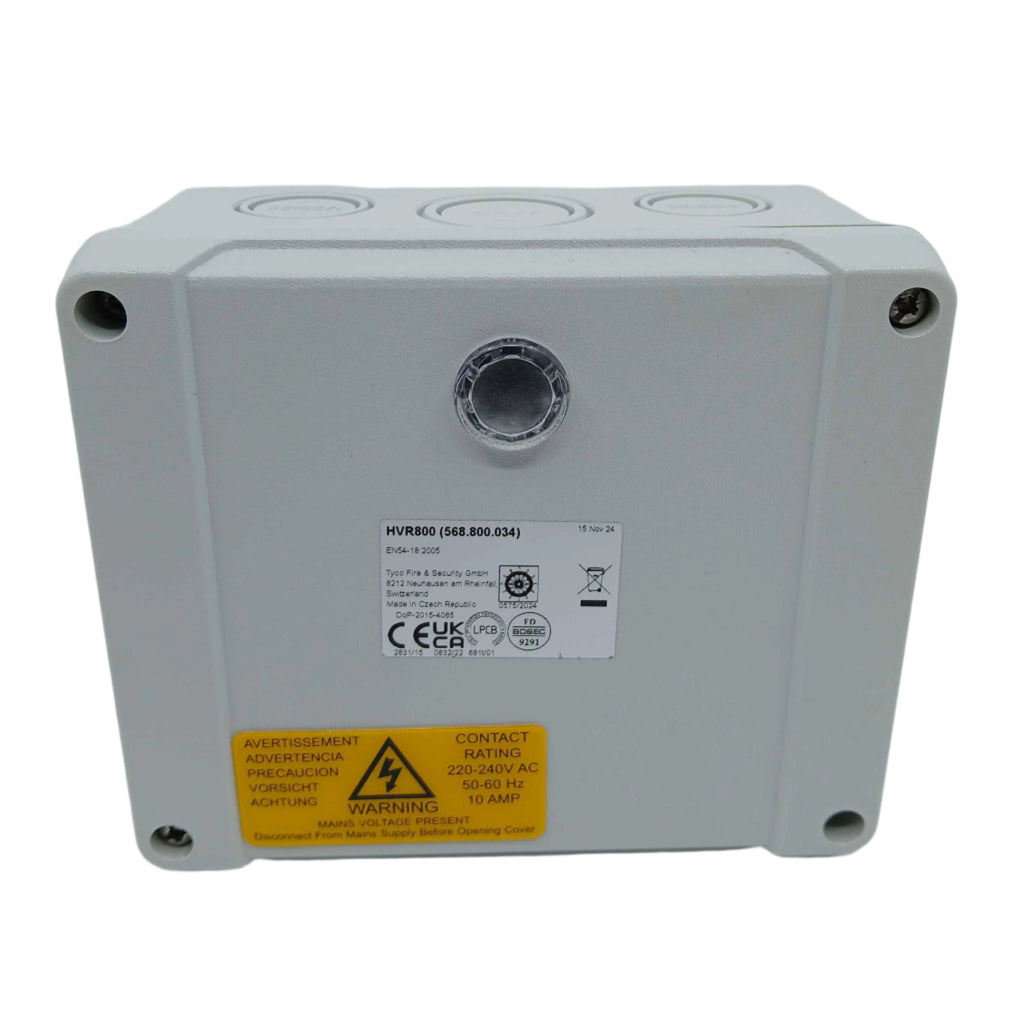

• Part number: 568.800.034 (HVR800 in IP55 enclosure)
• Operating voltages: 24V DC, 24V AC, 120V AC, 240V AC
• Relay contact rating: 10A at 240V AC; 8A at 28V DC
• Operating temperature: -20 to +70°C
• HVR800 module dimensions: 26.5 x 73.6 x 41.5mm (module only, 172g)
• Enclosure: IP55
