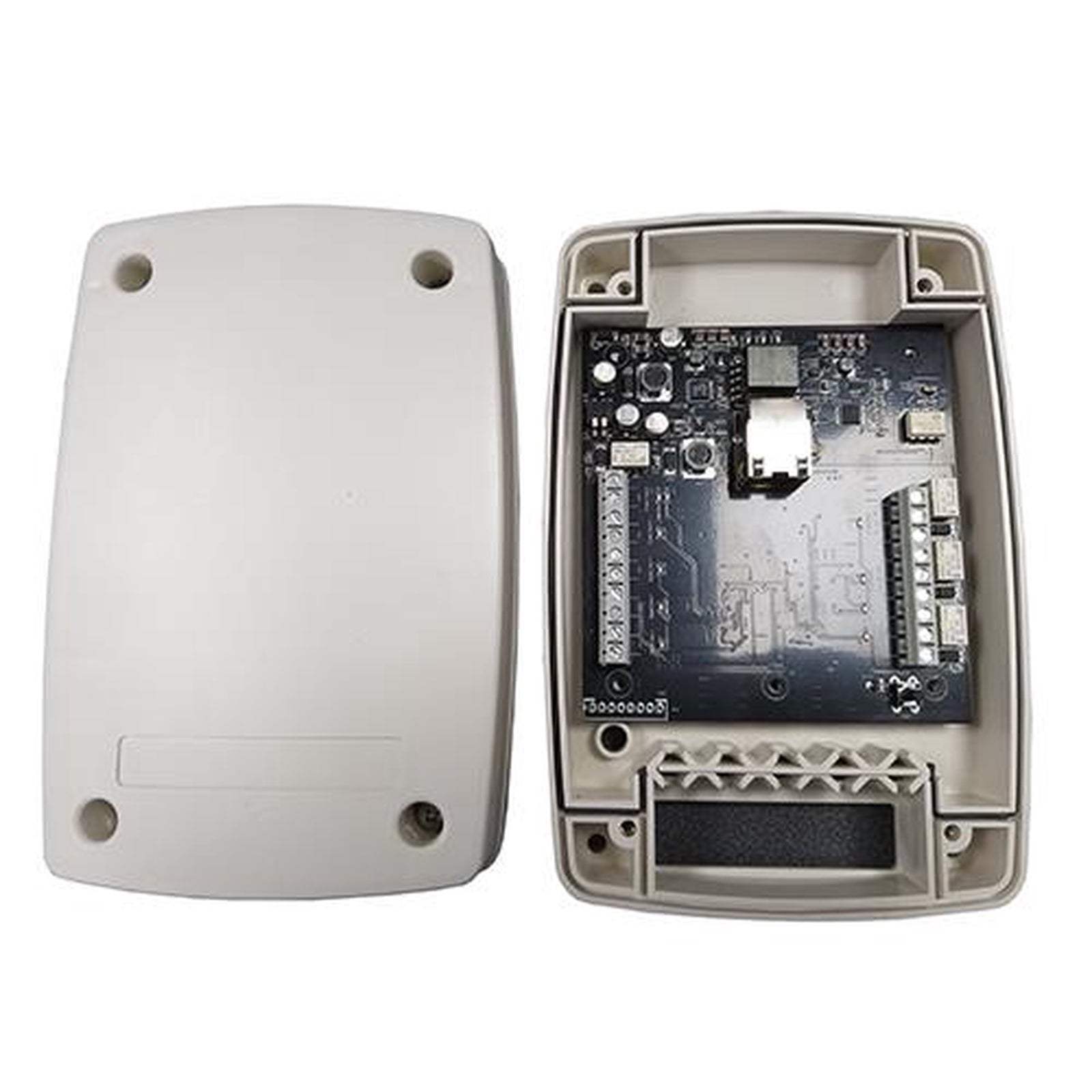

GJD IPAnything ABS - IP Relay Unit

The GJD IPAnything Module ABS (GJD519) is an I/O controller designed for IP surveillance systems. It quickly converts any type of alarm sensor into an IP sensor: each of its four digital alarm inputs can create network alarms directly to a VMS, IP cameras or other network devices, and its network-controlled relay outputs can control connected equipment. It is powered over Ethernet and housed in a compact, heavy-duty waterproof enclosure.

Key features

• Converts input signals to IP alarms
• Integrates alarms with VMS or controls cameras directly
• 4 digital alarm inputs, 1 analogue input and 3 relay outputs
• 12 V / 24 V DC output for powering external units
• Network-controlled relay outputs; user-configurable HTTP web requests
• Intuitive web-based user interface
• Power over Ethernet

Technical specifications

• Product code: GJD519
• Digital inputs: 4, high / low / rising edge / falling edge / frequency counting; max 24 V
• Analogue input: 1 x 4–20 mA or 0–10 V (selected by DIP switch), 12-bit resolution
• Relay outputs: 3, max 30 V, 200 mA, N/C and N/O
• Power output: 1 x 12 V DC max 1 A or 24 V DC max 0.5 A
• Power supply: Power over Ethernet (48 V DC), IEEE 802.3af; max 12 W, PoE class 3
• Interface: Ethernet, TCP/IP, web browser user interface
• Operating temperature: -30°C to +60°C
• Mounting: 4 x M6 (80 x 155 mm), DIN rail or mounting screws
• Enclosure rating: IP66
• Colour: black
• Weight: 0.6 kg
