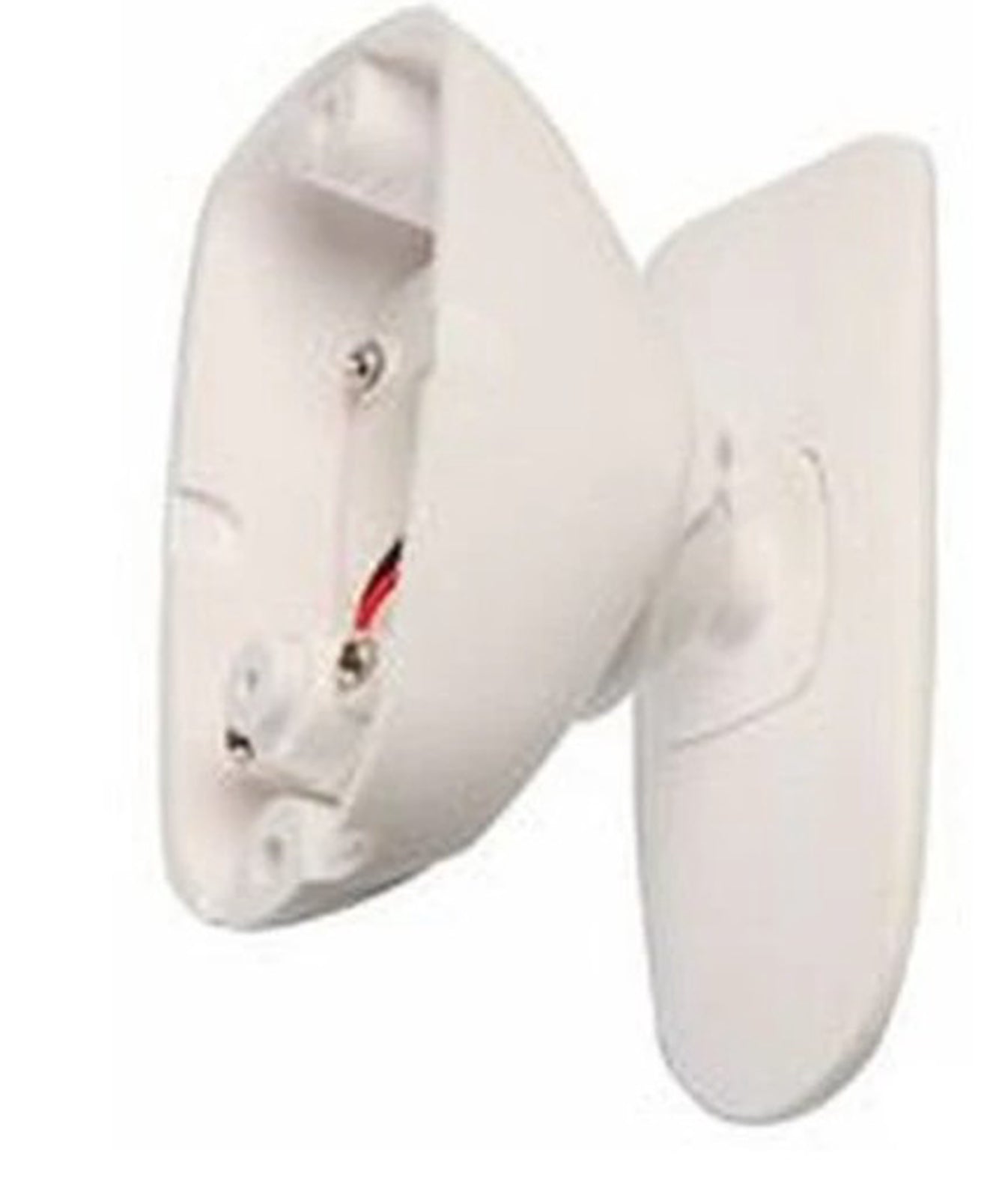

The GJD Pearl swivel bracket (GJD149) is an accessory for the GJD140 Pearl curtain detector. It allows the detector to be fixed at a custom angle for greater choice of installation and coverage: fixed flat to a wall, the detector can pan ±45° and tilt 15° upwards and 45° downwards. Angling the detector downwards allows mounting heights above 2.5 m without compromising detection below (using the two higher range settings).
Key features
- Accessory for the GJD140 Pearl curtain detector
- Pan ±45°, tilt up 15° and down 45°
- Normally closed tamper
- Side and bottom knock-outs for cable access
- Tightened with the supplied M2.5 hex key
Technical specifications
- Part number: GJD149
- Tamper: normally closed, ~1 Ω impedance, max 50 mA
- Dimensions: 54 x 41 x 90 mm (boxed 64 x 44 x 95 mm)
- Weight: 36 g (packed 91 g)
- Mounting height: 2 m+
What's in the box
- 2 x wall mount plugs
- 2 x wall mount screws
- 1 x swivel body
- 1 x swivel plate
- 4 x plastic fixing screws
