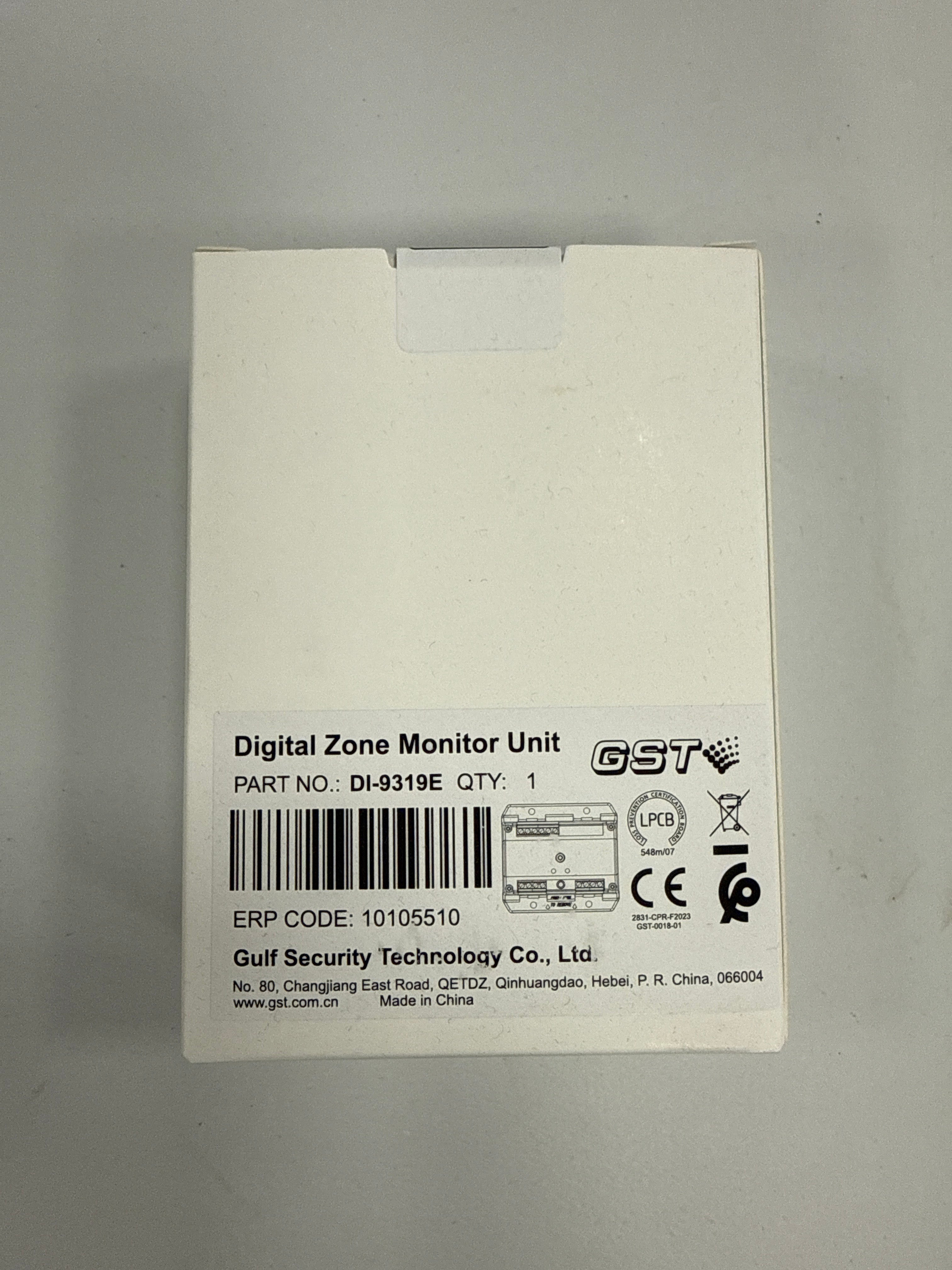

GST DI-9319E Addressable Zone Monitor Unit

The GST DI-9319E is a digital zone monitor unit that connects a zone of conventional detectors and call points into a GST addressable fire alarm system. When a device on the zone signals fire, the unit reports it to the control panel, which shows the module's address. It needs an external 24V DC supply and can also monitor dry contact inputs.

Key features

• Connects up to 30 conventional detectors, manual call points or a combination
• Compatible with GST DC-9101E, DC-9102E and DC-9103E conventional detectors and C-9101 to C-9104 detectors
• Monitors its 24V DC power supply
• Red alarm and yellow fault LEDs
• Relay output (NO or NC) automatically follows the input state
• Electronically addressed with the P-9910B handheld programmer
• Wall or 35mm DIN-rail mounting
• EN 54-18:2005; LPCB certified; WEEE and RoHS compliant
• Compatible with GST-IFP8 and GST200N panels

Technical specifications

• Operating voltage: loop 24V DC (16V to 28V DC); power 24V DC (20V to 28V DC)
• Standby current: 0.38mA (loop), 10mA (power)
• Action current: 0.39mA (loop), 60mA (power)
• Input port voltage: 16.8V to 27.6V DC
• Relay output: 2A at 30V DC, NO or NC
• Address range: 1 to 242
• End-of-line resistor: 4.7k
• Recommended cabling: 1.0mm² or above fire cable
• Operating temperature: -10°C to +55°C; humidity 95% non-condensing
• Protection: IP30
• Dimensions (L x W x H): 85.3 x 78 x 33mm
• Weight: approx. 74.1g
