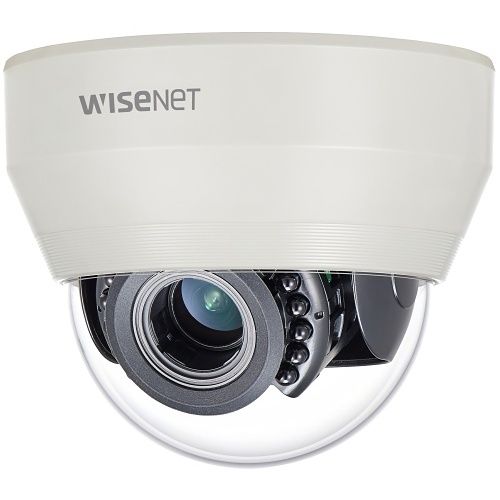

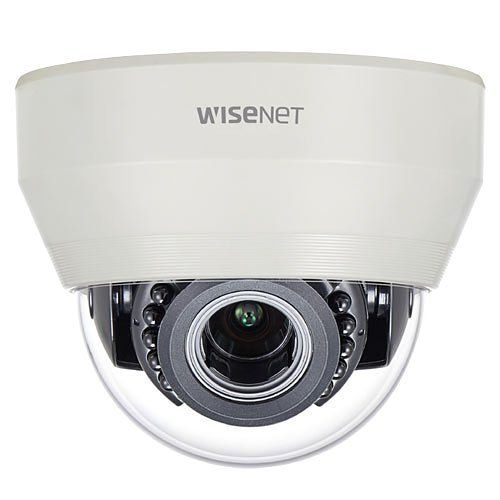

The Hanwha Vision HCD-6070R is a cost-effective analog camera offering high-definition video surveillance. It captures clear 1080p footage in most lighting conditions, with a decent low-light performance of 0.11 Lux. The camera features a varifocal lens that lets you adjust the viewing angle during installation for optimal coverage.
This dome camera is user-friendly and boasts easy installation with plug-and-play functionality. It also offers dual power options for increased flexibility. While lacking the advanced features of newer network cameras, the HCD-6070R is a solid choice for basic security monitoring applications where affordability and ease of use are priorities.
Main Features
Full HD resolution
0.11 Luxat F1.6 (Color), 0 Lux (B/W : IR LED on)
3.2 ~ 10mm (3.1x) V/F lens
Day & Night (ICR), WDR (120dB)
SSNRⅣ, Motion detection
IR viewable length 20m
Transmission distance max.500m
Easy Installation (Plug & play), Dual power
Specifications
Connectivity Technology
Wired
Diameter
119.8mm
Durability
Vandal Resistant; Weather Resistant
Effective Camera Resolution
2MP
Features
Automatic White Balance; Back Light Compensation (BLC); Built-in IR LED; Day/Night; Defog; Digital Noise Reduction; Highlight Compensation (HLC); Motion Detection; Privacy Masking; Wide Dynamic Range
Field of View
Diagonal; Horizontal; Vertical
Focal Length
3.2-10mm
Form Factor
Dome
Height
98.5mm
Image Sensor Type
CMOS
Indoor/Outdoor
Indoor; Outdoor
Ingress Protection Rating
IP66
Input Voltage
12V DC
Lens Type
Varifocal
Limited Warranty
3-Year
Maximum Aperture
f/1.6
Maximum Focal Length
10.0mm
Maximum Resolution
1280 x 720
Maximum Video Resolution
1920 x 1080
Mount Type
Ceiling Mount; Junction Box Mount; Pole Mount; Wall Mount
