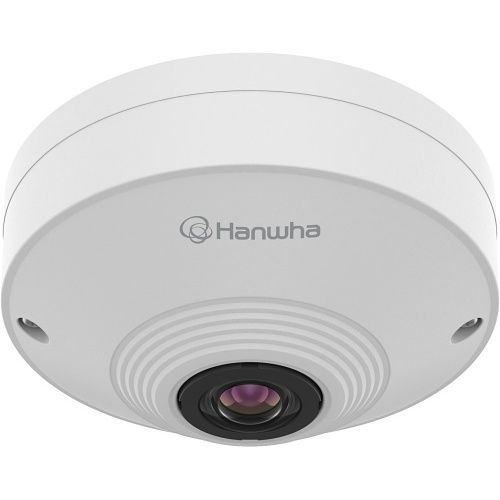

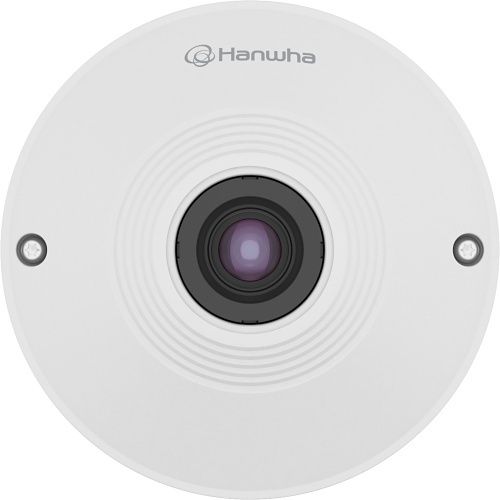

1/1.8-inch 6-megapixel CMOS sensor with maximum resolution 2048 x 2048, H.265/H.264/MJPEG with WiseStream II for limited bandwidth usage, various images: fisheye, single or double panorama and quadruple image, integrated video analysis: thermal mapping and people counting, video motion detection 8 polygonal zones, defocus and tamper detection, privacy masking 6 zones, light sensitivity 0.2 lux in color (SDN), 1.14 mm lens, optional SD card slot (HC/XC) (up to 256 GB max.), PoE (4.6 watts), diameter 99 mm
Main Features
Original fisheye view, onboard dewarding to Single panorama, Double panorama, Quad view
Specifications
Connectivity Technology
Wired
Diameter
99.00mm
Effective Camera Resolution
6MP
Features
Alarm Triggering; Auto Gain Control; Automatic White Balance; Back Light Compensation (BLC); Digital Noise Reduction; Highlight Compensation (HLC); Motion Detection; Privacy Masking; SD Card Local Storage; Tamper Detection; Wide Dynamic Range
Field of View
Diagonal; Horizontal; Vertical
Focal Length
1.14mm
Form Factor
Fisheye
Image Sensor Type
CMOS
Indoor/Outdoor
Indoor
Ingress Protection Rating
IP42
Lens Type
Fixed
Limited Warranty
5-Year
Maximum Aperture
f/2.5
Maximum Focal Length
1.14mm
Maximum Resolution
1280 x 720
Mount Type
Corner Mount; Flush Mount; In-ceiling Mount; Junction Box Mount; Parapet Mount; Pendant Mount; Pole Mount; Wall Mount
