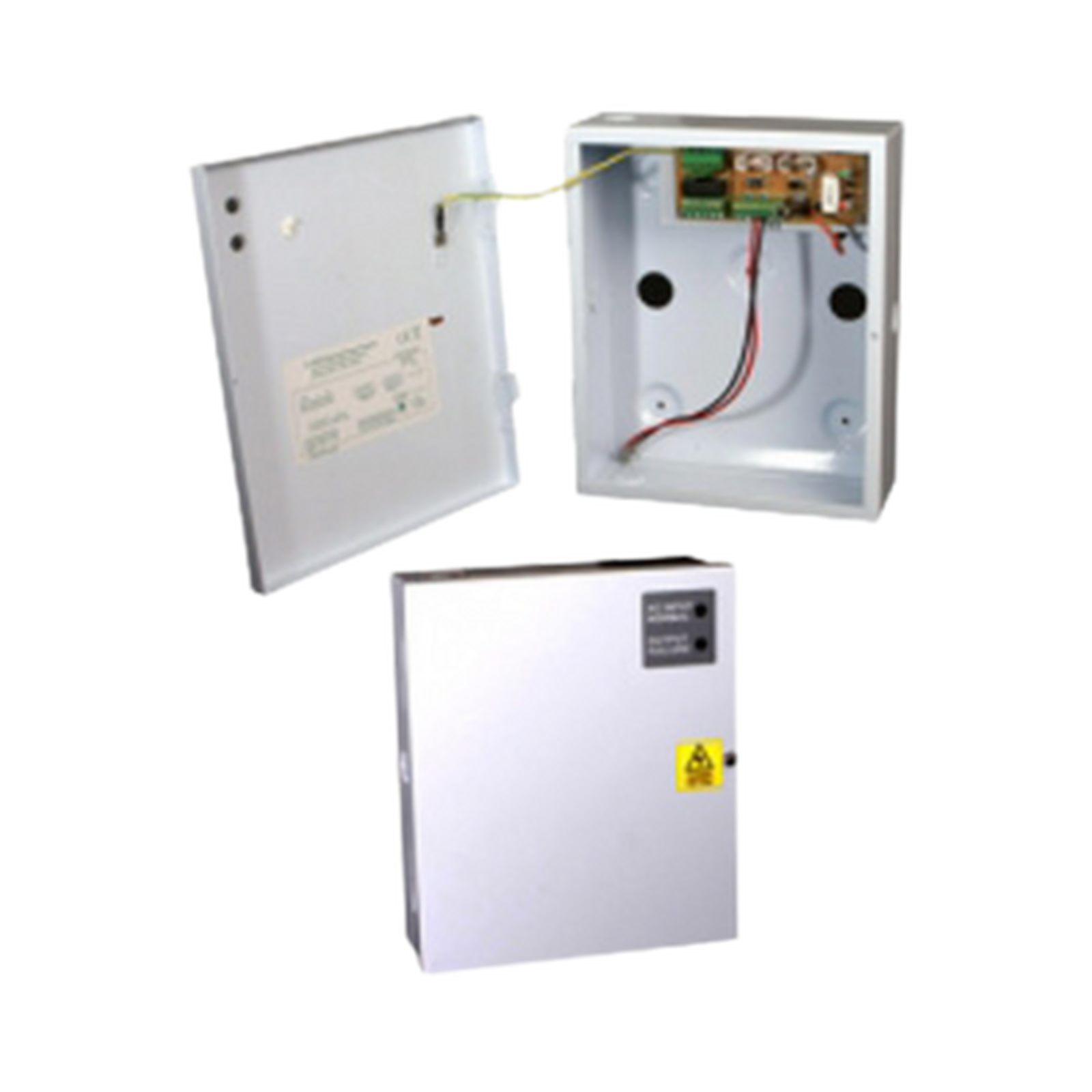

Haydon 12V 2A Single Output Switch Mode Boxed PSU
£34.15
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Up to 2A to the load, plus up to 0.5A to charge the standby battery
- Universal 90–264V AC mains input
- Electronic short circuit and overload protection on the load output (under mains power)
- Mains transient protection
- Installer-safe design with high-voltage electronics fully shrouded
- Lid-open and rear (removal) tamper detection
Frequently bought together
Haydon
Haydon HAY-PSUINLINE3.5A 12V 3.5A Inline PSU with 3.6m Lead & UK Plug
Sale price£12.40
In stock
Haydon
Haydon 12V 3A Single Output Switch Mode Boxed PSU Large Box
Sale price£47.05
Out of stock. Lead time 2 to 6 weeks, estimate only
Haydon
Haydon 12V 5A Access Control PSU Houses 2xPaxton NET2 Controllers as Standard
Sale price£83.20
Out of stock. Lead time 2 to 6 weeks, estimate only
Product details
The Haydon HAY-PSU12V2ABB is a 12V 2A switch mode boxed power supply with a 13.8V charging circuit for a 7Ah standby battery.
The Haydon HAY-PSU12V2ABB is a 2A 12V DC switch mode power supply in a small hinged box, with a 13.8V charging circuit for a 7Ah standby battery. It is a high-efficiency, cost-effective PSU designed for intruder alarm, access control and general security applications.
Key features
- Up to 2A to the load, plus up to 0.5A to charge the standby battery
- Universal 90–264V AC mains input
- Electronic short circuit and overload protection on the load output (under mains power)
- Mains transient protection
- Installer-safe design with high-voltage electronics fully shrouded
- Lid-open and rear (removal) tamper detection
- Green mains-present LED and red fault LED
- Houses one 12V 7Ah lead acid battery (not included)
Technical specifications
- Model: HAY-PSU12V2ABB
- Mains input: 90–264V AC, 50–60Hz
- Mains input fuse: 3.0A 250V
- Output voltage: 13.4–14.2V DC (13.8V nominal) on mains; 10.0–12.3V DC on battery standby
- Maximum load current: 2.0A
- Ripple: 150mV pk-pk max.
- Load output fuse: 2A
- Standby battery: 12V lead acid, 7Ah
- Battery charging fuse: 2.0A
- Tamper output: Lid and rear tamper, N/O volt-free contact
- Box size (W × H × D): 200 × 240 × 75 mm, removable hinged lid
- Working temperature: −10°C to +40°C
- Humidity: 95% RH non-condensing
Battery not included.
Frequently asked questions
Is a battery included?
No. The box houses one 12V 7Ah lead acid battery, not included.
What is the output voltage?
13.8V nominal (13.4-14.2V DC) on mains; 10.0-12.3V DC on battery standby.
What size is the box?
200 x 240 x 75mm (W x H x D) with a removable hinged lid.
